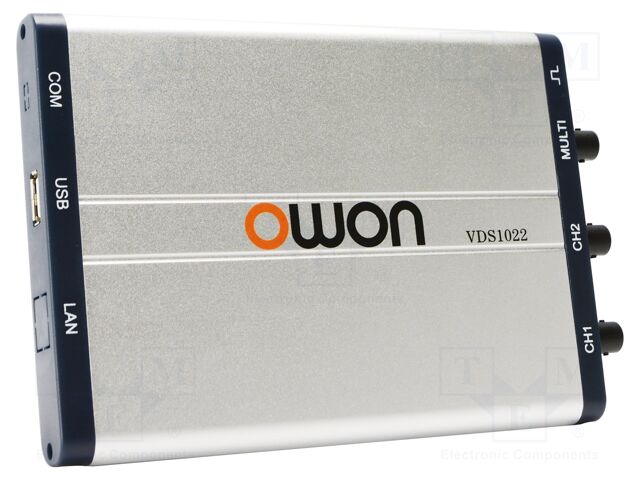

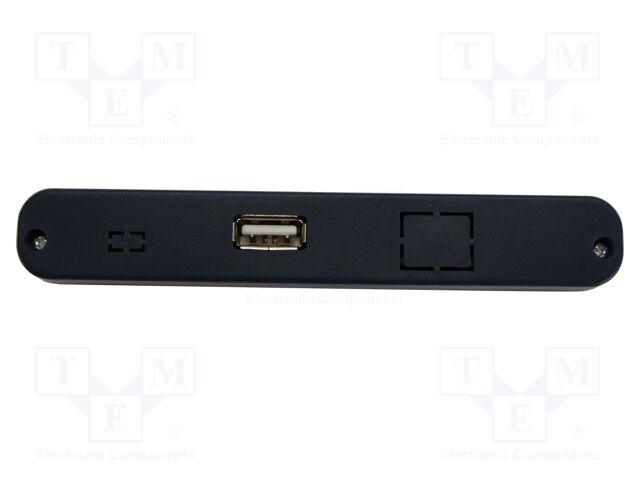

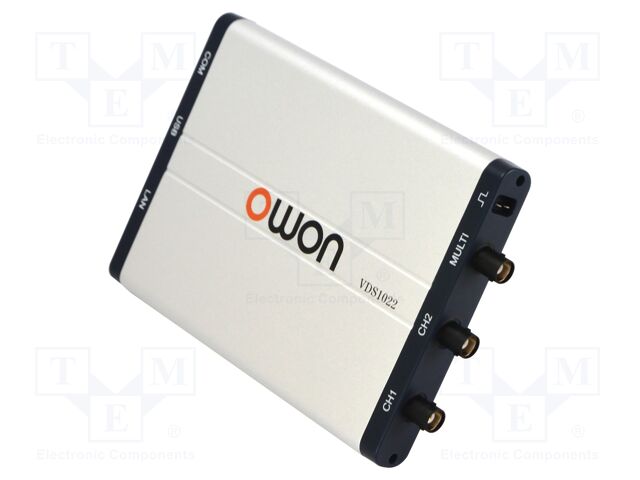

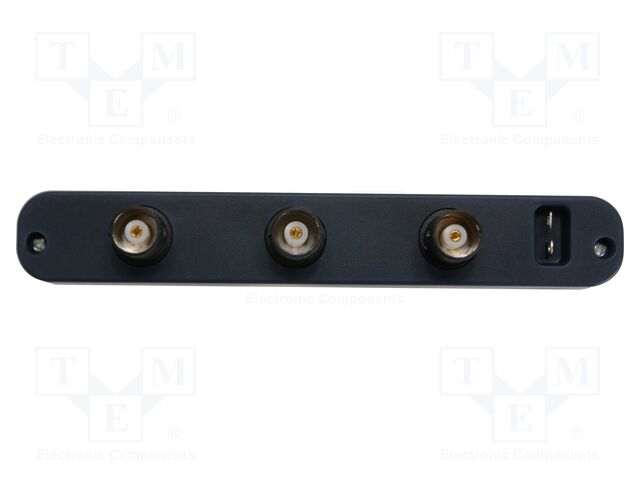

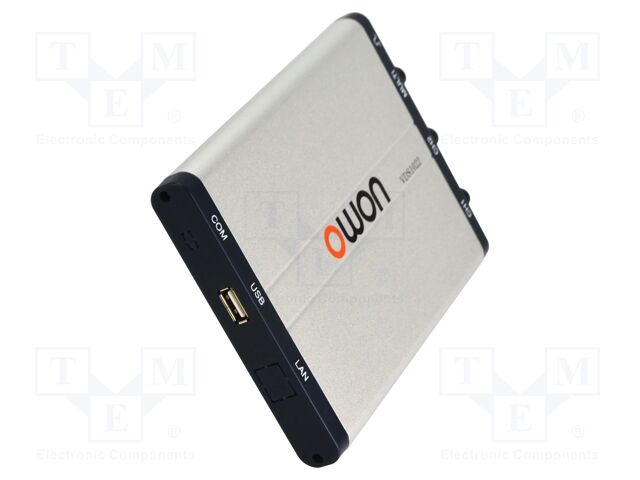

VDS1022 OWON
Виробник: OWON
Category: PC connected oscilloscopes
Description: PC connected oscilloscope; 25MHz; Ch: 2; 5kpts; 100Msps; 40V; 8bit
Standard equipment: case; mains cable; power supply; probe adjust; test probe x2; USB cable; user's manual
Measuring instrument features: mathematical functions: addition, subtraction, division, multiplication and FFT
Trigger modes: automatic; normal; single
Support: SCPI
Trigger: alternate; falling-edge; pulse; rising-edge; slope; video signal
Interface: USB 2.0
Rise time: ≤14ns
Input coupling: AC, DC, GND
Input sensitivity: 5mV/div...5V/div
Dimensions: 170x120x18mm
Number of channels: 2
Sampling: 100Msps
Supply voltage: 5V DC
Vertical resolution: 8bit
Max. input voltage: 40V
Memory record length: 5kpts
Input impedance: 1MΩ/10pF
Type of oscilloscope: PC connected oscilloscope
Band: 25MHz
Відгуки про товар
Написати відгук
Технічний опис VDS1022 OWON
Category: PC connected oscilloscopes, Description: PC connected oscilloscope; 25MHz; Ch: 2; 5kpts; 100Msps; 40V; 8bit, Standard equipment: case; mains cable; power supply; probe adjust; test probe x2; USB cable; user's manual, Measuring instrument features: mathematical functions: addition, subtraction, division, multiplication and FFT, Trigger modes: automatic; normal; single, Support: SCPI, Trigger: alternate; falling-edge; pulse; rising-edge; slope; video signal, Interface: USB 2.0, Rise time: ≤14ns, Input coupling: AC, DC, GND, Input sensitivity: 5mV/div...5V/div, Dimensions: 170x120x18mm, Number of channels: 2, Sampling: 100Msps, Supply voltage: 5V DC, Vertical resolution: 8bit, Max. input voltage: 40V, Memory record length: 5kpts, Input impedance: 1MΩ/10pF, Type of oscilloscope: PC connected oscilloscope, Band: 25MHz.
Інші пропозиції VDS1022 за ціною від 8569.32 грн до 8569.32 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||
|---|---|---|---|---|---|---|---|---|---|
 |
VDS1022 | Виробник : Owon Technology Lilliput Electronics (USA) Inc |
Description: O-SCOPE 25MHZ 2 CH 100MS/S Packaging: Box Function: Record Memory Size: 5kpts Interface: USB Type: Handheld Sampling Rate (Per Second): 100M Voltage - Input (Max): 40V Channels: 2 Input Impedance: 1M - 10pF Probe Type: Passive 10:1 (2) Part Status: Active Bandwidth: 25 MHz Rise Time (Typ): 14 ns |
на замовлення 92 шт: термін постачання 21-31 дні (днів) |
|
