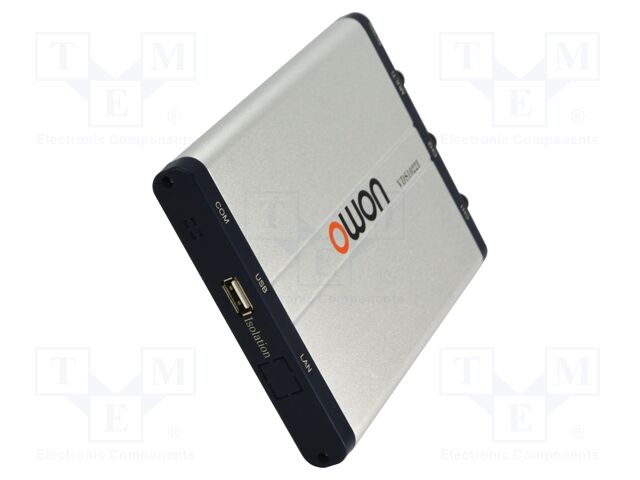

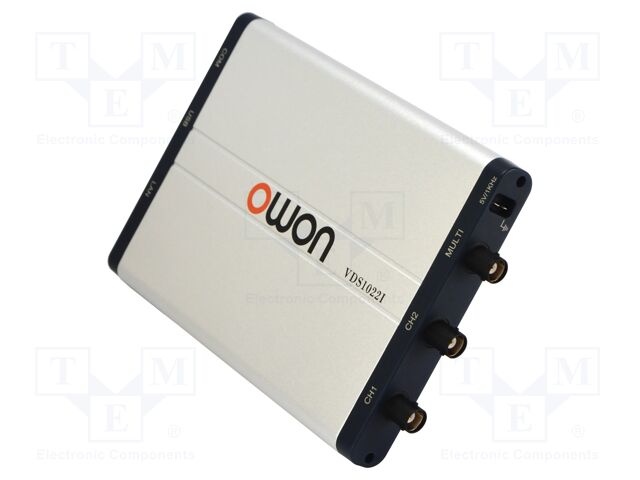

VDS1022I OWON
Виробник: OWONCategory: PC connected oscilloscopes
Description: PC connected oscilloscope; 25MHz; Ch: 2; 5kpts; 100Msps; 400V; 8bit
Type of oscilloscope: PC connected oscilloscope
Band: 25MHz
Number of channels: 2
Memory record length: 5kpts
Sampling: 100Msps
Max. input voltage: 400V
Trigger: alternate; falling-edge; pulse; rising-edge; slope; video signal
Trigger modes: automatic; normal; single
Input coupling: AC, DC, GND
Vertical resolution: 8bit
Dimensions: 170x120x18mm
Standard equipment: case; mains cable; power supply; probe adjust; test probe x2; USB cable; user's manual
Interface: USB 2.0
Input impedance: 1MΩ/10pF
Rise time: ≤14ns
Input sensitivity: 5mV/div...5V/div
Measuring instrument features: mathematical functions: addition, subtraction, division, multiplication and FFT
Supply voltage: 5V DC
Support: SCPI
на замовлення 4 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 8197.91 грн |
| 3+ | 7598.09 грн |
Відгуки про товар
Написати відгук
Технічний опис VDS1022I OWON
Category: PC connected oscilloscopes, Description: PC connected oscilloscope; 25MHz; Ch: 2; 5kpts; 100Msps; 400V; 8bit, Type of oscilloscope: PC connected oscilloscope, Band: 25MHz, Number of channels: 2, Memory record length: 5kpts, Sampling: 100Msps, Max. input voltage: 400V, Trigger: alternate; falling-edge; pulse; rising-edge; slope; video signal, Trigger modes: automatic; normal; single, Input coupling: AC, DC, GND, Vertical resolution: 8bit, Dimensions: 170x120x18mm, Standard equipment: case; mains cable; power supply; probe adjust; test probe x2; USB cable; user's manual, Interface: USB 2.0, Input impedance: 1MΩ/10pF, Rise time: ≤14ns, Input sensitivity: 5mV/div...5V/div, Measuring instrument features: mathematical functions: addition, subtraction, division, multiplication and FFT, Supply voltage: 5V DC, Support: SCPI, кількість в упаковці: 1 шт.
Інші пропозиції VDS1022I за ціною від 9468.39 грн до 9837.49 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
+2 |
VDS1022I | Виробник : OWON |
Category: PC connected oscilloscopes Description: PC connected oscilloscope; 25MHz; Ch: 2; 5kpts; 100Msps; 400V; 8bit Type of oscilloscope: PC connected oscilloscope Band: 25MHz Number of channels: 2 Memory record length: 5kpts Sampling: 100Msps Max. input voltage: 400V Trigger: alternate; falling-edge; pulse; rising-edge; slope; video signal Trigger modes: automatic; normal; single Input coupling: AC, DC, GND Vertical resolution: 8bit Dimensions: 170x120x18mm Standard equipment: case; mains cable; power supply; probe adjust; test probe x2; USB cable; user's manual Interface: USB 2.0 Input impedance: 1MΩ/10pF Rise time: ≤14ns Input sensitivity: 5mV/div...5V/div Measuring instrument features: mathematical functions: addition, subtraction, division, multiplication and FFT Supply voltage: 5V DC Support: SCPI кількість в упаковці: 1 шт |
на замовлення 4 шт: термін постачання 14-21 дні (днів) |
|
||||||
 |
VDS1022I | Виробник : Owon Technology Lilliput Electronics (USA) Inc |
Description: O-SCOPE 25MHZ 2 CH 100MS/S Packaging: Box Function: Record Memory Size: 5kpts Interface: USB Type: Handheld Sampling Rate (Per Second): 100M Voltage - Input (Max): 400V Channels: 2 Input Impedance: 1M - 10pF Probe Type: Passive 10:1 (2) Part Status: Active Bandwidth: 25 MHz Rise Time (Typ): 14 ns |
на замовлення 87 шт: термін постачання 21-31 дні (днів) |
|
