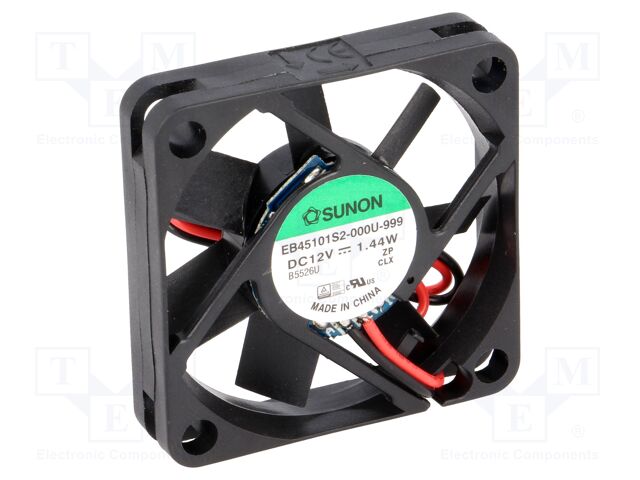

Технічний опис EB45101S2-000U-999 Sunon
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 45x45x10mm; 15.6m3/h; 27dBA; slide; 3.04mmH2O, Operating temperature: -10...70°C, Supply voltage: 12V DC, Flammability rating: UL94V-0, Current rating: 0.12A, Static pressure: 3.04mm H2O, Fan efficiency: 15.6m3/h, Rotational rate/speed: 5000 (±15%)rpm, Enclosure material: thermoplastic, Kind of Bearing: slide, Fan motor: brushless DC, Leads: leads x2, Current and power consumption tolerance: ±15%, Fan dimensions: 45x45x10mm, Min. insulation resistance: 500MΩ, Power consumption: 1.44W, Impeller material: thermoplastic, Type of fan: DC, Noise level: 27dBA, Additional functions: autorestart, Lead length: 0.3m, Operating voltage: 4.5...13.8V DC, Kind of fan: axial, Wire size: 26AWG, Insulation class: A.
Інші пропозиції EB45101S2-000U-999 за ціною від 115.15 грн до 162.93 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EB45101S2-000U-999 | SUNON |
Category: DC12V FansDescription: Fan: DC; axial; 12VDC; 45x45x10mm; 15.6m3/h; 27dBA; slide; 3.04mmH2O Operating temperature: -10...70°C Supply voltage: 12V DC Flammability rating: UL94V-0 Current rating: 0.12A Static pressure: 3.04mm H2O Fan efficiency: 15.6m3/h Rotational rate/speed: 5000 (±15%)rpm Enclosure material: thermoplastic Kind of Bearing: slide Fan motor: brushless DC Leads: leads x2 Current and power consumption tolerance: ±15% Fan dimensions: 45x45x10mm Min. insulation resistance: 500MΩ Power consumption: 1.44W Impeller material: thermoplastic Type of fan: DC Noise level: 27dBA Additional functions: autorestart Lead length: 0.3m Operating voltage: 4.5...13.8V DC Kind of fan: axial Wire size: 26AWG Insulation class: A |
на замовлення 2661 шт: термін постачання 14-30 дні (днів) |
|
| EB45101S2-000U-999 |
|
Виробник: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 45x45x10mm; 15.6m3/h; 27dBA; slide; 3.04mmH2O
Operating temperature: -10...70°C
Supply voltage: 12V DC
Flammability rating: UL94V-0
Current rating: 0.12A
Static pressure: 3.04mm H2O
Fan efficiency: 15.6m3/h
Rotational rate/speed: 5000 (±15%)rpm
Enclosure material: thermoplastic
Kind of Bearing: slide
Fan motor: brushless DC
Leads: leads x2
Current and power consumption tolerance: ±15%
Fan dimensions: 45x45x10mm
Min. insulation resistance: 500MΩ
Power consumption: 1.44W
Impeller material: thermoplastic
Type of fan: DC
Noise level: 27dBA
Additional functions: autorestart
Lead length: 0.3m
Operating voltage: 4.5...13.8V DC
Kind of fan: axial
Wire size: 26AWG
Insulation class: A
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 45x45x10mm; 15.6m3/h; 27dBA; slide; 3.04mmH2O
Operating temperature: -10...70°C
Supply voltage: 12V DC
Flammability rating: UL94V-0
Current rating: 0.12A
Static pressure: 3.04mm H2O
Fan efficiency: 15.6m3/h
Rotational rate/speed: 5000 (±15%)rpm
Enclosure material: thermoplastic
Kind of Bearing: slide
Fan motor: brushless DC
Leads: leads x2
Current and power consumption tolerance: ±15%
Fan dimensions: 45x45x10mm
Min. insulation resistance: 500MΩ
Power consumption: 1.44W
Impeller material: thermoplastic
Type of fan: DC
Noise level: 27dBA
Additional functions: autorestart
Lead length: 0.3m
Operating voltage: 4.5...13.8V DC
Kind of fan: axial
Wire size: 26AWG
Insulation class: A
на замовлення 2661 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна без ПДВ |
|---|---|
| 3+ | 162.93 грн |
| 10+ | 136.16 грн |
| 50+ | 121.03 грн |
| 200+ | 115.15 грн |
