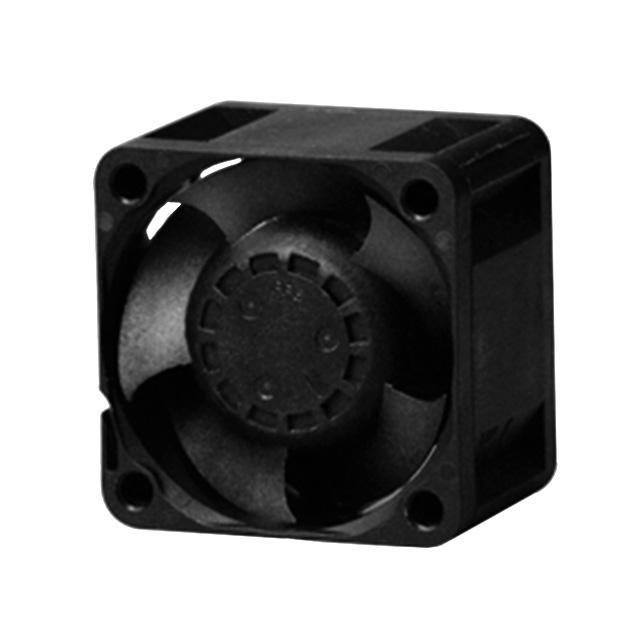

VF40281B1-000U-A9H Sunon Fans
Виробник: Sunon FansDescription: FAN AXIAL 40X28MM 12VDC WIRE
Features: Auto Restart
Packaging: Bulk
Voltage - Rated: 12VDC
Size / Dimension: Square - 40mm L x 40mm H
Bearing Type: Ball
RPM: 21600 RPM
Air Flow: 25.6 CFM (0.717m³/min)
Width: 28.00mm
Weight: 0.102 lb (46.27 g)
Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
Termination: 2 Wire Leads
Approval Agency: CE, CUR, TUV, UL
Fan Type: Tubeaxial
Noise: 58.6dB(A)
Static Pressure: 2.770 in H2O (690.0 Pa)
Power (Watts): 7.56 W
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис VF40281B1-000U-A9H Sunon Fans
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 40x40x28mm; 43.49m3/h; 63.5dBA; ball; 28AWG, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 6...13.2V DC, Fan dimensions: 40x40x28mm, Power consumption: 9.08W, Current rating: 756mA, Fan efficiency: 43.49m3/h, Noise level: 63.5dBA, Kind of Bearing: ball, Rotational rate/speed: 21600 (±10%)rpm, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x2, Operating temperature: -10...70°C, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 70.36mm H2O, Wire size: 28AWG.
Інші пропозиції VF40281B1-000U-A9H
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
 |
VF40281B1-000U-A9H | Виробник : Sunon |
DC Fans Axial Fan, 40x40x28mm, 12VDC, 2.77"H2O, Auto Restart, Low Vibration/High Airflow |
товару немає в наявності |
|
| VF40281B1-000U-A9H | Виробник : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 40x40x28mm; 43.49m3/h; 63.5dBA; ball; 28AWG Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 6...13.2V DC Fan dimensions: 40x40x28mm Power consumption: 9.08W Current rating: 756mA Fan efficiency: 43.49m3/h Noise level: 63.5dBA Kind of Bearing: ball Rotational rate/speed: 21600 (±10%)rpm Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x2 Operating temperature: -10...70°C Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 70.36mm H2O Wire size: 28AWG |
товару немає в наявності |
