Продукція > TOSHIBA > VFNC3S-2015PL

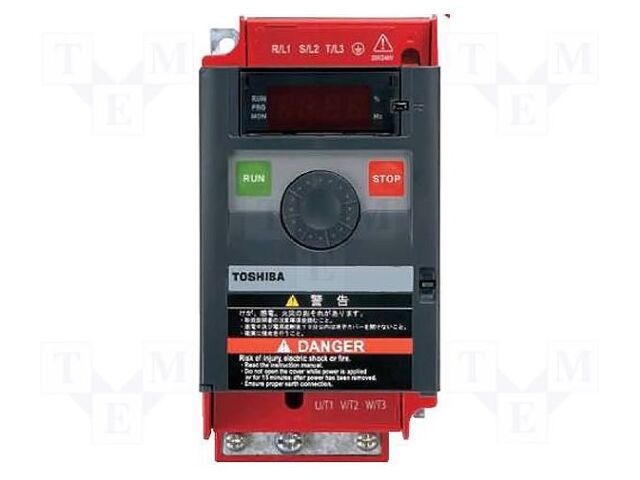

VFNC3S-2015PL

VFNC3S-2015PL TOSHIBA

pVersion=0046&contRep=ZT&docId=E1C0534B0EDCCCF1A6F5005056AB5A8F&compId=nc3_brozura.pdf?ci_sign=1dad63bf8589865a789cb6b12d63e9c599241082 Виробник: TOSHIBA
Category: One Phase Inverters
Description: Inverter; Max motor power: 1.5kW; Usup: 200÷240VAC; Display: LED
Max motor power: 1.5kW
Electrical connection: screw terminals
Body dimensions: 105x130x156mm
Type of module: Inverter
The programming method: keypad and potentiometer
Additional functions: dynamic braking control; locked by password; PID regulator; programmable relay NO output; PWM; RS485/422 (max 115kB/s)
Protection: anti-overvoltage OVP; maxiumum frequency overrun
Inverter output voltage: 3 x 230V AC
Manufacturer series: VFNC3S
Current output: 4...20mA
Voltage output: 0...10V
Kind of display used: LED
Input 1 properties: 2 inputs for setting motor rotational speed by signals 0...10V, 4...20mA, 0...20mA or by means of the external potentiometer
Supply voltage: 200...240V AC
на замовлення 5 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
1+24563.88 грн
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис VFNC3S-2015PL TOSHIBA

Category: One Phase Inverters, Description: Inverter; Max motor power: 1.5kW; Usup: 200÷240VAC; Display: LED, Max motor power: 1.5kW, Electrical connection: screw terminals, Body dimensions: 105x130x156mm, Type of module: Inverter, The programming method: keypad and potentiometer, Additional functions: dynamic braking control; locked by password; PID regulator; programmable relay NO output; PWM; RS485/422 (max 115kB/s), Protection: anti-overvoltage OVP; maxiumum frequency overrun, Inverter output voltage: 3 x 230V AC, Manufacturer series: VFNC3S, Current output: 4...20mA, Voltage output: 0...10V, Kind of display used: LED, Input 1 properties: 2 inputs for setting motor rotational speed by signals 0...10V, 4...20mA, 0...20mA or by means of the external potentiometer, Supply voltage: 200...240V AC.
