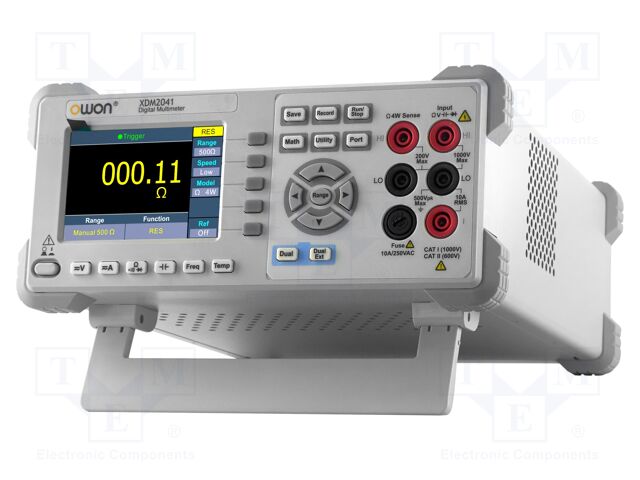

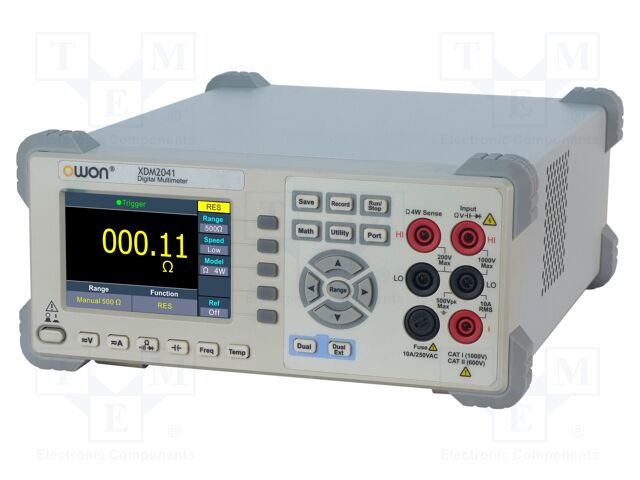

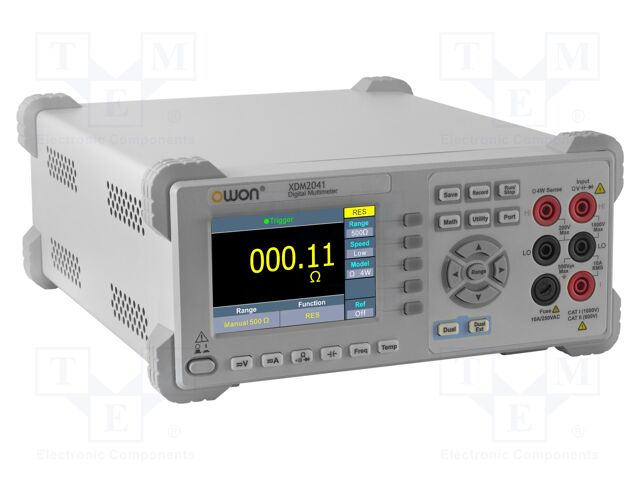

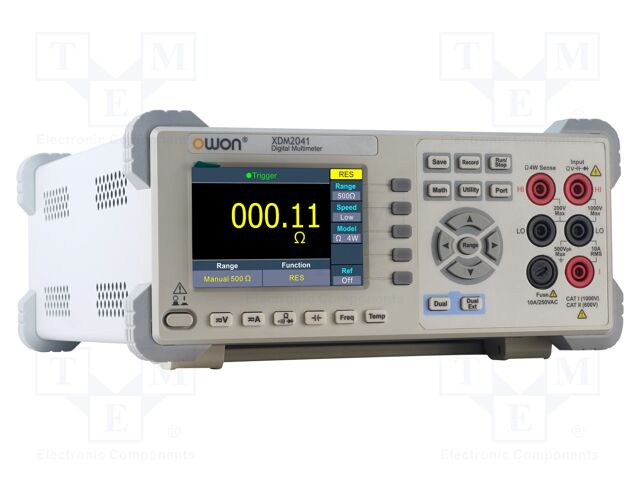

XDM2041 OWON
Виробник: OWONCategory: Benchtop digital multimeters
Description: Benchtop multimeter; LCD 4,5"; 5,5 digit; 480x320; True RMS AC
Supply voltage: 90...240V AC
Conform to the norm: CAT II 600V; CAT II 1000V; EN 61010

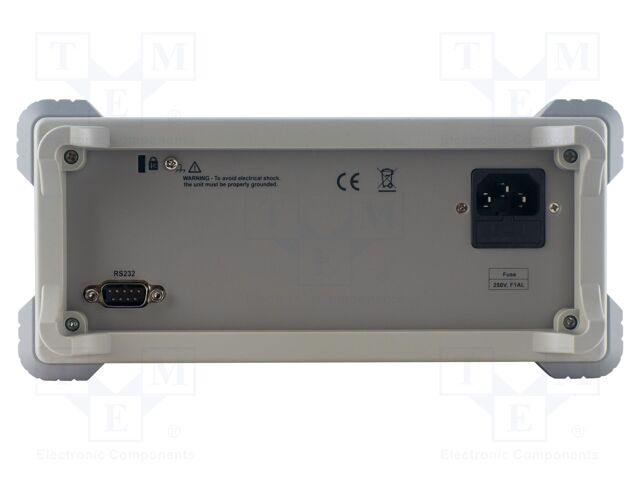

Interface: RS232
Kind of display used: LCD 4,5"
True effective value measurement: True RMS AC
Capacitance measuring range: 50nF...50mF
DC current measuring range: 0.5mA; 5mA; 50mA; 500mA; 5A; 10A
AC current measuring range: 500µA; 0.5A; 5A; 10A
DC voltage measuring accuracy: ±(0.025% + 5% range)
DC voltage measuring range: 50mV; 500mV; 5V; 50V; 500V; 1kV
Resistance measuring accuracy: ±(0.1%+5% range)
DC current measuring accuracy: ±(0.15% + 20% range)
Frequency measuring accuracy: ±(0.2% + 8% range)
Dimensions (W x H x D): 235x110x295mm
AC current measuring accuracy: ±(0.5% + 20% range)
AC voltage measuring accuracy: ±(0.5% + 30% range)
AC voltage measuring range: 500mV...750V
Capacitance measuring accuracy: ±(2.5%+ 5% range)
Diode test: 3V
Display resolution: 480x320
Resistance measuring range: 500Ω; 5kΩ; 50kΩ; 500kΩ; 5MΩ; 50MΩ
Continuity test: <1kΩ
Frequency measuring range: 10...60MHz
Standard equipment: 2 crocodile clips; fuse; mains cable; test leads ( 2pcs.)
Display parameters: 5,5 digit
Sampling: 65x/s
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance (2-wire); resistance (4-wire); temperature
Measuring instrument features: autoranging; HOLD function; MIN/MAX/AVG function; operates with thermocouple types: K; operates with thermocouple types: PT100
Type of meter: benchtop multimeter
на замовлення 11 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 11123.19 грн |
| 4+ | 9710.55 грн |
