XDM3041
  • XDM3041
  • XDM3041
  • XDM3041
  • XDM3041

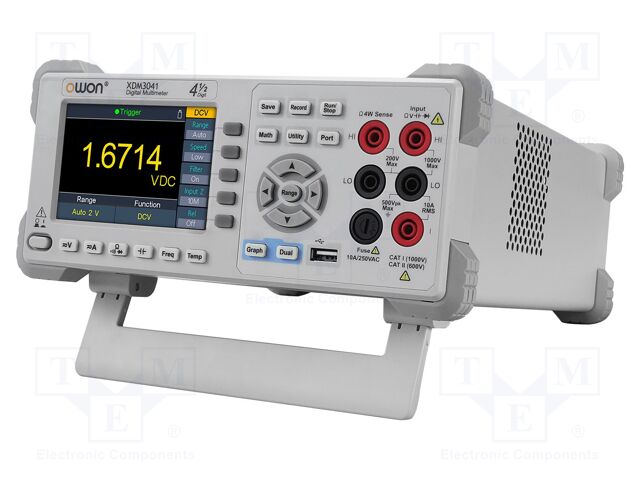

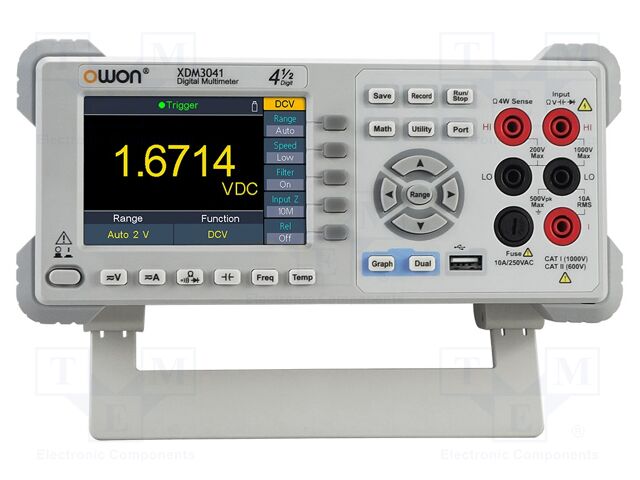

XDM3041 OWON

XDM3041.pdf XDM3051-manual.pdf XDM3041_51MANUAL.pdf
Виробник: OWON
Category: Benchtop digital multimeters
Description: Benchtop multimeter; LCD 4,5"; 4,5 digit; 480x320; True RMS AC

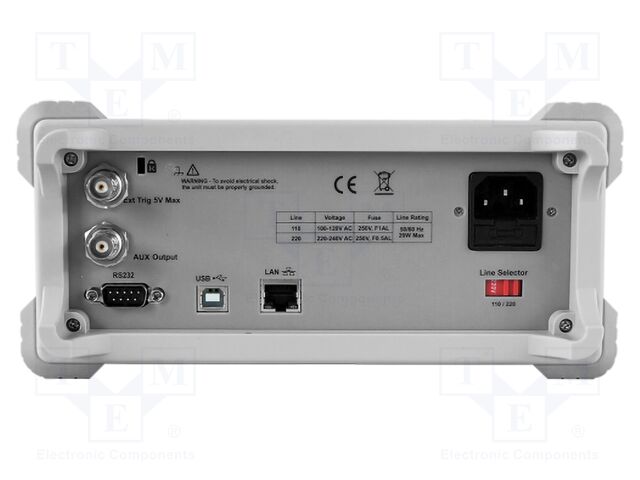

Interface: LAN; RS232; USB
Kind of display used: LCD 4,5"
True effective value measurement: True RMS AC
Capacitance measuring range: 2nF; 20nF; 200nF; 2µF; 200µF; 10mF
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
Frequency measuring accuracy: ±(0.01% + 0.003% range)
DC voltage measuring accuracy: ±(0.02% + 0.01% range)
Resistance measuring accuracy: ±(0.03%+0.01% range)
AC current measuring range: 60mA; 600mA; 6A; 10A
DC current measuring accuracy: ±(0.06% + 0.02% range)
AC voltage measuring accuracy: ±(0.2% + 0.06% range)
Dimensions (W x H x D): 235x110x295mm
AC current measuring accuracy: ±(0.5% + 0.1% range)
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
AC voltage measuring range: 600mV; 6V; 60V; 600V; 750V
Capacitance measuring accuracy: ±(1%+ 0.5% range)
Diode test: 3V
Supply voltage: 90...240V AC
Display resolution: 480x320
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ; 100MΩ
Continuity test: <1kΩ
Standard equipment: 2 crocodile clips; fuse; mains cable; test leads ( 2pcs.); USB cable
Frequency measuring range: 20...1MHz
Display parameters: 4,5 digit
Sampling: 150x/s
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance (2-wire); resistance (4-wire); temperature
Type of meter: benchtop multimeter
Conform to the norm: CAT II 600V; CAT II 1000V; EN 61010
Measuring instrument features: data visualization Min, Max, live, historical data and trending charts; MIN/MAX/AVG function; operates with thermocouple types: J, K, T, E, R, S, B, N; Pass/Fail function
на замовлення 9 шт:
термін постачання 14-30 дні (днів)
Кількість Ціна
1+25483.59 грн
4+22370.97 грн
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис XDM3041 OWON

Category: Benchtop digital multimeters, Description: Benchtop multimeter; LCD 4,5"; 4,5 digit; 480x320; True RMS AC, Interface: LAN; RS232; USB, Kind of display used: LCD 4,5", True effective value measurement: True RMS AC, Capacitance measuring range: 2nF; 20nF; 200nF; 2µF; 200µF; 10mF, DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A, Frequency measuring accuracy: ±(0.01% + 0.003% range), DC voltage measuring accuracy: ±(0.02% + 0.01% range), Resistance measuring accuracy: ±(0.03%+0.01% range), AC current measuring range: 60mA; 600mA; 6A; 10A, DC current measuring accuracy: ±(0.06% + 0.02% range), AC voltage measuring accuracy: ±(0.2% + 0.06% range), Dimensions (W x H x D): 235x110x295mm, AC current measuring accuracy: ±(0.5% + 0.1% range), DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV, AC voltage measuring range: 600mV; 6V; 60V; 600V; 750V, Capacitance measuring accuracy: ±(1%+ 0.5% range), Diode test: 3V, Supply voltage: 90...240V AC, Display resolution: 480x320, Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ; 100MΩ, Continuity test: .

Інші пропозиції XDM3041 за ціною від 36760.91 грн до 36760.91 грн

Фото Назва Виробник Інформація Доступність
Ціна
XDM3041 XDM3041 Виробник : Owon Technology Lilliput Electronics (USA) Inc OWON%20XDM3041%20Bench-type%20Digital%20Multimeter%20technical%20spec.s.pdf Description: DMM BENCH 4.5 DIGIT LCD DISPLAY
Display Digits: 4.5
Part Status: Active
Response: True RMS
Display Count: 1000000
Ranging: Auto/Manual
Type: Digital (DMM)
Function: Voltage, Current, Resistance, Capacitance, Temperature, Frequency
Style: Bench
Display Type: LCD
Features: Backlight, Data Logging (RS-232), Min/Max/Ave
Packaging: Box
Functions, Extra: Continuity, dB, Diode Test
на замовлення 43 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+36760.91 грн
В кошику  од. на суму  грн.
