Продукція > OWON > XDM3051
XDM3051
  • XDM3051
  • XDM3051
  • XDM3051
  • XDM3051
  • XDM3051
  • XDM3051

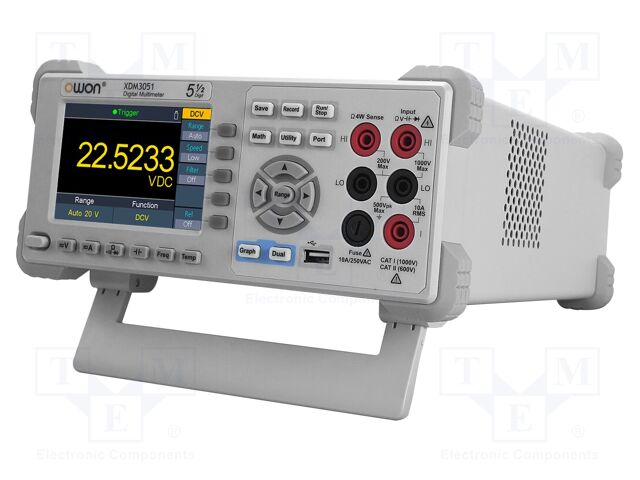

XDM3051 OWON

pVersion=0046&contRep=ZT&docId=005056AB90B41EDB95AF032DD5B140C7&compId=XDM3051.pdf?ci_sign=14a216b460184e1c6198d89c28d9b072bd0d616c pVersion=0046&contRep=ZT&docId=005056AB90B41EDC82DD879F600700C7&compId=XDM3051-manual.pdf?ci_sign=9722084028fd6dc9605ab9ffbb548b755ae16da1 pVersion=0046&contRep=ZT&docId=005056AB90B41EDB95AF02E7382200C7&compId=XDM3041_51MANUAL.pdf?ci_sign=a46a4174755501c2e9409a2073020bbe7356715d Виробник: OWON
Category: Benchtop digital multimeters
Description: Benchtop multimeter; LCD 4"; 5,5 digit; Sampling: 150x/s; 20÷1MHz
Type of meter: benchtop multimeter
Kind of display used: LCD 4"
Display parameters: 5,5 digit
Sampling: 150x/s
True effective value measurement: True RMS AC
DC voltage measuring range: 200mV; 2V; 20V; 200V; 1kV
DC voltage measuring accuracy: ±(0.015% + 0.004% range)
AC voltage measuring range: 200mV; 2V; 20V; 200V; 750V
AC voltage measuring accuracy: ±(0.2% + 0.05% range)
DC current measuring range: 0.2mA; 2mA; 20mA; 200mA; 2A; 10A
DC current measuring accuracy: ±(0.055% + 0.005% range)
AC current measuring range: 20mA; 200mA; 2A; 10A
AC current measuring accuracy: ±(0.5% + 0.1% range)
Resistance measuring range: 200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 10MΩ; 100MΩ
Resistance measuring accuracy: ±(0.02%+0.003% range)
Capacitance measuring range: 2nF; 20nF; 200nF; 2µF; 200µF; 10mF
Capacitance measuring accuracy: ±(1%+ 0.5% range)
Frequency measuring range: 20...1MHz
Frequency measuring accuracy: ±(0.01% + 0.003% range)
Diode test: 2V
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance (2-wire); resistance (4-wire); temperature
Interface: LAN; RS232; USB
Continuity test: <2kΩ
Conform to the norm: CAT II 600V; CAT II 1000V; EN 61010
Supply voltage: 90...240V AC
Dimensions (W x H x D): 235x110x295mm
Measuring instrument features: data visualization Min, Max, live, historical data and trending charts; MIN/MAX/AVG function; operates with thermocouple types: J, K, T, E, R, S, B, N; Pass/Fail function
Standard equipment: 2 crocodile clips; fuse; mains cable; test leads ( 2pcs.); USB cable
на замовлення 15 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
1+28471.22 грн
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис XDM3051 OWON

Category: Benchtop digital multimeters, Description: Benchtop multimeter; LCD 4"; 5,5 digit; Sampling: 150x/s; 20÷1MHz, Type of meter: benchtop multimeter, Kind of display used: LCD 4", Display parameters: 5,5 digit, Sampling: 150x/s, True effective value measurement: True RMS AC, DC voltage measuring range: 200mV; 2V; 20V; 200V; 1kV, DC voltage measuring accuracy: ±(0.015% + 0.004% range), AC voltage measuring range: 200mV; 2V; 20V; 200V; 750V, AC voltage measuring accuracy: ±(0.2% + 0.05% range), DC current measuring range: 0.2mA; 2mA; 20mA; 200mA; 2A; 10A, DC current measuring accuracy: ±(0.055% + 0.005% range), AC current measuring range: 20mA; 200mA; 2A; 10A, AC current measuring accuracy: ±(0.5% + 0.1% range), Resistance measuring range: 200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 10MΩ; 100MΩ, Resistance measuring accuracy: ±(0.02%+0.003% range), Capacitance measuring range: 2nF; 20nF; 200nF; 2µF; 200µF; 10mF, Capacitance measuring accuracy: ±(1%+ 0.5% range), Frequency measuring range: 20...1MHz, Frequency measuring accuracy: ±(0.01% + 0.003% range), Diode test: 2V, Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance (2-wire); resistance (4-wire); temperature, Interface: LAN; RS232; USB, Continuity test: .

Інші пропозиції XDM3051 за ціною від 43879.93 грн до 43879.93 грн

Фото Назва Виробник Інформація Доступність
Ціна
XDM3051 XDM3051 Виробник : Owon Technology Lilliput Electronics (USA) Inc OWON%20XDM3051%20bench-type%20Digital%20Multimeter%20technical%20spec.s.pdf Description: DMM BENCH 5.5 DIGIT LCD DISP
Features: Backlight, Data Logging (RS-232), Min/Max/Ave
Packaging: Box
Display Type: LCD
Style: Bench
Function: Voltage, Current, Resistance, Capacitance, Temperature, Frequency
Type: Digital (DMM)
Ranging: Auto/Manual
Display Count: 1000000
Functions, Extra: Continuity, dB, Diode Test
Response: True RMS
Part Status: Active
Display Digits: 5.5
на замовлення 49 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+43879.93 грн
