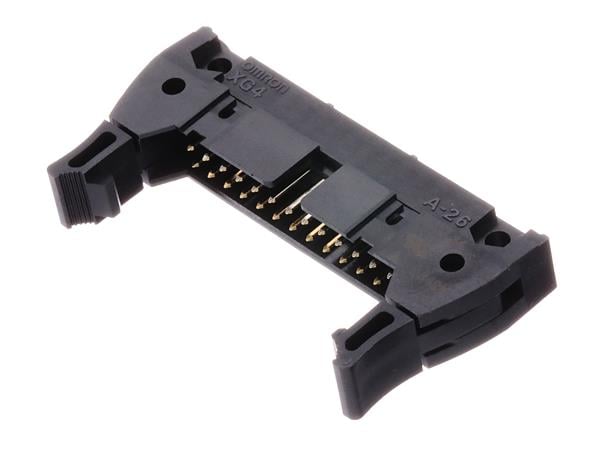

XG4A-2634 Omron Electronics Inc-EMC Div

Description: CONN HEADER R/A 26POS 2.54MM, Packaging: Tray, Features: Keying Slot, Mounting Flange, Connector Type: Header, Voltage Rating: 300V, Current Rating (Amps): 3A, Mounting Type: Through Hole, Right Angle, Number of Positions: 26, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Latch Lock/Eject Hooks, Long, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Nickel, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 5.90µin (0.150µm), Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.126" (3.20mm), Insulation Height: 0.335" (8.51mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.240" (6.10mm).
