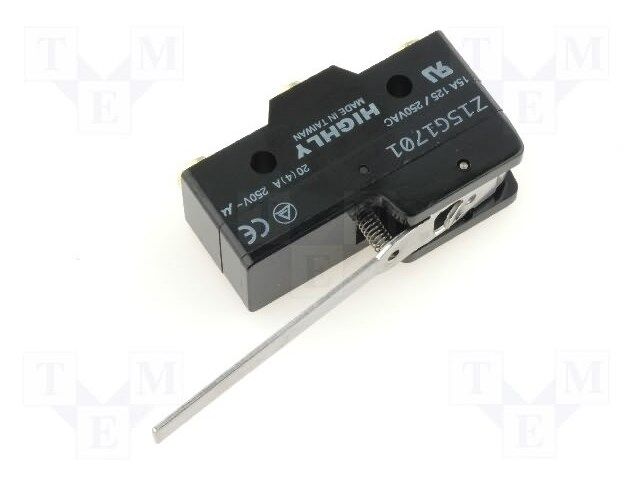

Технічний опис Z15G1701
- MICROSWITCH, Z LONG LEVER
- Actuator Type:Lever
- Max Operating Force:70gf
- Max Contact Voltage AC:250V
- Terminal Type:M4 screw
- Contact Configuration:SPDT
- Contact Current AC:15A
- Contact Resistance:15mohm
- Differential Travel:1.27mm
- External Length / Height:50mm
- External Width:18mm
- Fixing Centres LxW:25.4mm
- Height:29.5mm
- Insulation Resistance:100Mohm
- Lever Length:63.5mm
- Max Contact Current:15A
- No. of Electrical Operations:100000
- No. of Mechanical Operations:1000000
- Over Travel:5.6mm
- Pre-travel:10mm
- Release Force:14gf
Інші пропозиції Z15G1701
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ |
|---|---|---|---|---|---|
 |
Z15G1701 | Виробник : HIGHLY ELECTRIC |
 Category: Microswitches SNAP ACTIONDescription: Microswitch SNAP ACTION; 20A/250VAC; with lever; SPDT; ON-(ON) Type of switch: microswitch SNAP ACTION AC contacts rating @R: 20A / 250V AC Switches features: with lever Contacts configuration: SPDT AC contacts rating @L: 4A / 125V AC Max. contact resistance:: 15mΩ Switching method: ON-(ON) Number of positions: 2 Stable positions number: 1 IP rating: IP40 Leads: M4 screws Body dimensions: 49.2x17.45x24.2mm Mechanical durability: 1000000 cycles Operating temperature: 0...55°C Operating Force: 0.7N Lever length: 63.5mm Electrical life: 100000 cycles Min. insulation resistance: 0.1GΩ Related items: AA8000 кількість в упаковці: 1 шт |
товар відсутній |
|
|
|
Z15G1701 | Виробник : HIGHLY ELECTRIC |
Category: Microswitches SNAP ACTION Description: Microswitch SNAP ACTION; 20A/250VAC; with lever; SPDT; ON-(ON) Type of switch: microswitch SNAP ACTION AC contacts rating @R: 20A / 250V AC Switches features: with lever Contacts configuration: SPDT AC contacts rating @L: 4A / 125V AC Max. contact resistance:: 15mΩ Switching method: ON-(ON) Number of positions: 2 Stable positions number: 1 IP rating: IP40 Leads: M4 screws Body dimensions: 49.2x17.45x24.2mm Mechanical durability: 1000000 cycles Operating temperature: 0...55°C Operating Force: 0.7N Lever length: 63.5mm Electrical life: 100000 cycles Min. insulation resistance: 0.1GΩ Related items: AA8000 |
товар відсутній |
