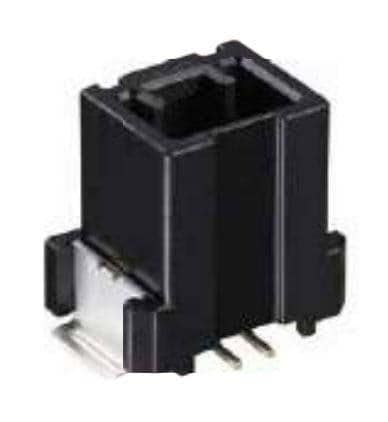

ZE05H-16DP-2V Hirose Connector

Description: INTERCONNECT RECTANGULAR, Packaging: Tape & Reel (TR), Features: Solder Retention, Connector Type: Receptacle, Voltage Rating: 60VAC/DC, Current Rating (Amps): 2A, 5A, Mounting Type: Surface Mount, Number of Positions: 16, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 39.4µin (1.00µm), Contact Finish - Post: Tin, Contact Shape: Square, Insulation Height: 0.276" (7.00mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon, Row Spacing - Mating: 0.079" (2.00mm).
