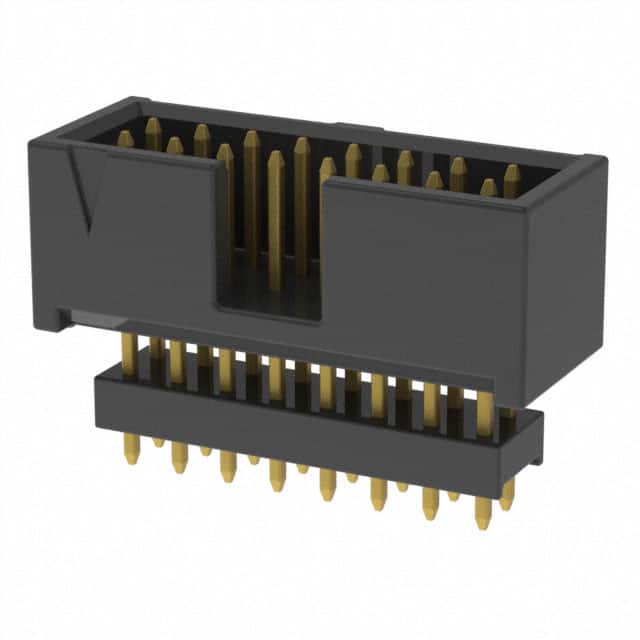

ZSS-108-01-G-D-540 Samtec

Description: CONN HEADER VERT 16POS 2.54MM, Packaging: Bulk, Features: Keying Slot, Connector Type: Header, Elevated, Current Rating (Amps): 3A, Mounting Type: Through Hole, Number of Positions: 16, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Post: Gold, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.090" (2.29mm), Insulation Height: 0.540" (13.72mm), Shrouding: Shrouded - 4 Wall, Overall Contact Length: 0.630" (16.00mm), Insulation Material: Polyester, Glass Filled, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.250" (6.35mm).
