Продукція > ANALOG POWER INC. > Всі товари виробника ANALOG POWER INC. (328) > Сторінка 1 з 6

Виробник: Analog Power Inc.
Description: MOSFET N-CH 60V 0.6A SOT-23
Input Capacitance (Ciss) (Max) @ Vds: 474 pF @ 15 V
Gate Charge (Qg) (Max) @ Vgs: 4 nC @ 4.5 V
Drain to Source Voltage (Vdss): 60 V
Vgs (Max): ±20V
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Supplier Device Package: SOT-23
Vgs(th) (Max) @ Id: 1V @ 250µA
Power Dissipation (Max): 1.3W (Ta)
Rds On (Max) @ Id, Vgs: 3Ohm @ 600mA, 10V
Current - Continuous Drain (Id) @ 25°C: 600mA (Ta)
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: TO-236-3, SC-59, SOT-23-3
Packaging: Bulk

Виробник: Analog Power Inc.
Description: MOSFET N-CH 60V 1.4A SOT-23

Виробник: Analog Power Inc.
Description: DIODE SIL SIC 1200V 10A TO220
Packaging: Tube
Package / Case: TO-220-2 Full Pack
Mounting Type: Through Hole
Speed: No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr): 0 ns
Technology: SiC (Silicon Carbide) Schottky
Capacitance @ Vr, F: 6.3pF @ 200V, 100kHz
Current - Average Rectified (Io): 10A
Supplier Device Package: TO-220F
Operating Temperature - Junction: -40°C ~ 175°C
Voltage - DC Reverse (Vr) (Max): 650 V
Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 10 A
Current - Reverse Leakage @ Vr: 2 µA @ 650 V

Виробник: Analog Power Inc.
Description: DIODE SIL SIC 1200V 33A TO220-2
Packaging: Tube
Package / Case: TO-220-2
Mounting Type: Through Hole
Speed: No Recovery Time > 500mA (Io)
Technology: SiC (Silicon Carbide) Schottky
Capacitance @ Vr, F: 6.3pF @ 0V, 100kHz
Current - Average Rectified (Io): 33A
Supplier Device Package: TO-220-2
Operating Temperature - Junction: -55°C ~ 175°C
Voltage - DC Reverse (Vr) (Max): 1200 V
Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 2 A
Current - Reverse Leakage @ Vr: 2 µA @ 1200 V

Виробник: Analog Power Inc.
Description: DIODE SIL CARB 1200V 9A TO2473
Packaging: Tube
Package / Case: TO-247-3
Mounting Type: Through Hole
Speed: No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr): 0 ns
Technology: SiC (Silicon Carbide) Schottky
Capacitance @ Vr, F: 6.3pF @ 0V, 100kHz
Current - Average Rectified (Io): 9A
Supplier Device Package: TO-247-3
Operating Temperature - Junction: -55°C ~ 175°C
Voltage - DC Reverse (Vr) (Max): 1200 V
Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 2 A
Current - Reverse Leakage @ Vr: 2 µA @ 1200 V

Виробник: Analog Power Inc.
Description: DIODE SIL CARB 1200V 33A TO252-3
Packaging: Tape & Reel (TR)
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Speed: No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr): 0 ns
Technology: SiC (Silicon Carbide) Schottky
Capacitance @ Vr, F: 6.3pF @ 0V, 100kHz
Current - Average Rectified (Io): 33A
Supplier Device Package: TO-252-2
Operating Temperature - Junction: -55°C ~ 175°C
Voltage - DC Reverse (Vr) (Max): 1200 V
Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 10 A
Current - Reverse Leakage @ Vr: 2 µA @ 1200 V

Виробник: Analog Power Inc.
Description: DIODE SIC 1.2KV 31.5A TO2472
Packaging: Tube
Package / Case: TO-247-2
Mounting Type: Through Hole
Speed: No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr): 0 ns
Technology: SiC (Silicon Carbide) Schottky
Capacitance @ Vr, F: 6.3pF @ 0V, 100kHz
Current - Average Rectified (Io): 31.5A
Supplier Device Package: TO-247-2
Operating Temperature - Junction: -55°C ~ 175°C
Voltage - DC Reverse (Vr) (Max): 1200 V
Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 2 A
Current - Reverse Leakage @ Vr: 2 µA @ 1200 V

Виробник: Analog Power Inc.
Description: DIODE SIL CARB 1200V 54A TO2472
Packaging: Tube
Package / Case: TO-247-2
Mounting Type: Through Hole
Speed: No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr): 0 ns
Technology: SiC (Silicon Carbide) Schottky
Capacitance @ Vr, F: 12pF @ 0V, 100kHz
Current - Average Rectified (Io): 54A
Supplier Device Package: TO-247-2
Operating Temperature - Junction: -55°C ~ 175°C
Voltage - DC Reverse (Vr) (Max): 1200 V
Voltage - Forward (Vf) (Max) @ If: 1.85 V @ 20 A
Current - Reverse Leakage @ Vr: 10 µA @ 1200 V

Виробник: Analog Power Inc.
Description: DIODE SIL SIC 650V 37A TO220-2
Packaging: Tube
Package / Case: TO-220-2
Mounting Type: Through Hole
Speed: No Recovery Time > 500mA (Io)
Technology: SiC (Silicon Carbide) Schottky
Capacitance @ Vr, F: 6.3pF @ 0V, 100kHz
Current - Average Rectified (Io): 37A
Supplier Device Package: TO-220-2
Operating Temperature - Junction: -55°C ~ 175°C
Voltage - DC Reverse (Vr) (Max): 650 V
Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 2 A
Current - Reverse Leakage @ Vr: 2 µA @ 650 V

Виробник: Analog Power Inc.
Description: DIODE SIL SIC 650V 35A TO252-2
Packaging: Tape & Reel (TR)
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Speed: No Recovery Time > 500mA (Io)
Technology: SiC (Silicon Carbide) Schottky
Capacitance @ Vr, F: 6.3pF @ 0V, 100kHz
Current - Average Rectified (Io): 35A
Supplier Device Package: TO-252-2
Operating Temperature - Junction: -55°C ~ 175°C
Voltage - DC Reverse (Vr) (Max): 650 V
Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 2 A
Current - Reverse Leakage @ Vr: 2 µA @ 650 V

Виробник: Analog Power Inc.
Description: DIODE SIL SIC 650V 36A TO263-2
Packaging: Tape & Reel (TR)
Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Speed: No Recovery Time > 500mA (Io)
Technology: SiC (Silicon Carbide) Schottky
Capacitance @ Vr, F: 6.3pF @ 0V, 100kHz
Current - Average Rectified (Io): 36A
Supplier Device Package: TO-263-2
Operating Temperature - Junction: -55°C ~ 175°C
Voltage - DC Reverse (Vr) (Max): 650 V
Voltage - Forward (Vf) (Max) @ If: 1.8 V @ 2 A
Current - Reverse Leakage @ Vr: 2 µA @ 650 V

Виробник: Analog Power Inc.
Description: DIODE SIL CARB 1200V 33A TO2473
Packaging: Tube
Package / Case: TO-247-3
Mounting Type: Through Hole
Speed: No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr): 0 ns
Technology: SiC (Silicon Carbide) Schottky
Capacitance @ Vr, F: 12pF @ 0V, 100kHz
Current - Average Rectified (Io): 33A
Supplier Device Package: TO-247-3
Operating Temperature - Junction: -55°C ~ 175°C
Voltage - DC Reverse (Vr) (Max): 1200 V
Voltage - Forward (Vf) (Max) @ If: 1.85 V @ 20 A
Current - Reverse Leakage @ Vr: 20 µA @ 1200 V

Виробник: Analog Power Inc.
Description: DIODE SIL CARB 1200V 56A TO2632
Packaging: Tape & Reel (TR)
Package / Case: TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type: Surface Mount
Speed: No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr): 0 ns
Technology: SiC (Silicon Carbide) Schottky
Capacitance @ Vr, F: 12pF @ 0V, 100kHz
Current - Average Rectified (Io): 56A
Supplier Device Package: TO-263-2
Operating Temperature - Junction: -55°C ~ 175°C
Voltage - DC Reverse (Vr) (Max): 1200 V
Voltage - Forward (Vf) (Max) @ If: 1.85 V @ 20 A
Current - Reverse Leakage @ Vr: 20 µA @ 1200 V

Виробник: Analog Power Inc.
Description: MOSFET N-CH 200V 10A TO-252
Packaging: Bulk
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 10A (Tc)
Rds On (Max) @ Id, Vgs: 400mOhm @ 4A, 10V
Power Dissipation (Max): 50W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-252 (DPAK)
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 200 V
Gate Charge (Qg) (Max) @ Vgs: 14 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 807 pF @ 15 V

Виробник: Analog Power Inc.

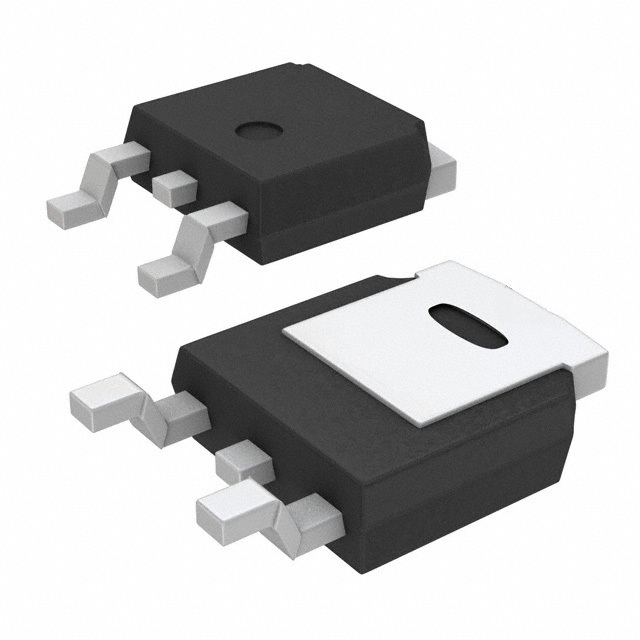

Description: MOSFET N-CH 400V 4A TO-252
Packaging: Bulk
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Supplier Device Package: TO-252 (DPAK)

Виробник: Analog Power Inc.
Description: MOSFET N-CH 500V 10A TO-252
Packaging: Bulk
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 10A (Tc)
Rds On (Max) @ Id, Vgs: 380mOhm @ 5A, 10V
Power Dissipation (Max): 50W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-252
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 500 V
Gate Charge (Qg) (Max) @ Vgs: 22 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 634 pF @ 50 V

Виробник: Analog Power Inc.
Description: MOSFET N-CH 650V 12A TO-220
Packaging: Bulk
Package / Case: TO-220-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 12A (Tc)
Rds On (Max) @ Id, Vgs: 800mOhm @ 23A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-220
Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 650 V
Gate Charge (Qg) (Max) @ Vgs: 23 nC @ 6 V
Input Capacitance (Ciss) (Max) @ Vds: 2691 pF @ 15 V

Виробник: Analog Power Inc.
Description: MOSFET N-CH 700V 12A TO-220
Gate Charge (Qg) (Max) @ Vgs: 23 nC @ 6 V
Drain to Source Voltage (Vdss): 700 V
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Operating Temperature: -55°C ~ 175°C (TJ)
Mounting Type: Through Hole
Package / Case: TO-220-3
Packaging: Bulk
Input Capacitance (Ciss) (Max) @ Vds: 2748 pF @ 15 V
Vgs (Max): ±20V
Drive Voltage (Max Rds On, Min Rds On): 10V
Supplier Device Package: TO-220
Vgs(th) (Max) @ Id: 2V @ 250µA
Power Dissipation (Max): 300W (Tc)
Rds On (Max) @ Id, Vgs: 1Ohm @ 12A, 10V
Current - Continuous Drain (Id) @ 25°C: 12A (Tc)

Виробник: Analog Power Inc.
Description: MOSFET N-CH 30V 100A TO-252
Packaging: Bulk
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
Rds On (Max) @ Id, Vgs: 3.2mOhm @ 30A, 10V
Power Dissipation (Max): 50W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-252
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 23 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 1929 pF @ 15 V

Виробник: Analog Power Inc.
Description: MOSFET N-CH 250V 10.8A TO-252
Packaging: Bulk

Виробник: Analog Power Inc.
Description: MOSFET N-CH 650V 14A TO-220
Packaging: Bulk
Package / Case: TO-220-3
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 14A (Tc)
Rds On (Max) @ Id, Vgs: 650mOhm @ 18A, 10V
Power Dissipation (Max): 300W (Tc)
Vgs(th) (Max) @ Id: 2V @ 250µA
Supplier Device Package: TO-220
Drive Voltage (Max Rds On, Min Rds On): 10V
Vgs (Max): ±30V
Drain to Source Voltage (Vdss): 650 V
Gate Charge (Qg) (Max) @ Vgs: 29 nC @ 6 V
Input Capacitance (Ciss) (Max) @ Vds: 3469 pF @ 15 V

Виробник: Analog Power Inc.

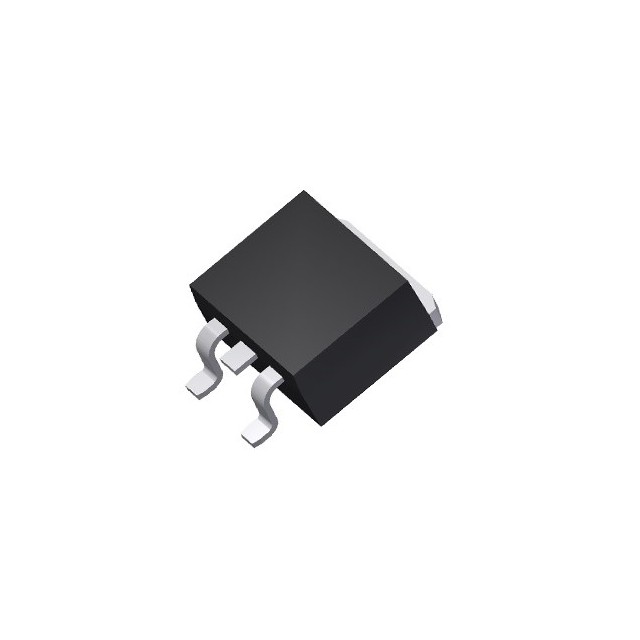

Description: MOSFET N-CH 80V 150A TO-263

Виробник: Analog Power Inc.
Description: MOSFET N-CH 40V 202A TO-220
Input Capacitance (Ciss) (Max) @ Vds: 9569 pF @ 15 V
Gate Charge (Qg) (Max) @ Vgs: 69 nC @ 5.5 V
Drain to Source Voltage (Vdss): 40 V
Vgs (Max): ±20V
Drive Voltage (Max Rds On, Min Rds On): 5.5V, 10V
Supplier Device Package: TO-220
Vgs(th) (Max) @ Id: 1V @ 250µA
Power Dissipation (Max): 300W (Tc)
Rds On (Max) @ Id, Vgs: 4.6mOhm @ 202A, 10V
Current - Continuous Drain (Id) @ 25°C: 202A (Tc)
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Operating Temperature: -55°C ~ 175°C (TJ)
Mounting Type: Through Hole
Package / Case: TO-220-3
Packaging: Bulk

Виробник: Analog Power Inc.
Description: MOSFET N-CH 60V 19A TO-252
Packaging: Bulk
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 19A (Ta)
Rds On (Max) @ Id, Vgs: 94mOhm @ 15.2A, 10V
Power Dissipation (Max): 50W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-252
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 5.1 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 353 pF @ 15 V

Виробник: Analog Power Inc.
Description: MOSFET N-CH 100V 17A TO-252
Packaging: Bulk
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 17A (Tc)
Rds On (Max) @ Id, Vgs: 115mOhm @ 17A, 10V
Power Dissipation (Max): 50W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-252
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 10 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 1622 pF @ 15 V

Виробник: Analog Power Inc.
Description: MOSFET N-CH 100V 17A TO-252
Packaging: Bulk
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 17A (Ta)
Rds On (Max) @ Id, Vgs: 130mOhm @ 17A, 10V
Power Dissipation (Max): 50W (Ta)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-252
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 4.9 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 398 pF @ 15 V

Виробник: Analog Power Inc.
Description: MOSFET N-CH 100V 15A TO-252
Packaging: Bulk
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 15A (Tc)
Rds On (Max) @ Id, Vgs: 160mOhm @ 3.8A, 10V
Power Dissipation (Max): 50W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-252
Drive Voltage (Max Rds On, Min Rds On): 5.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 3.8 nC @ 5.5 V
Input Capacitance (Ciss) (Max) @ Vds: 321 pF @ 15 V

Виробник: Analog Power Inc.
Description: MOSFET N-CH 100V 11.6A TO-252
Packaging: Bulk
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 11A (Tc)
Rds On (Max) @ Id, Vgs: 280mOhm @ 11A, 10V
Power Dissipation (Max): 50W (Tc)
Vgs(th) (Max) @ Id: 3.5V @ 250µA
Supplier Device Package: TO-252
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 3.8 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 332 pF @ 15 V

Виробник: Analog Power Inc.
Description: MOSFET N-CH 100V 20A TO-220CFM
Packaging: Tube
Package / Case: TO-220-3 Full Pack
Mounting Type: Through Hole
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 20A (Tc)
Rds On (Max) @ Id, Vgs: 52mOhm @ 10A, 10V
Power Dissipation (Max): 60W (Tc)
Vgs(th) (Max) @ Id: 1V @ 250µA
Supplier Device Package: TO-220CFM
Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 100 V
Gate Charge (Qg) (Max) @ Vgs: 18 nC @ 6 V
Input Capacitance (Ciss) (Max) @ Vds: 1184 pF @ 50 V

Виробник: Analog Power Inc.
Description: MOSFET N-CH 150V 20A TO-252
Supplier Device Package: TO-252 (DPAK)
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Mounting Type: Surface Mount
Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
Packaging: Bulk

Виробник: Analog Power Inc.
Description: MOSFET P-CH -60V 15.8A TO-252

Виробник: Analog Power Inc.
Description: MOSFET P-CH -20V 2.6A SOT-23
Packaging: Bulk
Package / Case: TO-236-3, SC-59, SOT-23-3
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 2.6A (Ta)
Rds On (Max) @ Id, Vgs: 130mOhm @ 2.3A, 4.5V
Power Dissipation (Max): 1.3W (Ta)
Vgs(th) (Max) @ Id: 400mV @ 250µA
Supplier Device Package: SOT-23
Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
Vgs (Max): ±8V
Drain to Source Voltage (Vdss): 20 V
Gate Charge (Qg) (Max) @ Vgs: 10 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 674 pF @ 15 V

Виробник: Analog Power Inc.
Description: MOSFET N-CH 30V 8.5A SOT-23
Packaging: Bulk

Виробник: Analog Power Inc.
Description: MOSFET P-CH 20V 4.5A SOT-23
Packaging: Bulk
Package / Case: TO-236-3, SC-59, SOT-23-3
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 4.5A (Ta)
Rds On (Max) @ Id, Vgs: 43mOhm @ 3.7A, 4.5V
Power Dissipation (Max): 1.3W (Ta)
Vgs(th) (Max) @ Id: 400mV @ 250µA
Supplier Device Package: SOT-23
Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
Vgs (Max): ±8V
Drain to Source Voltage (Vdss): 20 V
Gate Charge (Qg) (Max) @ Vgs: 11 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds: 697 pF @ 15 V

Виробник: Analog Power Inc.
Description: MOSFET N-CH 30V 3.9A SOT-23
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Supplier Device Package: SOT-23
Vgs(th) (Max) @ Id: 1V @ 250µA
Power Dissipation (Max): 1.3W (Ta)
Rds On (Max) @ Id, Vgs: 58mOhm @ 3.5A, 10V
Current - Continuous Drain (Id) @ 25°C: 3.5A (Ta)
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: TO-236-3, SC-59, SOT-23-3
Packaging: Bulk
Gate Charge (Qg) (Max) @ Vgs: 2.2 nC @ 4.5 V
Drain to Source Voltage (Vdss): 30 V
Vgs (Max): ±20V

Виробник: Analog Power Inc.
Description: MOSFET N-CH 30V 3.9A SOT-23
Packaging: Bulk

Виробник: Analog Power Inc.
Description: MOSFET N-CH 20V 6.3A SOT-23
Packaging: Bulk
Package / Case: TO-236-3, SC-59, SOT-23-3
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 4A (Ta)
Rds On (Max) @ Id, Vgs: 32mOhm @ 5.1A, 4.5V
Power Dissipation (Max): 1.3W (Ta)
Vgs(th) (Max) @ Id: 700mV @ 250µA
Supplier Device Package: SOT-23
Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
Vgs (Max): ±12V
Drain to Source Voltage (Vdss): 20 V
Gate Charge (Qg) (Max) @ Vgs: 13.4 nC @ 4.5 V

Виробник: Analog Power Inc.
Description: MOSFET P-CH 30V 3.2A SOT-23
Packaging: Bulk
Package / Case: TO-236-3, SC-59, SOT-23-3
Mounting Type: Surface Mount
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Supplier Device Package: SOT-23

Виробник: Analog Power Inc.
Description: MOSFET N-CH 20V 6.3A SOT-23
Packaging: Bulk
Package / Case: TO-236-3, SC-59, SOT-23-3
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 6.3A (Ta)
Rds On (Max) @ Id, Vgs: 22mOhm @ 6.5A, 4.5V
Power Dissipation (Max): 1.3W (Ta)
Vgs(th) (Max) @ Id: 400mV @ 250µA
Supplier Device Package: SOT-23
Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
Vgs (Max): ±8V
Drain to Source Voltage (Vdss): 20 V
Gate Charge (Qg) (Max) @ Vgs: 13.4 nC @ 4.5 V

Виробник: Analog Power Inc.
Description: MOSFET P-CH -30V 2.8A SOT-23
Gate Charge (Qg) (Max) @ Vgs: 4.5 nC @ 5 V
Drain to Source Voltage (Vdss): 30 V
Vgs (Max): ±20V
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Supplier Device Package: SOT-23
Vgs(th) (Max) @ Id: 1V @ 250µA
Power Dissipation (Max): 1.3W (Ta)
Rds On (Max) @ Id, Vgs: 112mOhm @ 2.5A, 10V
Current - Continuous Drain (Id) @ 25°C: 2.5A (Ta)
FET Type: P-Channel
Technology: MOSFET (Metal Oxide)
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: TO-236-3, SC-59, SOT-23-3
Packaging: Bulk

Виробник: Analog Power Inc.
Description: MOSFET N-CH 30V 5.3A SOT-23
Input Capacitance (Ciss) (Max) @ Vds: 449 pF @ 15 V
Gate Charge (Qg) (Max) @ Vgs: 8 nC @ 4.5 V
Drain to Source Voltage (Vdss): 30 V
Vgs (Max): ±12V
Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
Supplier Device Package: SOT-23
Vgs(th) (Max) @ Id: 400mV @ 250µA (Min)
Power Dissipation (Max): 1.3W (Ta)
Current - Continuous Drain (Id) @ 25°C: 5.3A (Ta)
FET Type: N-Channel
Technology: MOSFET (Metal Oxide)
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: SC-59, SOT-23
Packaging: Tape & Reel (TR)
Rds On (Max) @ Id, Vgs: 64mOhm @ 3.3A, 2.5V
