Продукція > NXP USA INC. > Всі товари виробника NXP USA INC. (34455) > Сторінка 41 з 575
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ |
|---|---|---|---|---|---|
 |

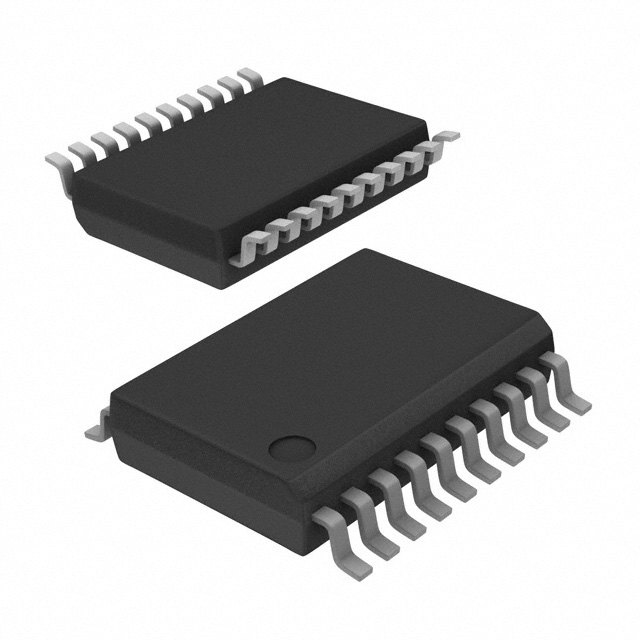

74HC640DB,112 | NXP USA Inc. |
 Description: IC TRANSCEIVER INVERT 6V 20SSOPPackaging: Tube Package / Case: 20-SSOP (0.209", 5.30mm Width) Output Type: 3-State Mounting Type: Surface Mount Number of Elements: 1 Logic Type: Transceiver, Inverting Operating Temperature: -40°C ~ 125°C (TA) Voltage - Supply: 2V ~ 6V Number of Bits per Element: 8 Current - Output High, Low: 7.8mA, 7.8mA Supplier Device Package: 20-SSOP Part Status: Obsolete |
товар відсутній |
|
 |
74HC646DB,112 | NXP USA Inc. |
Description: IC TRANSCVR NON-INVERT 6V 24SSOP |
товар відсутній |
|
|
|
74HC652DB,112 | NXP USA Inc. |
Description: IC TRANSCVR NON-INVERT 6V 24SSOP |
товар відсутній |
|
 |
74HC670DB,112 | NXP USA Inc. |
Description: IC 4X4 REGISTER FILE 3ST 16SSOP Packaging: Tube Package / Case: 16-SSOP (0.209", 5.30mm Width) Output Type: Tri-State Mounting Type: Surface Mount Number of Elements: 1 Function: Universal Logic Type: Register File Operating Temperature: -40°C ~ 125°C Voltage - Supply: 2V ~ 6V Supplier Device Package: 16-SSOP Part Status: Obsolete Number of Bits per Element: 4 Circuit: 1 x 1:1 Type: Register File Independent Circuits: 4 Voltage Supply Source: Single Supply |
товар відсутній |
|
 |
74HC7014N,112 | NXP USA Inc. |
Description: IC BUFFER NON-INVERT 6V 14DIP Packaging: Tube Package / Case: 14-DIP (0.300", 7.62mm) Output Type: Push-Pull Mounting Type: Through Hole Number of Elements: 6 Logic Type: Buffer, Non-Inverting Operating Temperature: -40°C ~ 125°C (TA) Voltage - Supply: 2V ~ 6V Input Type: Schmitt Trigger Number of Bits per Element: 1 Current - Output High, Low: 5.2mA, 5.2mA Supplier Device Package: 14-DIP Part Status: Obsolete |
товар відсутній |
|
 |
74HC7030D,652 | NXP USA Inc. |
Description: IC FIFO ASYNC/SYNC 64X9 28SO Packaging: Tube Package / Case: 28-SOIC (0.295", 7.50mm Width) Mounting Type: Surface Mount Function: Asynchronous, Synchronous Memory Size: 576 (64 x 9) Operating Temperature: -40°C ~ 125°C Data Rate: 33MHz Access Time: 36ns Supplier Device Package: 28-SO Bus Directional: Uni-Directional Expansion Type: Depth, Width Programmable Flags Support: No Retransmit Capability: No FWFT Support: No Part Status: Obsolete Voltage - Supply: 2 V ~ 6 V DigiKey Programmable: Not Verified |
товар відсутній |
|
|
|
74HC7046ADB,112 | NXP USA Inc. |
Description: IC PHASE LOCK LOOP 16SSOP Packaging: Tube Package / Case: 16-SSOP (0.209", 5.30mm Width) Mounting Type: Surface Mount Output: Clock Frequency - Max: 21MHz Type: Phase Lock Loop (PLL) Input: Clock Operating Temperature: -40°C ~ 125°C Voltage - Supply: 3V ~ 6V Ratio - Input:Output: 2:3 Differential - Input:Output: No/No Supplier Device Package: 16-SSOP PLL: Yes Divider/Multiplier: No/No Part Status: Obsolete Number of Circuits: 1 DigiKey Programmable: Not Verified |
товар відсутній |
|
 |
74HC7266D,652 | NXP USA Inc. |
Description: IC GATE XNOR 4CH 2-INP 14SO Packaging: Tube Package / Case: 14-SOIC (0.154", 3.90mm Width) Mounting Type: Surface Mount Logic Type: XNOR (Exclusive NOR) Operating Temperature: -40°C ~ 125°C Voltage - Supply: 2V ~ 6V Current - Output High, Low: 5.2mA, 5.2mA Number of Inputs: 2 Supplier Device Package: 14-SO Input Logic Level - High: 1.5V ~ 4.2V Input Logic Level - Low: 0.5V ~ 1.8V Max Propagation Delay @ V, Max CL: 20ns @ 6V, 50pF Part Status: Obsolete Number of Circuits: 4 Current - Quiescent (Max): 2 µA |
товар відсутній |
|
 |
74HC7266DB,112 | NXP USA Inc. |
Description: IC GATE XNOR 4CH 2-INP 14SSOP Packaging: Tube Package / Case: 14-SSOP (0.209", 5.30mm Width) Mounting Type: Surface Mount Logic Type: XNOR (Exclusive NOR) Operating Temperature: -40°C ~ 125°C Voltage - Supply: 2V ~ 6V Current - Output High, Low: 5.2mA, 5.2mA Number of Inputs: 2 Supplier Device Package: 14-SSOP Input Logic Level - High: 1.5V ~ 4.2V Input Logic Level - Low: 0.5V ~ 1.8V Max Propagation Delay @ V, Max CL: 20ns @ 6V, 50pF Part Status: Obsolete Number of Circuits: 4 Current - Quiescent (Max): 2 µA |
товар відсутній |
|
 |
74HC7403N,112 | NXP USA Inc. |
Description: IC FIFO ASYNC/SYNC 64X4 16DIP Packaging: Tube Package / Case: 16-DIP (0.300", 7.62mm) Mounting Type: Through Hole Function: Asynchronous, Synchronous Memory Size: 256 (64 x 4) Operating Temperature: -40°C ~ 125°C Data Rate: 30MHz Access Time: 49ns Current - Supply (Max): 1mA Supplier Device Package: 16-DIP Bus Directional: Uni-Directional Expansion Type: Depth, Width Programmable Flags Support: No Retransmit Capability: No FWFT Support: No Part Status: Obsolete Voltage - Supply: 2 V ~ 6 V DigiKey Programmable: Not Verified |
товар відсутній |
|
 |
74HC7540N,112 | NXP USA Inc. |
Description: IC BUFFER INVERT 6V 20DIP Packaging: Tube Package / Case: 20-DIP (0.300", 7.62mm) Output Type: 3-State Mounting Type: Through Hole Number of Elements: 1 Logic Type: Buffer, Inverting Operating Temperature: -40°C ~ 125°C (TA) Voltage - Supply: 2V ~ 6V Number of Bits per Element: 8 Current - Output High, Low: 7.8mA, 7.8mA Supplier Device Package: 20-DIP |
товар відсутній |
|
|
|
74HC7541N,112 | NXP USA Inc. |
Description: IC BUFFER NON-INVERT 6V 20DIP Packaging: Tube Package / Case: 20-DIP (0.300", 7.62mm) Output Type: 3-State Mounting Type: Through Hole Number of Elements: 1 Logic Type: Buffer, Non-Inverting Operating Temperature: -40°C ~ 125°C (TA) Voltage - Supply: 2V ~ 6V Input Type: Schmitt Trigger Number of Bits per Element: 8 Current - Output High, Low: 7.8mA, 7.8mA Supplier Device Package: 20-DIP |
товар відсутній |
|
 |
74HC7731D,112 | NXP USA Inc. |
Description: IC QUAD 64BIT SHIFT REGIS 16SOIC Packaging: Tube Package / Case: 16-SOIC (0.154", 3.90mm Width) Output Type: Push-Pull Mounting Type: Surface Mount Number of Elements: 4 Function: Universal Logic Type: Register, Multiplexed Operating Temperature: -40°C ~ 125°C Voltage - Supply: 2V ~ 6V Supplier Device Package: 16-SO Number of Bits per Element: 64 |
товар відсутній |
|
|
|
74HC7731N,112 | NXP USA Inc. |
Description: IC QUAD 64BIT SHIFT REGIS 16-DIP Packaging: Tube Package / Case: 16-DIP (0.300", 7.62mm) Output Type: Push-Pull Mounting Type: Through Hole Number of Elements: 4 Function: Universal Logic Type: Register, Multiplexed Operating Temperature: -40°C ~ 125°C Voltage - Supply: 2V ~ 6V Supplier Device Package: 16-DIP Number of Bits per Element: 64 |
товар відсутній |
|
|
|
74HC9114N,112 | NXP USA Inc. |
Description: IC INVERT SCHMITT 9CH 1INP 20DIP Packaging: Bulk Features: Schmitt Trigger, Open Drain Package / Case: 20-DIP (0.300", 7.62mm) Mounting Type: Through Hole Logic Type: Inverter Operating Temperature: -40°C ~ 125°C Voltage - Supply: 2V ~ 6V Current - Output High, Low: -, 5.2mA Number of Inputs: 1 Supplier Device Package: 20-DIP Input Logic Level - High: 1.5V ~ 4.2V Max Propagation Delay @ V, Max CL: 19ns @ 6V, 50pF Part Status: Obsolete Number of Circuits: 9 Current - Quiescent (Max): 8 µA |
товар відсутній |
|
|
|
74HC9115N,112 | NXP USA Inc. |
Description: IC BUFFER NON-INVERT 6V 20DIP Packaging: Tube Package / Case: 20-DIP (0.300", 7.62mm) Output Type: Open Drain Mounting Type: Through Hole Number of Elements: 9 Logic Type: Buffer, Non-Inverting Operating Temperature: -40°C ~ 125°C (TA) Voltage - Supply: 2V ~ 6V Input Type: Schmitt Trigger Number of Bits per Element: 1 Current - Output High, Low: -, 5.2mA Supplier Device Package: 20-DIP Part Status: Obsolete |
товар відсутній |
|
|
|
74HC93D,112 | NXP USA Inc. |
Description: IC BINARY COUNTER 4-BIT 14SO Packaging: Tube Package / Case: 14-SOIC (0.154", 3.90mm Width) Mounting Type: Surface Mount Number of Elements: 1 Logic Type: Binary Counter Reset: Asynchronous Operating Temperature: -40°C ~ 125°C Direction: Up Trigger Type: Negative Edge Supplier Device Package: 14-SO Part Status: Obsolete Voltage - Supply: 2 V ~ 6 V Count Rate: 108 MHz Number of Bits per Element: 4 |
товар відсутній |
|
|
|
74HC93DB,112 | NXP USA Inc. |
Description: IC BINARY COUNTER 4-BIT 14SSOP Packaging: Tube Package / Case: 14-SSOP (0.209", 5.30mm Width) Mounting Type: Surface Mount Number of Elements: 1 Logic Type: Binary Counter Reset: Asynchronous Operating Temperature: -40°C ~ 125°C Direction: Up Trigger Type: Negative Edge Supplier Device Package: 14-SSOP Part Status: Obsolete Voltage - Supply: 2 V ~ 6 V Count Rate: 108 MHz Number of Bits per Element: 4 |
товар відсутній |
|
 |
74HCT147D,652 | NXP USA Inc. |
Description: IC PRIORITY ENCOD 1 X 10:4 16SO |
товар відсутній |
|
|
|
74HCT161DB,112 | NXP USA Inc. |
Description: IC BINARY COUNTER 4-BIT 16SSOP Packaging: Tube Package / Case: 16-SSOP (0.209", 5.30mm Width) Mounting Type: Surface Mount Number of Elements: 1 Logic Type: Binary Counter Reset: Asynchronous Operating Temperature: -40°C ~ 125°C Direction: Up Trigger Type: Positive Edge Timing: Synchronous Supplier Device Package: 16-SSOP Part Status: Obsolete Voltage - Supply: 4.5 V ~ 5.5 V Count Rate: 41 MHz Number of Bits per Element: 4 |
товар відсутній |
|
 |
74HCT194D,652 | NXP USA Inc. |
Description: IC 4BIT BI UNIV SHIFT REG 16SOIC Packaging: Tube Package / Case: 16-SOIC (0.154", 3.90mm Width) Output Type: Push-Pull Mounting Type: Surface Mount Number of Elements: 1 Function: Universal Logic Type: Register, Bidirectional Operating Temperature: -40°C ~ 125°C Voltage - Supply: 4.5V ~ 5.5V Supplier Device Package: 16-SO Part Status: Obsolete Number of Bits per Element: 4 |
товар відсутній |
|
|
|
74HCT221DB,112 | NXP USA Inc. |
Description: IC MULTIVIBRATOR 31NS 16SSOP Packaging: Tube Package / Case: 16-SSOP (0.209", 5.30mm Width) Mounting Type: Surface Mount Logic Type: Monostable Operating Temperature: -40°C ~ 125°C Propagation Delay: 31 ns Independent Circuits: 2 Current - Output High, Low: 4mA, 4mA Schmitt Trigger Input: Yes Supplier Device Package: 16-SSOP Part Status: Obsolete Voltage - Supply: 4.5 V ~ 5.5 V |
товар відсутній |
|
|
|
74HCT257N,652 | NXP USA Inc. |
Description: IC MULTIPLEXER 4 X 2:1 16DIP Packaging: Tube Package / Case: 16-DIP (0.300", 7.62mm) Mounting Type: Through Hole Circuit: 4 x 2:1 Type: Multiplexer Operating Temperature: -40°C ~ 125°C Voltage - Supply: 4.5V ~ 5.5V Independent Circuits: 1 Current - Output High, Low: 6mA, 6mA Voltage Supply Source: Single Supply Supplier Device Package: 16-DIP Part Status: Obsolete |
товар відсутній |
|
|
|
74HCT299DB,112 | NXP USA Inc. |
Description: IC UNIV SHIFT REGISTER 20SSOP Packaging: Tube Package / Case: 20-SSOP (0.209", 5.30mm Width) Output Type: Tri-State Mounting Type: Surface Mount Number of Elements: 2 Function: Universal Logic Type: Shift Register Operating Temperature: -40°C ~ 125°C Voltage - Supply: 4.5V ~ 5.5V Supplier Device Package: 20-SSOP Number of Bits per Element: 8 |
товар відсутній |
|
|
|
74HCT366N,652 | NXP USA Inc. |
Description: IC BUFFER INVERT 5.5V 16DIP Packaging: Bulk Package / Case: 16-DIP (0.300", 7.62mm) Output Type: 3-State Mounting Type: Through Hole Number of Elements: 1 Logic Type: Buffer, Inverting Operating Temperature: -40°C ~ 125°C (TA) Voltage - Supply: 4.5V ~ 5.5V Number of Bits per Element: 6 Current - Output High, Low: 6mA, 6mA Supplier Device Package: 16-DIP Part Status: Obsolete |
товар відсутній |
|
|
|
74HCT4002N,112 | NXP USA Inc. |
Description: IC GATE NOR 2CH 4-INP 14DIP Packaging: Tube Package / Case: 14-DIP (0.300", 7.62mm) Mounting Type: Through Hole Logic Type: NOR Gate Operating Temperature: -40°C ~ 125°C Voltage - Supply: 4.5V ~ 5.5V Current - Output High, Low: 4mA, 4mA Number of Inputs: 4 Supplier Device Package: 14-DIP Input Logic Level - High: 2V Input Logic Level - Low: 0.8V Max Propagation Delay @ V, Max CL: 22ns @ 4.5V, 50pF Number of Circuits: 2 Current - Quiescent (Max): 2 µA |
товар відсутній |
|
 |
74HCT40105D,112 | NXP USA Inc. |
Description: IC FIFO ASYNC 16X4 40NS 16SO Packaging: Tube Package / Case: 16-SOIC (0.154", 3.90mm Width) Mounting Type: Surface Mount Function: Asynchronous Memory Size: 64 (16 x 4) Operating Temperature: -40°C ~ 125°C Data Rate: 28MHz Access Time: 40ns Supplier Device Package: 16-SO Bus Directional: Uni-Directional Expansion Type: Depth, Width Programmable Flags Support: No Retransmit Capability: No FWFT Support: No Part Status: Obsolete Voltage - Supply: 4.5 V ~ 5.5 V DigiKey Programmable: Not Verified |
товар відсутній |
|
|
|
74HCT40105N,112 | NXP USA Inc. |
Description: IC FIFO ASYNC 16X4 40NS 16DIP Packaging: Tube Package / Case: 16-DIP (0.300", 7.62mm) Mounting Type: Through Hole Function: Asynchronous Memory Size: 64 (16 x 4) Operating Temperature: -40°C ~ 125°C Data Rate: 28MHz Access Time: 40ns Supplier Device Package: 16-DIP Bus Directional: Uni-Directional Expansion Type: Depth, Width Programmable Flags Support: No Retransmit Capability: No FWFT Support: No Part Status: Obsolete Voltage - Supply: 4.5 V ~ 5.5 V DigiKey Programmable: Not Verified |
товар відсутній |
|
|
|
74HCT4015D,112 | NXP USA Inc. |
Description: IC DUAL 4BIT SHIFT REG 16-SOIC Packaging: Tube Package / Case: 16-SOIC (0.154", 3.90mm Width) Output Type: Push-Pull Mounting Type: Surface Mount Number of Elements: 2 Function: Serial to Parallel Logic Type: Shift Register Operating Temperature: -40°C ~ 125°C Voltage - Supply: 4.5V ~ 5.5V Supplier Device Package: 16-SO Part Status: Obsolete Number of Bits per Element: 4 |
товар відсутній |
|
|
|
74HCT4015N,112 | NXP USA Inc. |
Description: IC DUAL 4BIT SHIFT REG 16-DIP Packaging: Tube Package / Case: 16-DIP (0.300", 7.62mm) Output Type: Push-Pull Mounting Type: Through Hole Number of Elements: 2 Function: Serial to Parallel Logic Type: Shift Register Operating Temperature: -40°C ~ 125°C Voltage - Supply: 4.5V ~ 5.5V Supplier Device Package: 16-DIP Number of Bits per Element: 4 |
товар відсутній |
|
|
|
74HCT4016N,112 | NXP USA Inc. |
Description: IC SWITCH SPST-NOX2 95OHM 14DIP Packaging: Tube Package / Case: 14-DIP (0.300", 7.62mm) Mounting Type: Through Hole Operating Temperature: -40°C ~ 125°C (TA) On-State Resistance (Max): 95Ohm -3db Bandwidth: 200MHz Supplier Device Package: 14-DIP Voltage - Supply, Single (V+): 4.5V ~ 5.5V Crosstalk: -60dB @ 1MHz Switch Circuit: SPST - NO Multiplexer/Demultiplexer Circuit: 1:1 Channel-to-Channel Matching (ΔRon): 5Ohm Switch Time (Ton, Toff) (Max): 30ns, 44ns Channel Capacitance (CS(off), CD(off)): 3.5pF Current - Leakage (IS(off)) (Max): 1µA Part Status: Obsolete Number of Circuits: 2 |
товар відсутній |
|
|
|
74HCT4017N,652 | NXP USA Inc. |
Description: IC DECADE COUNTER 10BIT 16DIP Packaging: Tube Package / Case: 16-DIP (0.300", 7.62mm) Mounting Type: Through Hole Number of Elements: 1 Logic Type: Counter, Decade Reset: Asynchronous Operating Temperature: -40°C ~ 125°C (TA) Direction: Up Trigger Type: Positive, Negative Timing: Synchronous Supplier Device Package: 16-DIP Part Status: Obsolete Voltage - Supply: 4.5 V ~ 5.5 V Count Rate: 67 MHz Number of Bits per Element: 10 |
товар відсутній |
|
 |
74HCT4059D,112 | NXP USA Inc. |
Description: IC DIVIDER BY N 16-BIT 24SO Packaging: Tube Package / Case: 24-SOIC (0.295", 7.50mm Width) Mounting Type: Surface Mount Number of Elements: 1 Logic Type: Divide-by-N Reset: Asynchronous Operating Temperature: -40°C ~ 125°C Direction: Down Trigger Type: Positive Edge Timing: Synchronous Supplier Device Package: 24-SO Part Status: Obsolete Voltage - Supply: 4.5 V ~ 5.5 V Count Rate: 36 MHz Number of Bits per Element: 16 |
товар відсутній |
|
 |
74HCT4067N,112 | NXP USA Inc. |
Description: IC MUX 16:1 120OHM 24DIP Packaging: Tube Package / Case: 24-DIP (0.600", 15.24mm) Mounting Type: Through Hole Operating Temperature: -40°C ~ 125°C (TA) On-State Resistance (Max): 120Ohm -3db Bandwidth: 100MHz Supplier Device Package: 24-DIP Voltage - Supply, Single (V+): 4.5V ~ 5.5V Multiplexer/Demultiplexer Circuit: 16:1 Channel-to-Channel Matching (ΔRon): 6Ohm Switch Time (Ton, Toff) (Max): 65ns, 60ns Channel Capacitance (CS(off), CD(off)): 3.5pF Current - Leakage (IS(off)) (Max): 800nA Part Status: Obsolete Number of Circuits: 1 |
товар відсутній |
|
|
|
74HCT423DB,112 | NXP USA Inc. |
Description: IC MULTIVIBRATOR 22NS 16SSOP Packaging: Tube Package / Case: 16-SSOP (0.209", 5.30mm Width) Mounting Type: Surface Mount Logic Type: Monostable Operating Temperature: -40°C ~ 125°C Propagation Delay: 22 ns Independent Circuits: 2 Current - Output High, Low: 4mA, 4mA Schmitt Trigger Input: No Supplier Device Package: 16-SSOP Voltage - Supply: 4.5 V ~ 5.5 V |
товар відсутній |
|
|
|
74HCT42D,652 | NXP USA Inc. |
Description: IC BCD TO DECIMAL DECODER 16SOIC |
товар відсутній |
|
|
|
74HCT4515D,652 | NXP USA Inc. |
Description: IC DECODER/DEMUX 1X4:16 24SO Packaging: Tube Package / Case: 24-SOIC (0.295", 7.50mm Width) Mounting Type: Surface Mount Circuit: 1 x 4:16 Type: Decoder/Demultiplexer Operating Temperature: -40°C ~ 125°C Voltage - Supply: 4.5V ~ 5.5V Independent Circuits: 1 Current - Output High, Low: 4mA, 4mA Voltage Supply Source: Single Supply Supplier Device Package: 24-SO Part Status: Obsolete |
товар відсутній |
|
|
|
74HCT5555D,112 | NXP USA Inc. |
Description: IC OSC TIMER W/OSC 75MHZ 16SOIC Packaging: Tube Package / Case: 16-SOIC (0.154", 3.90mm Width) Mounting Type: Surface Mount Frequency: 75MHz Type: Timer/Oscillator (Single) Operating Temperature: -40°C ~ 125°C Voltage - Supply: 4.5V ~ 5.5V Supplier Device Package: 16-SO Part Status: Obsolete |
товар відсутній |
|
 |
74HCT5555N,112 | NXP USA Inc. |
Description: IC OSC TIMER W/OSC 75MHZ 16-DIP Packaging: Tube Package / Case: 16-DIP (0.300", 7.62mm) Mounting Type: Through Hole Frequency: 75MHz Type: Timer/Oscillator (Single) Operating Temperature: -40°C ~ 125°C Voltage - Supply: 4.5V ~ 5.5V Supplier Device Package: 16-DIP Part Status: Obsolete |
товар відсутній |
|
 |
74HCT640DB,112 | NXP USA Inc. |
Description: IC TXRX INVERT 5.5V 20SSOP |
товар відсутній |
|
|
|
74HCT670DB,112 | NXP USA Inc. |
Description: IC 4X4 REGISTER FILE 3ST 16-SSOP Packaging: Tube Package / Case: 16-SSOP (0.209", 5.30mm Width) Mounting Type: Surface Mount Circuit: 1 x 1:1 Type: Register File Operating Temperature: -40°C ~ 125°C Voltage - Supply: 4.5V ~ 5.5V Independent Circuits: 4 Voltage Supply Source: Single Supply Supplier Device Package: 16-SSOP |
товар відсутній |
|
|
|
74HCT688DB,112 | NXP USA Inc. |
Description: IC COMPARATOR IDENTITY 8B 20SSOP Packaging: Tube Package / Case: 20-SSOP (0.209", 5.30mm Width) Mounting Type: Surface Mount Output: Active Low Type: Identity Comparator Operating Temperature: -40°C ~ 125°C Voltage - Supply: 4.5V ~ 5.5V Current - Quiescent (Iq): 8 µA Current - Output High, Low: 4mA, 4mA Supplier Device Package: 20-SSOP Max Propagation Delay @ V, Max CL: 34ns @ 4.5V, 50pF Output Function: A=B Part Status: Obsolete Number of Bits: 8 |
товар відсутній |
|
|
|
74HCT7030D,112 | NXP USA Inc. |
Description: IC FIFO ASYNC/SYNC 64X9 28SO Packaging: Tube Package / Case: 28-SOIC (0.295", 7.50mm Width) Mounting Type: Surface Mount Function: Asynchronous, Synchronous Memory Size: 576 (64 x 9) Operating Temperature: -40°C ~ 125°C Data Rate: 29MHz Access Time: 40ns Supplier Device Package: 28-SO Bus Directional: Uni-Directional Expansion Type: Depth, Width Programmable Flags Support: No Retransmit Capability: No FWFT Support: No Voltage - Supply: 4.5 V ~ 5.5 V DigiKey Programmable: Not Verified |
товар відсутній |
|
 |
74HCT7030N,112 | NXP USA Inc. |
Description: IC FIFO ASYNC/SYNC 64X9 28DIP Packaging: Tube Package / Case: 28-DIP (0.600", 15.24mm) Mounting Type: Through Hole Function: Asynchronous, Synchronous Memory Size: 576 (64 x 9) Operating Temperature: -40°C ~ 125°C Data Rate: 29MHz Access Time: 40ns Supplier Device Package: 28-DIP Bus Directional: Uni-Directional Expansion Type: Depth, Width Programmable Flags Support: No Retransmit Capability: No FWFT Support: No Voltage - Supply: 4.5 V ~ 5.5 V DigiKey Programmable: Not Verified |
товар відсутній |
|
|
|
74HCT7273N,112 | NXP USA Inc. |
Description: IC FF D-TYPE SNGL 8BIT 20DIP Packaging: Tube Package / Case: 20-DIP (0.300", 7.62mm) Output Type: Non-Inverted Mounting Type: Through Hole Number of Elements: 1 Function: Master Reset Type: D-Type Operating Temperature: -40°C ~ 125°C (TA) Voltage - Supply: 4.5V ~ 5.5V Current - Quiescent (Iq): 8 µA Current - Output High, Low: -, 4mA Trigger Type: Positive Edge Clock Frequency: 56 MHz Input Capacitance: 3.5 pF Supplier Device Package: 20-DIP Max Propagation Delay @ V, Max CL: 30ns @ 4.5V, 50pF Number of Bits per Element: 8 |
товар відсутній |
|
|
|
74HCT7403N,112 | NXP USA Inc. |
Description: IC FIFO ASYNC/SYNC 64X4 16DIP Packaging: Tube Package / Case: 16-DIP (0.300", 7.62mm) Mounting Type: Through Hole Function: Asynchronous, Synchronous Memory Size: 256 (64 x 4) Operating Temperature: -40°C ~ 125°C Data Rate: 30MHz Access Time: 61ns Current - Supply (Max): 1mA Supplier Device Package: 16-DIP Bus Directional: Uni-Directional Expansion Type: Depth, Width Programmable Flags Support: No Retransmit Capability: No FWFT Support: No Part Status: Obsolete Voltage - Supply: 4.5 V ~ 5.5 V DigiKey Programmable: Not Verified |
товар відсутній |
|
 |
74HCT7540N,112 | NXP USA Inc. |
Description: IC BUFFER INVERT 5.5V 20DIP |
товар відсутній |
|
|
|
74HCT7541N,112 | NXP USA Inc. |
Description: IC BUFFER NON-INVERT 5.5V 20DIP |
товар відсутній |
|
|
|
74HCT7731D,112 | NXP USA Inc. |
Description: IC QUAD 64BIT SHIFT REG 16-SOIC Packaging: Tube Package / Case: 16-SOIC (0.154", 3.90mm Width) Output Type: Push-Pull Mounting Type: Surface Mount Number of Elements: 4 Function: Universal Logic Type: Register, Multiplexed Operating Temperature: -40°C ~ 125°C Voltage - Supply: 4.5V ~ 5.5V Supplier Device Package: 16-SO Number of Bits per Element: 64 |
товар відсутній |
|
|
|
74HCT7731N,112 | NXP USA Inc. |
Description: IC QUAD 64BIT SHIFT REG 16-DIP Packaging: Tube Package / Case: 16-DIP (0.300", 7.62mm) Output Type: Push-Pull Mounting Type: Through Hole Number of Elements: 4 Function: Universal Logic Type: Register, Multiplexed Operating Temperature: -40°C ~ 125°C Voltage - Supply: 4.5V ~ 5.5V Supplier Device Package: 16-DIP Number of Bits per Element: 64 |
товар відсутній |
|
|
|
74HCT9046AN,112 | NXP USA Inc. |
Description: IC PHASE LOCK LOOP 16DIP Packaging: Tube Package / Case: 16-DIP (0.300", 7.62mm) Mounting Type: Through Hole Output: Clock Frequency - Max: 19MHz Type: Phase Lock Loop (PLL) Input: Clock Operating Temperature: -40°C ~ 125°C Voltage - Supply: 4.5V ~ 5.5V Ratio - Input:Output: 2:2 Differential - Input:Output: No/No Supplier Device Package: 16-DIP PLL: Yes Divider/Multiplier: No/No Part Status: Obsolete Number of Circuits: 1 DigiKey Programmable: Not Verified |
товар відсутній |
|
 |
74HCT9115D,112 | NXP USA Inc. |
Description: IC BUFFER NON-INVERT 5.5V 20SO |
товар відсутній |
|
|
|
74HCT9115N,112 | NXP USA Inc. |
Description: IC BUFFER NON-INVERT 5.5V 20DIP |
товар відсутній |
|
 |
74HCT93D,112 | NXP USA Inc. |
Description: IC BINARY COUNTER 4-BIT 14SO Packaging: Tube Package / Case: 14-SOIC (0.154", 3.90mm Width) Mounting Type: Surface Mount Number of Elements: 1 Logic Type: Binary Counter Reset: Asynchronous Operating Temperature: -40°C ~ 125°C Direction: Up Trigger Type: Negative Edge Supplier Device Package: 14-SO Part Status: Obsolete Voltage - Supply: 4.5 V ~ 5.5 V Count Rate: 70 MHz Number of Bits per Element: 4 |
товар відсутній |
|
|
|
74LV04N,112 | NXP USA Inc. |
Description: IC INVERTER 6CH 1-INP 14DIP Packaging: Tube Package / Case: 14-DIP (0.300", 7.62mm) Mounting Type: Through Hole Logic Type: Inverter Operating Temperature: -40°C ~ 125°C Voltage - Supply: 1V ~ 5.5V Current - Output High, Low: 12mA, 12mA Number of Inputs: 1 Supplier Device Package: 14-DIP Input Logic Level - High: 0.9V ~ 2V Input Logic Level - Low: 0.3V ~ 0.8V Max Propagation Delay @ V, Max CL: 8ns @ 3.3V, 50pF Number of Circuits: 6 Current - Quiescent (Max): 40 µA |
товар відсутній |
|
|
|
74LV123N,112 | NXP USA Inc. |
Description: IC MULTIVIBRATOR 14NS 16DIP Packaging: Tube Package / Case: 16-DIP (0.300", 7.62mm) Mounting Type: Through Hole Logic Type: Monostable Operating Temperature: -40°C ~ 125°C Propagation Delay: 14 ns Independent Circuits: 2 Current - Output High, Low: 12mA, 12mA Schmitt Trigger Input: No Supplier Device Package: 16-DIP Part Status: Obsolete Voltage - Supply: 1 V ~ 5.5 V |
товар відсутній |
|
|
|
74LV125N,112 | NXP USA Inc. |
Description: IC BUFFER NON-INVERT 5.5V 14DIP Packaging: Tube Package / Case: 14-DIP (0.300", 7.62mm) Output Type: 3-State Mounting Type: Through Hole Number of Elements: 4 Logic Type: Buffer, Non-Inverting Operating Temperature: -40°C ~ 125°C (TA) Voltage - Supply: 1V ~ 5.5V Number of Bits per Element: 1 Current - Output High, Low: 16mA, 16mA Supplier Device Package: 14-DIP Part Status: Obsolete |
товар відсутній |
|
|
|
74LV138N,112 | NXP USA Inc. |
Description: IC DECODER/DEMUX 1X3:8 16DIP Packaging: Tube Package / Case: 16-DIP (0.300", 7.62mm) Mounting Type: Through Hole Circuit: 1 x 3:8 Type: Decoder/Demultiplexer Operating Temperature: -40°C ~ 125°C Voltage - Supply: 1V ~ 5.5V Independent Circuits: 1 Current - Output High, Low: 12mA, 12mA Voltage Supply Source: Single Supply Supplier Device Package: 16-DIP Part Status: Obsolete |
товар відсутній |
|
|
|
74LV139N,112 | NXP USA Inc. |
Description: IC DECODER/DEMUX 1X2:4 16DIP Packaging: Tube Package / Case: 16-DIP (0.300", 7.62mm) Mounting Type: Through Hole Circuit: 1 x 2:4 Type: Decoder/Demultiplexer Operating Temperature: -40°C ~ 125°C Voltage - Supply: 1V ~ 5.5V Independent Circuits: 2 Current - Output High, Low: 12mA, 12mA Voltage Supply Source: Single Supply Supplier Device Package: 16-DIP Part Status: Obsolete |
товар відсутній |
|
|
|
74LV14N,112 | NXP USA Inc. |
Description: IC INVERT SCHMITT 6CH 1INP 14DIP Packaging: Tube Features: Schmitt Trigger Package / Case: 14-DIP (0.300", 7.62mm) Mounting Type: Through Hole Logic Type: Inverter Operating Temperature: -40°C ~ 125°C Voltage - Supply: 1V ~ 5.5V Current - Output High, Low: 12mA, 12mA Number of Inputs: 1 Supplier Device Package: 14-DIP Input Logic Level - High: 1.4V ~ 3.85V Input Logic Level - Low: 0.3V ~ 1.1V Max Propagation Delay @ V, Max CL: 15ns @ 3.3V, 50pF Part Status: Obsolete Number of Circuits: 6 Current - Quiescent (Max): 40 µA |
товар відсутній |
| 74HC640DB,112 |
|
Виробник: NXP USA Inc.
Description: IC TRANSCEIVER INVERT 6V 20SSOP
Packaging: Tube
Package / Case: 20-SSOP (0.209", 5.30mm Width)
Output Type: 3-State
Mounting Type: Surface Mount
Number of Elements: 1
Logic Type: Transceiver, Inverting
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 2V ~ 6V
Number of Bits per Element: 8
Current - Output High, Low: 7.8mA, 7.8mA
Supplier Device Package: 20-SSOP
Part Status: Obsolete
Description: IC TRANSCEIVER INVERT 6V 20SSOP
Packaging: Tube
Package / Case: 20-SSOP (0.209", 5.30mm Width)
Output Type: 3-State
Mounting Type: Surface Mount
Number of Elements: 1
Logic Type: Transceiver, Inverting
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 2V ~ 6V
Number of Bits per Element: 8
Current - Output High, Low: 7.8mA, 7.8mA
Supplier Device Package: 20-SSOP
Part Status: Obsolete
товар відсутній
| 74HC670DB,112 |
|
Виробник: NXP USA Inc.
Description: IC 4X4 REGISTER FILE 3ST 16SSOP
Packaging: Tube
Package / Case: 16-SSOP (0.209", 5.30mm Width)
Output Type: Tri-State
Mounting Type: Surface Mount
Number of Elements: 1
Function: Universal
Logic Type: Register File
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 2V ~ 6V
Supplier Device Package: 16-SSOP
Part Status: Obsolete
Number of Bits per Element: 4
Circuit: 1 x 1:1
Type: Register File
Independent Circuits: 4
Voltage Supply Source: Single Supply
Description: IC 4X4 REGISTER FILE 3ST 16SSOP
Packaging: Tube
Package / Case: 16-SSOP (0.209", 5.30mm Width)
Output Type: Tri-State
Mounting Type: Surface Mount
Number of Elements: 1
Function: Universal
Logic Type: Register File
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 2V ~ 6V
Supplier Device Package: 16-SSOP
Part Status: Obsolete
Number of Bits per Element: 4
Circuit: 1 x 1:1
Type: Register File
Independent Circuits: 4
Voltage Supply Source: Single Supply
товар відсутній
| 74HC7014N,112 |
|
Виробник: NXP USA Inc.
Description: IC BUFFER NON-INVERT 6V 14DIP
Packaging: Tube
Package / Case: 14-DIP (0.300", 7.62mm)
Output Type: Push-Pull
Mounting Type: Through Hole
Number of Elements: 6
Logic Type: Buffer, Non-Inverting
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 2V ~ 6V
Input Type: Schmitt Trigger
Number of Bits per Element: 1
Current - Output High, Low: 5.2mA, 5.2mA
Supplier Device Package: 14-DIP
Part Status: Obsolete
Description: IC BUFFER NON-INVERT 6V 14DIP
Packaging: Tube
Package / Case: 14-DIP (0.300", 7.62mm)
Output Type: Push-Pull
Mounting Type: Through Hole
Number of Elements: 6
Logic Type: Buffer, Non-Inverting
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 2V ~ 6V
Input Type: Schmitt Trigger
Number of Bits per Element: 1
Current - Output High, Low: 5.2mA, 5.2mA
Supplier Device Package: 14-DIP
Part Status: Obsolete
товар відсутній
| 74HC7030D,652 |
|
Виробник: NXP USA Inc.
Description: IC FIFO ASYNC/SYNC 64X9 28SO
Packaging: Tube
Package / Case: 28-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Function: Asynchronous, Synchronous
Memory Size: 576 (64 x 9)
Operating Temperature: -40°C ~ 125°C
Data Rate: 33MHz
Access Time: 36ns
Supplier Device Package: 28-SO
Bus Directional: Uni-Directional
Expansion Type: Depth, Width
Programmable Flags Support: No
Retransmit Capability: No
FWFT Support: No
Part Status: Obsolete
Voltage - Supply: 2 V ~ 6 V
DigiKey Programmable: Not Verified
Description: IC FIFO ASYNC/SYNC 64X9 28SO
Packaging: Tube
Package / Case: 28-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Function: Asynchronous, Synchronous
Memory Size: 576 (64 x 9)
Operating Temperature: -40°C ~ 125°C
Data Rate: 33MHz
Access Time: 36ns
Supplier Device Package: 28-SO
Bus Directional: Uni-Directional
Expansion Type: Depth, Width
Programmable Flags Support: No
Retransmit Capability: No
FWFT Support: No
Part Status: Obsolete
Voltage - Supply: 2 V ~ 6 V
DigiKey Programmable: Not Verified
товар відсутній
| 74HC7046ADB,112 |
|
Виробник: NXP USA Inc.
Description: IC PHASE LOCK LOOP 16SSOP
Packaging: Tube
Package / Case: 16-SSOP (0.209", 5.30mm Width)
Mounting Type: Surface Mount
Output: Clock
Frequency - Max: 21MHz
Type: Phase Lock Loop (PLL)
Input: Clock
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 3V ~ 6V
Ratio - Input:Output: 2:3
Differential - Input:Output: No/No
Supplier Device Package: 16-SSOP
PLL: Yes
Divider/Multiplier: No/No
Part Status: Obsolete
Number of Circuits: 1
DigiKey Programmable: Not Verified
Description: IC PHASE LOCK LOOP 16SSOP
Packaging: Tube
Package / Case: 16-SSOP (0.209", 5.30mm Width)
Mounting Type: Surface Mount
Output: Clock
Frequency - Max: 21MHz
Type: Phase Lock Loop (PLL)
Input: Clock
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 3V ~ 6V
Ratio - Input:Output: 2:3
Differential - Input:Output: No/No
Supplier Device Package: 16-SSOP
PLL: Yes
Divider/Multiplier: No/No
Part Status: Obsolete
Number of Circuits: 1
DigiKey Programmable: Not Verified
товар відсутній
| 74HC7266D,652 |
|
Виробник: NXP USA Inc.
Description: IC GATE XNOR 4CH 2-INP 14SO
Packaging: Tube
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Logic Type: XNOR (Exclusive NOR)
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 2V ~ 6V
Current - Output High, Low: 5.2mA, 5.2mA
Number of Inputs: 2
Supplier Device Package: 14-SO
Input Logic Level - High: 1.5V ~ 4.2V
Input Logic Level - Low: 0.5V ~ 1.8V
Max Propagation Delay @ V, Max CL: 20ns @ 6V, 50pF
Part Status: Obsolete
Number of Circuits: 4
Current - Quiescent (Max): 2 µA
Description: IC GATE XNOR 4CH 2-INP 14SO
Packaging: Tube
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Logic Type: XNOR (Exclusive NOR)
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 2V ~ 6V
Current - Output High, Low: 5.2mA, 5.2mA
Number of Inputs: 2
Supplier Device Package: 14-SO
Input Logic Level - High: 1.5V ~ 4.2V
Input Logic Level - Low: 0.5V ~ 1.8V
Max Propagation Delay @ V, Max CL: 20ns @ 6V, 50pF
Part Status: Obsolete
Number of Circuits: 4
Current - Quiescent (Max): 2 µA
товар відсутній
| 74HC7266DB,112 |
|
Виробник: NXP USA Inc.
Description: IC GATE XNOR 4CH 2-INP 14SSOP
Packaging: Tube
Package / Case: 14-SSOP (0.209", 5.30mm Width)
Mounting Type: Surface Mount
Logic Type: XNOR (Exclusive NOR)
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 2V ~ 6V
Current - Output High, Low: 5.2mA, 5.2mA
Number of Inputs: 2
Supplier Device Package: 14-SSOP
Input Logic Level - High: 1.5V ~ 4.2V
Input Logic Level - Low: 0.5V ~ 1.8V
Max Propagation Delay @ V, Max CL: 20ns @ 6V, 50pF
Part Status: Obsolete
Number of Circuits: 4
Current - Quiescent (Max): 2 µA
Description: IC GATE XNOR 4CH 2-INP 14SSOP
Packaging: Tube
Package / Case: 14-SSOP (0.209", 5.30mm Width)
Mounting Type: Surface Mount
Logic Type: XNOR (Exclusive NOR)
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 2V ~ 6V
Current - Output High, Low: 5.2mA, 5.2mA
Number of Inputs: 2
Supplier Device Package: 14-SSOP
Input Logic Level - High: 1.5V ~ 4.2V
Input Logic Level - Low: 0.5V ~ 1.8V
Max Propagation Delay @ V, Max CL: 20ns @ 6V, 50pF
Part Status: Obsolete
Number of Circuits: 4
Current - Quiescent (Max): 2 µA
товар відсутній
| 74HC7403N,112 |
|
Виробник: NXP USA Inc.
Description: IC FIFO ASYNC/SYNC 64X4 16DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Function: Asynchronous, Synchronous
Memory Size: 256 (64 x 4)
Operating Temperature: -40°C ~ 125°C
Data Rate: 30MHz
Access Time: 49ns
Current - Supply (Max): 1mA
Supplier Device Package: 16-DIP
Bus Directional: Uni-Directional
Expansion Type: Depth, Width
Programmable Flags Support: No
Retransmit Capability: No
FWFT Support: No
Part Status: Obsolete
Voltage - Supply: 2 V ~ 6 V
DigiKey Programmable: Not Verified
Description: IC FIFO ASYNC/SYNC 64X4 16DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Function: Asynchronous, Synchronous
Memory Size: 256 (64 x 4)
Operating Temperature: -40°C ~ 125°C
Data Rate: 30MHz
Access Time: 49ns
Current - Supply (Max): 1mA
Supplier Device Package: 16-DIP
Bus Directional: Uni-Directional
Expansion Type: Depth, Width
Programmable Flags Support: No
Retransmit Capability: No
FWFT Support: No
Part Status: Obsolete
Voltage - Supply: 2 V ~ 6 V
DigiKey Programmable: Not Verified
товар відсутній
| 74HC7540N,112 |
|
Виробник: NXP USA Inc.
Description: IC BUFFER INVERT 6V 20DIP
Packaging: Tube
Package / Case: 20-DIP (0.300", 7.62mm)
Output Type: 3-State
Mounting Type: Through Hole
Number of Elements: 1
Logic Type: Buffer, Inverting
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 2V ~ 6V
Number of Bits per Element: 8
Current - Output High, Low: 7.8mA, 7.8mA
Supplier Device Package: 20-DIP
Description: IC BUFFER INVERT 6V 20DIP
Packaging: Tube
Package / Case: 20-DIP (0.300", 7.62mm)
Output Type: 3-State
Mounting Type: Through Hole
Number of Elements: 1
Logic Type: Buffer, Inverting
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 2V ~ 6V
Number of Bits per Element: 8
Current - Output High, Low: 7.8mA, 7.8mA
Supplier Device Package: 20-DIP
товар відсутній
| 74HC7541N,112 |
|
Виробник: NXP USA Inc.
Description: IC BUFFER NON-INVERT 6V 20DIP
Packaging: Tube
Package / Case: 20-DIP (0.300", 7.62mm)
Output Type: 3-State
Mounting Type: Through Hole
Number of Elements: 1
Logic Type: Buffer, Non-Inverting
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 2V ~ 6V
Input Type: Schmitt Trigger
Number of Bits per Element: 8
Current - Output High, Low: 7.8mA, 7.8mA
Supplier Device Package: 20-DIP
Description: IC BUFFER NON-INVERT 6V 20DIP
Packaging: Tube
Package / Case: 20-DIP (0.300", 7.62mm)
Output Type: 3-State
Mounting Type: Through Hole
Number of Elements: 1
Logic Type: Buffer, Non-Inverting
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 2V ~ 6V
Input Type: Schmitt Trigger
Number of Bits per Element: 8
Current - Output High, Low: 7.8mA, 7.8mA
Supplier Device Package: 20-DIP
товар відсутній
| 74HC7731D,112 |
|
Виробник: NXP USA Inc.
Description: IC QUAD 64BIT SHIFT REGIS 16SOIC
Packaging: Tube
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Output Type: Push-Pull
Mounting Type: Surface Mount
Number of Elements: 4
Function: Universal
Logic Type: Register, Multiplexed
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 2V ~ 6V
Supplier Device Package: 16-SO
Number of Bits per Element: 64
Description: IC QUAD 64BIT SHIFT REGIS 16SOIC
Packaging: Tube
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Output Type: Push-Pull
Mounting Type: Surface Mount
Number of Elements: 4
Function: Universal
Logic Type: Register, Multiplexed
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 2V ~ 6V
Supplier Device Package: 16-SO
Number of Bits per Element: 64
товар відсутній
| 74HC7731N,112 |
|
Виробник: NXP USA Inc.
Description: IC QUAD 64BIT SHIFT REGIS 16-DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Output Type: Push-Pull
Mounting Type: Through Hole
Number of Elements: 4
Function: Universal
Logic Type: Register, Multiplexed
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 2V ~ 6V
Supplier Device Package: 16-DIP
Number of Bits per Element: 64
Description: IC QUAD 64BIT SHIFT REGIS 16-DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Output Type: Push-Pull
Mounting Type: Through Hole
Number of Elements: 4
Function: Universal
Logic Type: Register, Multiplexed
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 2V ~ 6V
Supplier Device Package: 16-DIP
Number of Bits per Element: 64
товар відсутній
| 74HC9114N,112 |
|
Виробник: NXP USA Inc.
Description: IC INVERT SCHMITT 9CH 1INP 20DIP
Packaging: Bulk
Features: Schmitt Trigger, Open Drain
Package / Case: 20-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Logic Type: Inverter
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 2V ~ 6V
Current - Output High, Low: -, 5.2mA
Number of Inputs: 1
Supplier Device Package: 20-DIP
Input Logic Level - High: 1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL: 19ns @ 6V, 50pF
Part Status: Obsolete
Number of Circuits: 9
Current - Quiescent (Max): 8 µA
Description: IC INVERT SCHMITT 9CH 1INP 20DIP
Packaging: Bulk
Features: Schmitt Trigger, Open Drain
Package / Case: 20-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Logic Type: Inverter
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 2V ~ 6V
Current - Output High, Low: -, 5.2mA
Number of Inputs: 1
Supplier Device Package: 20-DIP
Input Logic Level - High: 1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL: 19ns @ 6V, 50pF
Part Status: Obsolete
Number of Circuits: 9
Current - Quiescent (Max): 8 µA
товар відсутній
| 74HC9115N,112 |
|
Виробник: NXP USA Inc.
Description: IC BUFFER NON-INVERT 6V 20DIP
Packaging: Tube
Package / Case: 20-DIP (0.300", 7.62mm)
Output Type: Open Drain
Mounting Type: Through Hole
Number of Elements: 9
Logic Type: Buffer, Non-Inverting
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 2V ~ 6V
Input Type: Schmitt Trigger
Number of Bits per Element: 1
Current - Output High, Low: -, 5.2mA
Supplier Device Package: 20-DIP
Part Status: Obsolete
Description: IC BUFFER NON-INVERT 6V 20DIP
Packaging: Tube
Package / Case: 20-DIP (0.300", 7.62mm)
Output Type: Open Drain
Mounting Type: Through Hole
Number of Elements: 9
Logic Type: Buffer, Non-Inverting
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 2V ~ 6V
Input Type: Schmitt Trigger
Number of Bits per Element: 1
Current - Output High, Low: -, 5.2mA
Supplier Device Package: 20-DIP
Part Status: Obsolete
товар відсутній
| 74HC93D,112 |
|
Виробник: NXP USA Inc.
Description: IC BINARY COUNTER 4-BIT 14SO
Packaging: Tube
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Number of Elements: 1
Logic Type: Binary Counter
Reset: Asynchronous
Operating Temperature: -40°C ~ 125°C
Direction: Up
Trigger Type: Negative Edge
Supplier Device Package: 14-SO
Part Status: Obsolete
Voltage - Supply: 2 V ~ 6 V
Count Rate: 108 MHz
Number of Bits per Element: 4
Description: IC BINARY COUNTER 4-BIT 14SO
Packaging: Tube
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Number of Elements: 1
Logic Type: Binary Counter
Reset: Asynchronous
Operating Temperature: -40°C ~ 125°C
Direction: Up
Trigger Type: Negative Edge
Supplier Device Package: 14-SO
Part Status: Obsolete
Voltage - Supply: 2 V ~ 6 V
Count Rate: 108 MHz
Number of Bits per Element: 4
товар відсутній
| 74HC93DB,112 |
|
Виробник: NXP USA Inc.
Description: IC BINARY COUNTER 4-BIT 14SSOP
Packaging: Tube
Package / Case: 14-SSOP (0.209", 5.30mm Width)
Mounting Type: Surface Mount
Number of Elements: 1
Logic Type: Binary Counter
Reset: Asynchronous
Operating Temperature: -40°C ~ 125°C
Direction: Up
Trigger Type: Negative Edge
Supplier Device Package: 14-SSOP
Part Status: Obsolete
Voltage - Supply: 2 V ~ 6 V
Count Rate: 108 MHz
Number of Bits per Element: 4
Description: IC BINARY COUNTER 4-BIT 14SSOP
Packaging: Tube
Package / Case: 14-SSOP (0.209", 5.30mm Width)
Mounting Type: Surface Mount
Number of Elements: 1
Logic Type: Binary Counter
Reset: Asynchronous
Operating Temperature: -40°C ~ 125°C
Direction: Up
Trigger Type: Negative Edge
Supplier Device Package: 14-SSOP
Part Status: Obsolete
Voltage - Supply: 2 V ~ 6 V
Count Rate: 108 MHz
Number of Bits per Element: 4
товар відсутній
| 74HCT161DB,112 |
|
Виробник: NXP USA Inc.
Description: IC BINARY COUNTER 4-BIT 16SSOP
Packaging: Tube
Package / Case: 16-SSOP (0.209", 5.30mm Width)
Mounting Type: Surface Mount
Number of Elements: 1
Logic Type: Binary Counter
Reset: Asynchronous
Operating Temperature: -40°C ~ 125°C
Direction: Up
Trigger Type: Positive Edge
Timing: Synchronous
Supplier Device Package: 16-SSOP
Part Status: Obsolete
Voltage - Supply: 4.5 V ~ 5.5 V
Count Rate: 41 MHz
Number of Bits per Element: 4
Description: IC BINARY COUNTER 4-BIT 16SSOP
Packaging: Tube
Package / Case: 16-SSOP (0.209", 5.30mm Width)
Mounting Type: Surface Mount
Number of Elements: 1
Logic Type: Binary Counter
Reset: Asynchronous
Operating Temperature: -40°C ~ 125°C
Direction: Up
Trigger Type: Positive Edge
Timing: Synchronous
Supplier Device Package: 16-SSOP
Part Status: Obsolete
Voltage - Supply: 4.5 V ~ 5.5 V
Count Rate: 41 MHz
Number of Bits per Element: 4
товар відсутній
| 74HCT194D,652 |
|
Виробник: NXP USA Inc.
Description: IC 4BIT BI UNIV SHIFT REG 16SOIC
Packaging: Tube
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Output Type: Push-Pull
Mounting Type: Surface Mount
Number of Elements: 1
Function: Universal
Logic Type: Register, Bidirectional
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Supplier Device Package: 16-SO
Part Status: Obsolete
Number of Bits per Element: 4
Description: IC 4BIT BI UNIV SHIFT REG 16SOIC
Packaging: Tube
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Output Type: Push-Pull
Mounting Type: Surface Mount
Number of Elements: 1
Function: Universal
Logic Type: Register, Bidirectional
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Supplier Device Package: 16-SO
Part Status: Obsolete
Number of Bits per Element: 4
товар відсутній
| 74HCT221DB,112 |
|
Виробник: NXP USA Inc.
Description: IC MULTIVIBRATOR 31NS 16SSOP
Packaging: Tube
Package / Case: 16-SSOP (0.209", 5.30mm Width)
Mounting Type: Surface Mount
Logic Type: Monostable
Operating Temperature: -40°C ~ 125°C
Propagation Delay: 31 ns
Independent Circuits: 2
Current - Output High, Low: 4mA, 4mA
Schmitt Trigger Input: Yes
Supplier Device Package: 16-SSOP
Part Status: Obsolete
Voltage - Supply: 4.5 V ~ 5.5 V
Description: IC MULTIVIBRATOR 31NS 16SSOP
Packaging: Tube
Package / Case: 16-SSOP (0.209", 5.30mm Width)
Mounting Type: Surface Mount
Logic Type: Monostable
Operating Temperature: -40°C ~ 125°C
Propagation Delay: 31 ns
Independent Circuits: 2
Current - Output High, Low: 4mA, 4mA
Schmitt Trigger Input: Yes
Supplier Device Package: 16-SSOP
Part Status: Obsolete
Voltage - Supply: 4.5 V ~ 5.5 V
товар відсутній
| 74HCT257N,652 |
|
Виробник: NXP USA Inc.
Description: IC MULTIPLEXER 4 X 2:1 16DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Circuit: 4 x 2:1
Type: Multiplexer
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Independent Circuits: 1
Current - Output High, Low: 6mA, 6mA
Voltage Supply Source: Single Supply
Supplier Device Package: 16-DIP
Part Status: Obsolete
Description: IC MULTIPLEXER 4 X 2:1 16DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Circuit: 4 x 2:1
Type: Multiplexer
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Independent Circuits: 1
Current - Output High, Low: 6mA, 6mA
Voltage Supply Source: Single Supply
Supplier Device Package: 16-DIP
Part Status: Obsolete
товар відсутній
| 74HCT299DB,112 |
|
Виробник: NXP USA Inc.
Description: IC UNIV SHIFT REGISTER 20SSOP
Packaging: Tube
Package / Case: 20-SSOP (0.209", 5.30mm Width)
Output Type: Tri-State
Mounting Type: Surface Mount
Number of Elements: 2
Function: Universal
Logic Type: Shift Register
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Supplier Device Package: 20-SSOP
Number of Bits per Element: 8
Description: IC UNIV SHIFT REGISTER 20SSOP
Packaging: Tube
Package / Case: 20-SSOP (0.209", 5.30mm Width)
Output Type: Tri-State
Mounting Type: Surface Mount
Number of Elements: 2
Function: Universal
Logic Type: Shift Register
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Supplier Device Package: 20-SSOP
Number of Bits per Element: 8
товар відсутній
| 74HCT366N,652 |
|
Виробник: NXP USA Inc.
Description: IC BUFFER INVERT 5.5V 16DIP
Packaging: Bulk
Package / Case: 16-DIP (0.300", 7.62mm)
Output Type: 3-State
Mounting Type: Through Hole
Number of Elements: 1
Logic Type: Buffer, Inverting
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 4.5V ~ 5.5V
Number of Bits per Element: 6
Current - Output High, Low: 6mA, 6mA
Supplier Device Package: 16-DIP
Part Status: Obsolete
Description: IC BUFFER INVERT 5.5V 16DIP
Packaging: Bulk
Package / Case: 16-DIP (0.300", 7.62mm)
Output Type: 3-State
Mounting Type: Through Hole
Number of Elements: 1
Logic Type: Buffer, Inverting
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 4.5V ~ 5.5V
Number of Bits per Element: 6
Current - Output High, Low: 6mA, 6mA
Supplier Device Package: 16-DIP
Part Status: Obsolete
товар відсутній
| 74HCT4002N,112 |
|
Виробник: NXP USA Inc.
Description: IC GATE NOR 2CH 4-INP 14DIP
Packaging: Tube
Package / Case: 14-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Logic Type: NOR Gate
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Current - Output High, Low: 4mA, 4mA
Number of Inputs: 4
Supplier Device Package: 14-DIP
Input Logic Level - High: 2V
Input Logic Level - Low: 0.8V
Max Propagation Delay @ V, Max CL: 22ns @ 4.5V, 50pF
Number of Circuits: 2
Current - Quiescent (Max): 2 µA
Description: IC GATE NOR 2CH 4-INP 14DIP
Packaging: Tube
Package / Case: 14-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Logic Type: NOR Gate
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Current - Output High, Low: 4mA, 4mA
Number of Inputs: 4
Supplier Device Package: 14-DIP
Input Logic Level - High: 2V
Input Logic Level - Low: 0.8V
Max Propagation Delay @ V, Max CL: 22ns @ 4.5V, 50pF
Number of Circuits: 2
Current - Quiescent (Max): 2 µA
товар відсутній
| 74HCT40105D,112 |
|
Виробник: NXP USA Inc.
Description: IC FIFO ASYNC 16X4 40NS 16SO
Packaging: Tube
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Function: Asynchronous
Memory Size: 64 (16 x 4)
Operating Temperature: -40°C ~ 125°C
Data Rate: 28MHz
Access Time: 40ns
Supplier Device Package: 16-SO
Bus Directional: Uni-Directional
Expansion Type: Depth, Width
Programmable Flags Support: No
Retransmit Capability: No
FWFT Support: No
Part Status: Obsolete
Voltage - Supply: 4.5 V ~ 5.5 V
DigiKey Programmable: Not Verified
Description: IC FIFO ASYNC 16X4 40NS 16SO
Packaging: Tube
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Function: Asynchronous
Memory Size: 64 (16 x 4)
Operating Temperature: -40°C ~ 125°C
Data Rate: 28MHz
Access Time: 40ns
Supplier Device Package: 16-SO
Bus Directional: Uni-Directional
Expansion Type: Depth, Width
Programmable Flags Support: No
Retransmit Capability: No
FWFT Support: No
Part Status: Obsolete
Voltage - Supply: 4.5 V ~ 5.5 V
DigiKey Programmable: Not Verified
товар відсутній
| 74HCT40105N,112 |
|
Виробник: NXP USA Inc.
Description: IC FIFO ASYNC 16X4 40NS 16DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Function: Asynchronous
Memory Size: 64 (16 x 4)
Operating Temperature: -40°C ~ 125°C
Data Rate: 28MHz
Access Time: 40ns
Supplier Device Package: 16-DIP
Bus Directional: Uni-Directional
Expansion Type: Depth, Width
Programmable Flags Support: No
Retransmit Capability: No
FWFT Support: No
Part Status: Obsolete
Voltage - Supply: 4.5 V ~ 5.5 V
DigiKey Programmable: Not Verified
Description: IC FIFO ASYNC 16X4 40NS 16DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Function: Asynchronous
Memory Size: 64 (16 x 4)
Operating Temperature: -40°C ~ 125°C
Data Rate: 28MHz
Access Time: 40ns
Supplier Device Package: 16-DIP
Bus Directional: Uni-Directional
Expansion Type: Depth, Width
Programmable Flags Support: No
Retransmit Capability: No
FWFT Support: No
Part Status: Obsolete
Voltage - Supply: 4.5 V ~ 5.5 V
DigiKey Programmable: Not Verified
товар відсутній
| 74HCT4015D,112 |
|
Виробник: NXP USA Inc.
Description: IC DUAL 4BIT SHIFT REG 16-SOIC
Packaging: Tube
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Output Type: Push-Pull
Mounting Type: Surface Mount
Number of Elements: 2
Function: Serial to Parallel
Logic Type: Shift Register
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Supplier Device Package: 16-SO
Part Status: Obsolete
Number of Bits per Element: 4
Description: IC DUAL 4BIT SHIFT REG 16-SOIC
Packaging: Tube
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Output Type: Push-Pull
Mounting Type: Surface Mount
Number of Elements: 2
Function: Serial to Parallel
Logic Type: Shift Register
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Supplier Device Package: 16-SO
Part Status: Obsolete
Number of Bits per Element: 4
товар відсутній
| 74HCT4015N,112 |
|
Виробник: NXP USA Inc.
Description: IC DUAL 4BIT SHIFT REG 16-DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Output Type: Push-Pull
Mounting Type: Through Hole
Number of Elements: 2
Function: Serial to Parallel
Logic Type: Shift Register
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Supplier Device Package: 16-DIP
Number of Bits per Element: 4
Description: IC DUAL 4BIT SHIFT REG 16-DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Output Type: Push-Pull
Mounting Type: Through Hole
Number of Elements: 2
Function: Serial to Parallel
Logic Type: Shift Register
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Supplier Device Package: 16-DIP
Number of Bits per Element: 4
товар відсутній
| 74HCT4016N,112 |
|
Виробник: NXP USA Inc.
Description: IC SWITCH SPST-NOX2 95OHM 14DIP
Packaging: Tube
Package / Case: 14-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 125°C (TA)
On-State Resistance (Max): 95Ohm
-3db Bandwidth: 200MHz
Supplier Device Package: 14-DIP
Voltage - Supply, Single (V+): 4.5V ~ 5.5V
Crosstalk: -60dB @ 1MHz
Switch Circuit: SPST - NO
Multiplexer/Demultiplexer Circuit: 1:1
Channel-to-Channel Matching (ΔRon): 5Ohm
Switch Time (Ton, Toff) (Max): 30ns, 44ns
Channel Capacitance (CS(off), CD(off)): 3.5pF
Current - Leakage (IS(off)) (Max): 1µA
Part Status: Obsolete
Number of Circuits: 2
Description: IC SWITCH SPST-NOX2 95OHM 14DIP
Packaging: Tube
Package / Case: 14-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 125°C (TA)
On-State Resistance (Max): 95Ohm
-3db Bandwidth: 200MHz
Supplier Device Package: 14-DIP
Voltage - Supply, Single (V+): 4.5V ~ 5.5V
Crosstalk: -60dB @ 1MHz
Switch Circuit: SPST - NO
Multiplexer/Demultiplexer Circuit: 1:1
Channel-to-Channel Matching (ΔRon): 5Ohm
Switch Time (Ton, Toff) (Max): 30ns, 44ns
Channel Capacitance (CS(off), CD(off)): 3.5pF
Current - Leakage (IS(off)) (Max): 1µA
Part Status: Obsolete
Number of Circuits: 2
товар відсутній
| 74HCT4017N,652 |
|
Виробник: NXP USA Inc.
Description: IC DECADE COUNTER 10BIT 16DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Number of Elements: 1
Logic Type: Counter, Decade
Reset: Asynchronous
Operating Temperature: -40°C ~ 125°C (TA)
Direction: Up
Trigger Type: Positive, Negative
Timing: Synchronous
Supplier Device Package: 16-DIP
Part Status: Obsolete
Voltage - Supply: 4.5 V ~ 5.5 V
Count Rate: 67 MHz
Number of Bits per Element: 10
Description: IC DECADE COUNTER 10BIT 16DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Number of Elements: 1
Logic Type: Counter, Decade
Reset: Asynchronous
Operating Temperature: -40°C ~ 125°C (TA)
Direction: Up
Trigger Type: Positive, Negative
Timing: Synchronous
Supplier Device Package: 16-DIP
Part Status: Obsolete
Voltage - Supply: 4.5 V ~ 5.5 V
Count Rate: 67 MHz
Number of Bits per Element: 10
товар відсутній
| 74HCT4059D,112 |
|
Виробник: NXP USA Inc.
Description: IC DIVIDER BY N 16-BIT 24SO
Packaging: Tube
Package / Case: 24-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Number of Elements: 1
Logic Type: Divide-by-N
Reset: Asynchronous
Operating Temperature: -40°C ~ 125°C
Direction: Down
Trigger Type: Positive Edge
Timing: Synchronous
Supplier Device Package: 24-SO
Part Status: Obsolete
Voltage - Supply: 4.5 V ~ 5.5 V
Count Rate: 36 MHz
Number of Bits per Element: 16
Description: IC DIVIDER BY N 16-BIT 24SO
Packaging: Tube
Package / Case: 24-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Number of Elements: 1
Logic Type: Divide-by-N
Reset: Asynchronous
Operating Temperature: -40°C ~ 125°C
Direction: Down
Trigger Type: Positive Edge
Timing: Synchronous
Supplier Device Package: 24-SO
Part Status: Obsolete
Voltage - Supply: 4.5 V ~ 5.5 V
Count Rate: 36 MHz
Number of Bits per Element: 16
товар відсутній
| 74HCT4067N,112 |
|
Виробник: NXP USA Inc.
Description: IC MUX 16:1 120OHM 24DIP
Packaging: Tube
Package / Case: 24-DIP (0.600", 15.24mm)
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 125°C (TA)
On-State Resistance (Max): 120Ohm
-3db Bandwidth: 100MHz
Supplier Device Package: 24-DIP
Voltage - Supply, Single (V+): 4.5V ~ 5.5V
Multiplexer/Demultiplexer Circuit: 16:1
Channel-to-Channel Matching (ΔRon): 6Ohm
Switch Time (Ton, Toff) (Max): 65ns, 60ns
Channel Capacitance (CS(off), CD(off)): 3.5pF
Current - Leakage (IS(off)) (Max): 800nA
Part Status: Obsolete
Number of Circuits: 1
Description: IC MUX 16:1 120OHM 24DIP
Packaging: Tube
Package / Case: 24-DIP (0.600", 15.24mm)
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 125°C (TA)
On-State Resistance (Max): 120Ohm
-3db Bandwidth: 100MHz
Supplier Device Package: 24-DIP
Voltage - Supply, Single (V+): 4.5V ~ 5.5V
Multiplexer/Demultiplexer Circuit: 16:1
Channel-to-Channel Matching (ΔRon): 6Ohm
Switch Time (Ton, Toff) (Max): 65ns, 60ns
Channel Capacitance (CS(off), CD(off)): 3.5pF
Current - Leakage (IS(off)) (Max): 800nA
Part Status: Obsolete
Number of Circuits: 1
товар відсутній
| 74HCT423DB,112 |
|
Виробник: NXP USA Inc.
Description: IC MULTIVIBRATOR 22NS 16SSOP
Packaging: Tube
Package / Case: 16-SSOP (0.209", 5.30mm Width)
Mounting Type: Surface Mount
Logic Type: Monostable
Operating Temperature: -40°C ~ 125°C
Propagation Delay: 22 ns
Independent Circuits: 2
Current - Output High, Low: 4mA, 4mA
Schmitt Trigger Input: No
Supplier Device Package: 16-SSOP
Voltage - Supply: 4.5 V ~ 5.5 V
Description: IC MULTIVIBRATOR 22NS 16SSOP
Packaging: Tube
Package / Case: 16-SSOP (0.209", 5.30mm Width)
Mounting Type: Surface Mount
Logic Type: Monostable
Operating Temperature: -40°C ~ 125°C
Propagation Delay: 22 ns
Independent Circuits: 2
Current - Output High, Low: 4mA, 4mA
Schmitt Trigger Input: No
Supplier Device Package: 16-SSOP
Voltage - Supply: 4.5 V ~ 5.5 V
товар відсутній
| 74HCT4515D,652 |
|
Виробник: NXP USA Inc.
Description: IC DECODER/DEMUX 1X4:16 24SO
Packaging: Tube
Package / Case: 24-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Circuit: 1 x 4:16
Type: Decoder/Demultiplexer
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Independent Circuits: 1
Current - Output High, Low: 4mA, 4mA
Voltage Supply Source: Single Supply
Supplier Device Package: 24-SO
Part Status: Obsolete
Description: IC DECODER/DEMUX 1X4:16 24SO
Packaging: Tube
Package / Case: 24-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Circuit: 1 x 4:16
Type: Decoder/Demultiplexer
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Independent Circuits: 1
Current - Output High, Low: 4mA, 4mA
Voltage Supply Source: Single Supply
Supplier Device Package: 24-SO
Part Status: Obsolete
товар відсутній
| 74HCT5555D,112 |
|
Виробник: NXP USA Inc.
Description: IC OSC TIMER W/OSC 75MHZ 16SOIC
Packaging: Tube
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Frequency: 75MHz
Type: Timer/Oscillator (Single)
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Supplier Device Package: 16-SO
Part Status: Obsolete
Description: IC OSC TIMER W/OSC 75MHZ 16SOIC
Packaging: Tube
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Frequency: 75MHz
Type: Timer/Oscillator (Single)
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Supplier Device Package: 16-SO
Part Status: Obsolete
товар відсутній
| 74HCT5555N,112 |
|
Виробник: NXP USA Inc.
Description: IC OSC TIMER W/OSC 75MHZ 16-DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Frequency: 75MHz
Type: Timer/Oscillator (Single)
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Supplier Device Package: 16-DIP
Part Status: Obsolete
Description: IC OSC TIMER W/OSC 75MHZ 16-DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Frequency: 75MHz
Type: Timer/Oscillator (Single)
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Supplier Device Package: 16-DIP
Part Status: Obsolete
товар відсутній
| 74HCT670DB,112 |
|
Виробник: NXP USA Inc.
Description: IC 4X4 REGISTER FILE 3ST 16-SSOP
Packaging: Tube
Package / Case: 16-SSOP (0.209", 5.30mm Width)
Mounting Type: Surface Mount
Circuit: 1 x 1:1
Type: Register File
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Independent Circuits: 4
Voltage Supply Source: Single Supply
Supplier Device Package: 16-SSOP
Description: IC 4X4 REGISTER FILE 3ST 16-SSOP
Packaging: Tube
Package / Case: 16-SSOP (0.209", 5.30mm Width)
Mounting Type: Surface Mount
Circuit: 1 x 1:1
Type: Register File
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Independent Circuits: 4
Voltage Supply Source: Single Supply
Supplier Device Package: 16-SSOP
товар відсутній
| 74HCT688DB,112 |
|
Виробник: NXP USA Inc.
Description: IC COMPARATOR IDENTITY 8B 20SSOP
Packaging: Tube
Package / Case: 20-SSOP (0.209", 5.30mm Width)
Mounting Type: Surface Mount
Output: Active Low
Type: Identity Comparator
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Current - Quiescent (Iq): 8 µA
Current - Output High, Low: 4mA, 4mA
Supplier Device Package: 20-SSOP
Max Propagation Delay @ V, Max CL: 34ns @ 4.5V, 50pF
Output Function: A=B
Part Status: Obsolete
Number of Bits: 8
Description: IC COMPARATOR IDENTITY 8B 20SSOP
Packaging: Tube
Package / Case: 20-SSOP (0.209", 5.30mm Width)
Mounting Type: Surface Mount
Output: Active Low
Type: Identity Comparator
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Current - Quiescent (Iq): 8 µA
Current - Output High, Low: 4mA, 4mA
Supplier Device Package: 20-SSOP
Max Propagation Delay @ V, Max CL: 34ns @ 4.5V, 50pF
Output Function: A=B
Part Status: Obsolete
Number of Bits: 8
товар відсутній
| 74HCT7030D,112 |
|
Виробник: NXP USA Inc.
Description: IC FIFO ASYNC/SYNC 64X9 28SO
Packaging: Tube
Package / Case: 28-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Function: Asynchronous, Synchronous
Memory Size: 576 (64 x 9)
Operating Temperature: -40°C ~ 125°C
Data Rate: 29MHz
Access Time: 40ns
Supplier Device Package: 28-SO
Bus Directional: Uni-Directional
Expansion Type: Depth, Width
Programmable Flags Support: No
Retransmit Capability: No
FWFT Support: No
Voltage - Supply: 4.5 V ~ 5.5 V
DigiKey Programmable: Not Verified
Description: IC FIFO ASYNC/SYNC 64X9 28SO
Packaging: Tube
Package / Case: 28-SOIC (0.295", 7.50mm Width)
Mounting Type: Surface Mount
Function: Asynchronous, Synchronous
Memory Size: 576 (64 x 9)
Operating Temperature: -40°C ~ 125°C
Data Rate: 29MHz
Access Time: 40ns
Supplier Device Package: 28-SO
Bus Directional: Uni-Directional
Expansion Type: Depth, Width
Programmable Flags Support: No
Retransmit Capability: No
FWFT Support: No
Voltage - Supply: 4.5 V ~ 5.5 V
DigiKey Programmable: Not Verified
товар відсутній
| 74HCT7030N,112 |
|
Виробник: NXP USA Inc.
Description: IC FIFO ASYNC/SYNC 64X9 28DIP
Packaging: Tube
Package / Case: 28-DIP (0.600", 15.24mm)
Mounting Type: Through Hole
Function: Asynchronous, Synchronous
Memory Size: 576 (64 x 9)
Operating Temperature: -40°C ~ 125°C
Data Rate: 29MHz
Access Time: 40ns
Supplier Device Package: 28-DIP
Bus Directional: Uni-Directional
Expansion Type: Depth, Width
Programmable Flags Support: No
Retransmit Capability: No
FWFT Support: No
Voltage - Supply: 4.5 V ~ 5.5 V
DigiKey Programmable: Not Verified
Description: IC FIFO ASYNC/SYNC 64X9 28DIP
Packaging: Tube
Package / Case: 28-DIP (0.600", 15.24mm)
Mounting Type: Through Hole
Function: Asynchronous, Synchronous
Memory Size: 576 (64 x 9)
Operating Temperature: -40°C ~ 125°C
Data Rate: 29MHz
Access Time: 40ns
Supplier Device Package: 28-DIP
Bus Directional: Uni-Directional
Expansion Type: Depth, Width
Programmable Flags Support: No
Retransmit Capability: No
FWFT Support: No
Voltage - Supply: 4.5 V ~ 5.5 V
DigiKey Programmable: Not Verified
товар відсутній
| 74HCT7273N,112 |
|
Виробник: NXP USA Inc.
Description: IC FF D-TYPE SNGL 8BIT 20DIP
Packaging: Tube
Package / Case: 20-DIP (0.300", 7.62mm)
Output Type: Non-Inverted
Mounting Type: Through Hole
Number of Elements: 1
Function: Master Reset
Type: D-Type
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 4.5V ~ 5.5V
Current - Quiescent (Iq): 8 µA
Current - Output High, Low: -, 4mA
Trigger Type: Positive Edge
Clock Frequency: 56 MHz
Input Capacitance: 3.5 pF
Supplier Device Package: 20-DIP
Max Propagation Delay @ V, Max CL: 30ns @ 4.5V, 50pF
Number of Bits per Element: 8
Description: IC FF D-TYPE SNGL 8BIT 20DIP
Packaging: Tube
Package / Case: 20-DIP (0.300", 7.62mm)
Output Type: Non-Inverted
Mounting Type: Through Hole
Number of Elements: 1
Function: Master Reset
Type: D-Type
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 4.5V ~ 5.5V
Current - Quiescent (Iq): 8 µA
Current - Output High, Low: -, 4mA
Trigger Type: Positive Edge
Clock Frequency: 56 MHz
Input Capacitance: 3.5 pF
Supplier Device Package: 20-DIP
Max Propagation Delay @ V, Max CL: 30ns @ 4.5V, 50pF
Number of Bits per Element: 8
товар відсутній
| 74HCT7403N,112 |
|
Виробник: NXP USA Inc.
Description: IC FIFO ASYNC/SYNC 64X4 16DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Function: Asynchronous, Synchronous
Memory Size: 256 (64 x 4)
Operating Temperature: -40°C ~ 125°C
Data Rate: 30MHz
Access Time: 61ns
Current - Supply (Max): 1mA
Supplier Device Package: 16-DIP
Bus Directional: Uni-Directional
Expansion Type: Depth, Width
Programmable Flags Support: No
Retransmit Capability: No
FWFT Support: No
Part Status: Obsolete
Voltage - Supply: 4.5 V ~ 5.5 V
DigiKey Programmable: Not Verified
Description: IC FIFO ASYNC/SYNC 64X4 16DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Function: Asynchronous, Synchronous
Memory Size: 256 (64 x 4)
Operating Temperature: -40°C ~ 125°C
Data Rate: 30MHz
Access Time: 61ns
Current - Supply (Max): 1mA
Supplier Device Package: 16-DIP
Bus Directional: Uni-Directional
Expansion Type: Depth, Width
Programmable Flags Support: No
Retransmit Capability: No
FWFT Support: No
Part Status: Obsolete
Voltage - Supply: 4.5 V ~ 5.5 V
DigiKey Programmable: Not Verified
товар відсутній
| 74HCT7731D,112 |
|
Виробник: NXP USA Inc.
Description: IC QUAD 64BIT SHIFT REG 16-SOIC
Packaging: Tube
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Output Type: Push-Pull
Mounting Type: Surface Mount
Number of Elements: 4
Function: Universal
Logic Type: Register, Multiplexed
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Supplier Device Package: 16-SO
Number of Bits per Element: 64
Description: IC QUAD 64BIT SHIFT REG 16-SOIC
Packaging: Tube
Package / Case: 16-SOIC (0.154", 3.90mm Width)
Output Type: Push-Pull
Mounting Type: Surface Mount
Number of Elements: 4
Function: Universal
Logic Type: Register, Multiplexed
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Supplier Device Package: 16-SO
Number of Bits per Element: 64
товар відсутній
| 74HCT7731N,112 |
|
Виробник: NXP USA Inc.
Description: IC QUAD 64BIT SHIFT REG 16-DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Output Type: Push-Pull
Mounting Type: Through Hole
Number of Elements: 4
Function: Universal
Logic Type: Register, Multiplexed
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Supplier Device Package: 16-DIP
Number of Bits per Element: 64
Description: IC QUAD 64BIT SHIFT REG 16-DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Output Type: Push-Pull
Mounting Type: Through Hole
Number of Elements: 4
Function: Universal
Logic Type: Register, Multiplexed
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Supplier Device Package: 16-DIP
Number of Bits per Element: 64
товар відсутній
| 74HCT9046AN,112 |
|
Виробник: NXP USA Inc.
Description: IC PHASE LOCK LOOP 16DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Output: Clock
Frequency - Max: 19MHz
Type: Phase Lock Loop (PLL)
Input: Clock
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Ratio - Input:Output: 2:2
Differential - Input:Output: No/No
Supplier Device Package: 16-DIP
PLL: Yes
Divider/Multiplier: No/No
Part Status: Obsolete
Number of Circuits: 1
DigiKey Programmable: Not Verified
Description: IC PHASE LOCK LOOP 16DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Output: Clock
Frequency - Max: 19MHz
Type: Phase Lock Loop (PLL)
Input: Clock
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 4.5V ~ 5.5V
Ratio - Input:Output: 2:2
Differential - Input:Output: No/No
Supplier Device Package: 16-DIP
PLL: Yes
Divider/Multiplier: No/No
Part Status: Obsolete
Number of Circuits: 1
DigiKey Programmable: Not Verified
товар відсутній
| 74HCT93D,112 |
|
Виробник: NXP USA Inc.
Description: IC BINARY COUNTER 4-BIT 14SO
Packaging: Tube
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Number of Elements: 1
Logic Type: Binary Counter
Reset: Asynchronous
Operating Temperature: -40°C ~ 125°C
Direction: Up
Trigger Type: Negative Edge
Supplier Device Package: 14-SO
Part Status: Obsolete
Voltage - Supply: 4.5 V ~ 5.5 V
Count Rate: 70 MHz
Number of Bits per Element: 4
Description: IC BINARY COUNTER 4-BIT 14SO
Packaging: Tube
Package / Case: 14-SOIC (0.154", 3.90mm Width)
Mounting Type: Surface Mount
Number of Elements: 1
Logic Type: Binary Counter
Reset: Asynchronous
Operating Temperature: -40°C ~ 125°C
Direction: Up
Trigger Type: Negative Edge
Supplier Device Package: 14-SO
Part Status: Obsolete
Voltage - Supply: 4.5 V ~ 5.5 V
Count Rate: 70 MHz
Number of Bits per Element: 4
товар відсутній
| 74LV04N,112 |
|
Виробник: NXP USA Inc.
Description: IC INVERTER 6CH 1-INP 14DIP
Packaging: Tube
Package / Case: 14-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Logic Type: Inverter
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 1V ~ 5.5V
Current - Output High, Low: 12mA, 12mA
Number of Inputs: 1
Supplier Device Package: 14-DIP
Input Logic Level - High: 0.9V ~ 2V
Input Logic Level - Low: 0.3V ~ 0.8V
Max Propagation Delay @ V, Max CL: 8ns @ 3.3V, 50pF
Number of Circuits: 6
Current - Quiescent (Max): 40 µA
Description: IC INVERTER 6CH 1-INP 14DIP
Packaging: Tube
Package / Case: 14-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Logic Type: Inverter
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 1V ~ 5.5V
Current - Output High, Low: 12mA, 12mA
Number of Inputs: 1
Supplier Device Package: 14-DIP
Input Logic Level - High: 0.9V ~ 2V
Input Logic Level - Low: 0.3V ~ 0.8V
Max Propagation Delay @ V, Max CL: 8ns @ 3.3V, 50pF
Number of Circuits: 6
Current - Quiescent (Max): 40 µA
товар відсутній
| 74LV123N,112 |
|
Виробник: NXP USA Inc.
Description: IC MULTIVIBRATOR 14NS 16DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Logic Type: Monostable
Operating Temperature: -40°C ~ 125°C
Propagation Delay: 14 ns
Independent Circuits: 2
Current - Output High, Low: 12mA, 12mA
Schmitt Trigger Input: No
Supplier Device Package: 16-DIP
Part Status: Obsolete
Voltage - Supply: 1 V ~ 5.5 V
Description: IC MULTIVIBRATOR 14NS 16DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Logic Type: Monostable
Operating Temperature: -40°C ~ 125°C
Propagation Delay: 14 ns
Independent Circuits: 2
Current - Output High, Low: 12mA, 12mA
Schmitt Trigger Input: No
Supplier Device Package: 16-DIP
Part Status: Obsolete
Voltage - Supply: 1 V ~ 5.5 V
товар відсутній
| 74LV125N,112 |
|
Виробник: NXP USA Inc.
Description: IC BUFFER NON-INVERT 5.5V 14DIP
Packaging: Tube
Package / Case: 14-DIP (0.300", 7.62mm)
Output Type: 3-State
Mounting Type: Through Hole
Number of Elements: 4
Logic Type: Buffer, Non-Inverting
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 1V ~ 5.5V
Number of Bits per Element: 1
Current - Output High, Low: 16mA, 16mA
Supplier Device Package: 14-DIP
Part Status: Obsolete
Description: IC BUFFER NON-INVERT 5.5V 14DIP
Packaging: Tube
Package / Case: 14-DIP (0.300", 7.62mm)
Output Type: 3-State
Mounting Type: Through Hole
Number of Elements: 4
Logic Type: Buffer, Non-Inverting
Operating Temperature: -40°C ~ 125°C (TA)
Voltage - Supply: 1V ~ 5.5V
Number of Bits per Element: 1
Current - Output High, Low: 16mA, 16mA
Supplier Device Package: 14-DIP
Part Status: Obsolete
товар відсутній
| 74LV138N,112 |
|
Виробник: NXP USA Inc.
Description: IC DECODER/DEMUX 1X3:8 16DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Circuit: 1 x 3:8
Type: Decoder/Demultiplexer
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 1V ~ 5.5V
Independent Circuits: 1
Current - Output High, Low: 12mA, 12mA
Voltage Supply Source: Single Supply
Supplier Device Package: 16-DIP
Part Status: Obsolete
Description: IC DECODER/DEMUX 1X3:8 16DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Circuit: 1 x 3:8
Type: Decoder/Demultiplexer
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 1V ~ 5.5V
Independent Circuits: 1
Current - Output High, Low: 12mA, 12mA
Voltage Supply Source: Single Supply
Supplier Device Package: 16-DIP
Part Status: Obsolete
товар відсутній
| 74LV139N,112 |
|
Виробник: NXP USA Inc.
Description: IC DECODER/DEMUX 1X2:4 16DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Circuit: 1 x 2:4
Type: Decoder/Demultiplexer
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 1V ~ 5.5V
Independent Circuits: 2
Current - Output High, Low: 12mA, 12mA
Voltage Supply Source: Single Supply
Supplier Device Package: 16-DIP
Part Status: Obsolete
Description: IC DECODER/DEMUX 1X2:4 16DIP
Packaging: Tube
Package / Case: 16-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Circuit: 1 x 2:4
Type: Decoder/Demultiplexer
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 1V ~ 5.5V
Independent Circuits: 2
Current - Output High, Low: 12mA, 12mA
Voltage Supply Source: Single Supply
Supplier Device Package: 16-DIP
Part Status: Obsolete
товар відсутній
| 74LV14N,112 |
|
Виробник: NXP USA Inc.
Description: IC INVERT SCHMITT 6CH 1INP 14DIP
Packaging: Tube
Features: Schmitt Trigger
Package / Case: 14-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Logic Type: Inverter
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 1V ~ 5.5V
Current - Output High, Low: 12mA, 12mA
Number of Inputs: 1
Supplier Device Package: 14-DIP
Input Logic Level - High: 1.4V ~ 3.85V
Input Logic Level - Low: 0.3V ~ 1.1V
Max Propagation Delay @ V, Max CL: 15ns @ 3.3V, 50pF
Part Status: Obsolete
Number of Circuits: 6
Current - Quiescent (Max): 40 µA
Description: IC INVERT SCHMITT 6CH 1INP 14DIP
Packaging: Tube
Features: Schmitt Trigger
Package / Case: 14-DIP (0.300", 7.62mm)
Mounting Type: Through Hole
Logic Type: Inverter
Operating Temperature: -40°C ~ 125°C
Voltage - Supply: 1V ~ 5.5V
Current - Output High, Low: 12mA, 12mA
Number of Inputs: 1
Supplier Device Package: 14-DIP
Input Logic Level - High: 1.4V ~ 3.85V
Input Logic Level - Low: 0.3V ~ 1.1V
Max Propagation Delay @ V, Max CL: 15ns @ 3.3V, 50pF
Part Status: Obsolete
Number of Circuits: 6
Current - Quiescent (Max): 40 µA
товар відсутній
