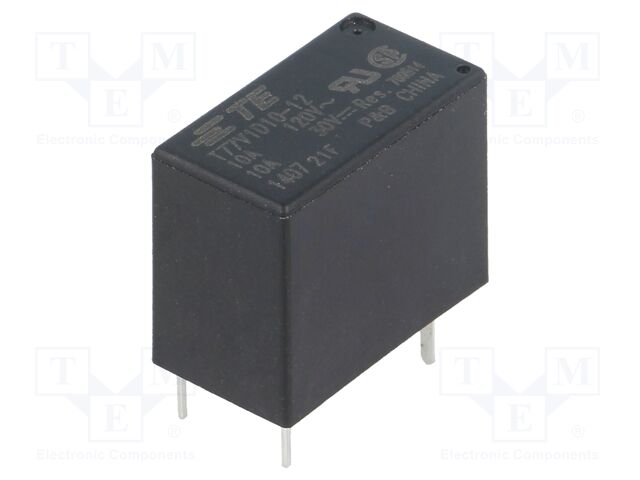

1-1393194-9 TE Connectivity
Виробник: TE Connectivity
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC; T77
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 10A
Manufacturer series: T77
Switched voltage: max. 30V DC; max. 277V AC
Relay variant: miniature
Mounting: THT
Coil resistance: 320Ω
Coil voltage min.: 8.4V DC
Body dimensions: 18.2x14.7x10.2mm
Coil power consumption: 450mW
Mechanical durability: 10000000 cycles
Contact material: AgCdO
Height: 14.7mm
Operating temperature: -30...85°C
Release time: 4ms
Operate time: 10ms
AC contacts rating @R: 10A / 250V AC
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC; T77
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 12V DC
Contact current max.: 10A
Manufacturer series: T77
Switched voltage: max. 30V DC; max. 277V AC
Relay variant: miniature
Mounting: THT
Coil resistance: 320Ω
Coil voltage min.: 8.4V DC
Body dimensions: 18.2x14.7x10.2mm
Coil power consumption: 450mW
Mechanical durability: 10000000 cycles
Contact material: AgCdO
Height: 14.7mm
Operating temperature: -30...85°C
Release time: 4ms
Operate time: 10ms
AC contacts rating @R: 10A / 250V AC
на замовлення 3 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 282.81 грн |
Відгуки про товар
Написати відгук
Технічний опис 1-1393194-9 TE Connectivity
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC; T77, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 12V DC, Contact current max.: 10A, Manufacturer series: T77, Switched voltage: max. 30V DC; max. 277V AC, Relay variant: miniature, Mounting: THT, Coil resistance: 320Ω, Coil voltage min.: 8.4V DC, Body dimensions: 18.2x14.7x10.2mm, Coil power consumption: 450mW, Mechanical durability: 10000000 cycles, Contact material: AgCdO, Height: 14.7mm, Operating temperature: -30...85°C, Release time: 4ms, Operate time: 10ms, AC contacts rating @R: 10A / 250V AC, кількість в упаковці: 1 шт.
Інші пропозиції 1-1393194-9 за ціною від 207.55 грн до 339.37 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
1-1393194-9 | Виробник : TE Connectivity |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A; 10A/250VAC; T77 Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 12V DC Contact current max.: 10A Manufacturer series: T77 Switched voltage: max. 30V DC; max. 277V AC Relay variant: miniature Mounting: THT Coil resistance: 320Ω Coil voltage min.: 8.4V DC Body dimensions: 18.2x14.7x10.2mm Coil power consumption: 450mW Mechanical durability: 10000000 cycles Contact material: AgCdO Height: 14.7mm Operating temperature: -30...85°C Release time: 4ms Operate time: 10ms AC contacts rating @R: 10A / 250V AC кількість в упаковці: 1 шт |
на замовлення 3 шт: термін постачання 14-21 дні (днів) |
|
||||||||||
 |
1-1393194-9 | Виробник : TE Connectivity |
 Power Relay 12VDC 10A SPST-NO(18.2x10.2x14.7)mm THT |
товару немає в наявності |
