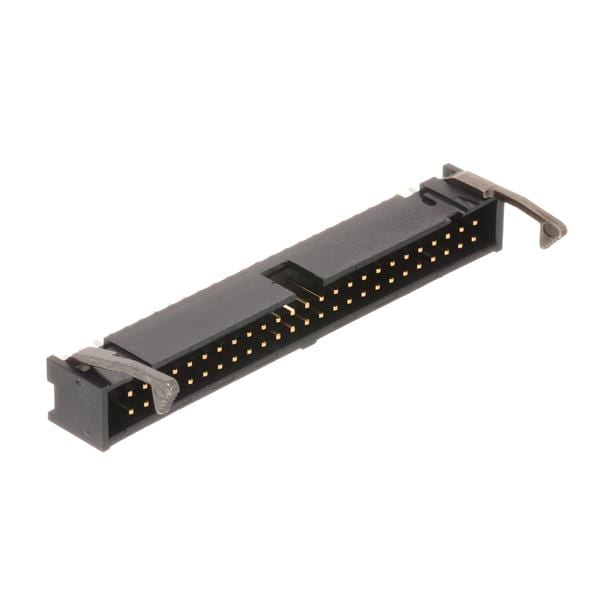

1-1761606-5 TE Connectivity

Description: CONN HEADER VERT 50POS 2.54MM, Contact Length - Mating: 0.237" (6.02mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Polybutylene Terephthalate (PBT), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.404" (10.26mm), Contact Length - Post: 0.102" (2.60mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Mating: Gold or Gold-Palladium, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Latch Lock/Eject Hooks, Long, Contact Type: Male Pin, Operating Temperature: -65°C ~ 105°C, Style: Board to Cable/Wire, Number of Rows: 2, Number of Positions: 50, Mounting Type: Through Hole, Current Rating (Amps): 1A per Contact, Voltage Rating: 250VAC, Connector Type: Header, Features: Keying Slot, Packaging: Tube.
