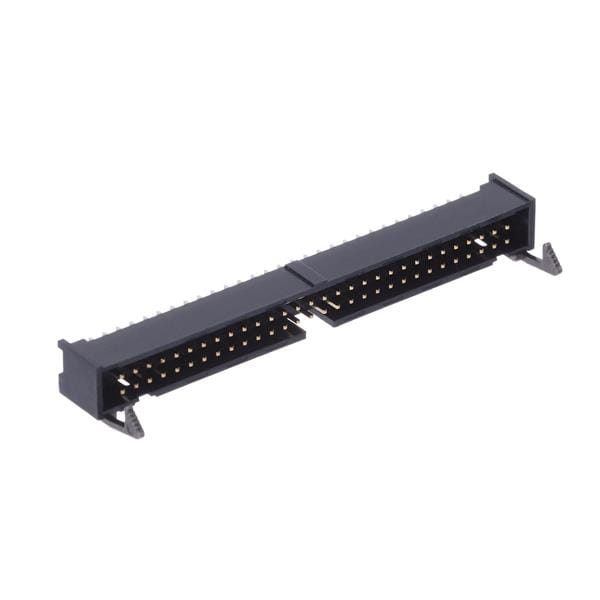

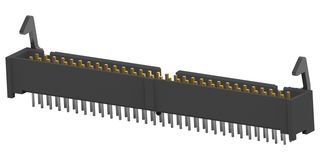

1-1761608-6 TE CONNECTIVITY
Виробник: TE CONNECTIVITY
Description: TE CONNECTIVITY - 1-1761608-6 - Stiftleiste, Wire-to-Board, 2.54 mm, 2 Reihe(n), 60 Kontakt(e), Durchsteckmontage, gerade
tariffCode: 85366930
euEccn: NLR
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
Steckverbinderkragen: Mit Kragen
Anzahl der Kontakte: 60Kontakt(e)
SVHC: No SVHC (27-Jun-2024)
Steckverbindersysteme: Wire-to-Board
Produktpalette: AMP-LATCH Series
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
usEccn: EAR99
Anzahl der Reihen: 2Reihe(n)
Rastermaß: 2.54mm
Відгуки про товар
Написати відгук
Технічний опис 1-1761608-6 TE CONNECTIVITY
Description: CONN HEADER VERT 60POS 2.54MM, Fastening Type: Latch Lock/Eject Hooks, Short, Contact Type: Male Pin, Operating Temperature: -65°C ~ 105°C, Style: Board to Cable/Wire, Number of Rows: 2, Number of Positions: 60, Mounting Type: Through Hole, Current Rating (Amps): 1A per Contact, Voltage Rating: 250VAC, Connector Type: Header, Features: Keying Slot, Packaging: Tube, Contact Length - Mating: 0.237" (6.02mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Polybutylene Terephthalate (PBT), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.404" (10.26mm), Contact Length - Post: 0.102" (2.60mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Mating: Gold or Gold-Palladium, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All.
Інші пропозиції 1-1761608-6 за ціною від 520.16 грн до 1105.34 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1-1761608-6 | TE Connectivity |
Headers & Wire Housings 100X100 HDR 2X030P VRT LPRO |
на замовлення 388 шт: термін постачання 21-30 дні (днів) |
|
||||||
 |
1-1761608-6 | TE Connectivity AMP Connectors |
Description: CONN HEADER VERT 60POS 2.54MM Fastening Type: Latch Lock/Eject Hooks, Short Contact Type: Male Pin Operating Temperature: -65°C ~ 105°C Style: Board to Cable/Wire Number of Rows: 2 Number of Positions: 60 Mounting Type: Through Hole Current Rating (Amps): 1A per Contact Voltage Rating: 250VAC Connector Type: Header Features: Keying Slot Packaging: Tube Contact Length - Mating: 0.237" (6.02mm) Row Spacing - Mating: 0.100" (2.54mm) Insulation Material: Polybutylene Terephthalate (PBT) Shrouding: Shrouded - 4 Wall Insulation Height: 0.404" (10.26mm) Contact Length - Post: 0.102" (2.60mm) Contact Shape: Square Part Status: Active Contact Finish - Post: Tin Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Mating: Gold or Gold-Palladium Pitch - Mating: 0.100" (2.54mm) Insulation Color: Black Contact Material: Phosphor Bronze Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All |
на замовлення 254 шт: термін постачання 21-31 дні (днів) |
|
| 1-1761608-6 |
|
Виробник: TE Connectivity
Headers & Wire Housings 100X100 HDR 2X030P VRT LPRO
Headers & Wire Housings 100X100 HDR 2X030P VRT LPRO
на замовлення 388 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 917.68 грн |
| 12+ | 759.48 грн |
| 102+ | 520.16 грн |
| 1-1761608-6 |
|
Виробник: TE Connectivity AMP Connectors
Description: CONN HEADER VERT 60POS 2.54MM
Fastening Type: Latch Lock/Eject Hooks, Short
Contact Type: Male Pin
Operating Temperature: -65°C ~ 105°C
Style: Board to Cable/Wire
Number of Rows: 2
Number of Positions: 60
Mounting Type: Through Hole
Current Rating (Amps): 1A per Contact
Voltage Rating: 250VAC
Connector Type: Header
Features: Keying Slot
Packaging: Tube
Contact Length - Mating: 0.237" (6.02mm)
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Polybutylene Terephthalate (PBT)
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.404" (10.26mm)
Contact Length - Post: 0.102" (2.60mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Mating: Gold or Gold-Palladium
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Description: CONN HEADER VERT 60POS 2.54MM
Fastening Type: Latch Lock/Eject Hooks, Short
Contact Type: Male Pin
Operating Temperature: -65°C ~ 105°C
Style: Board to Cable/Wire
Number of Rows: 2
Number of Positions: 60
Mounting Type: Through Hole
Current Rating (Amps): 1A per Contact
Voltage Rating: 250VAC
Connector Type: Header
Features: Keying Slot
Packaging: Tube
Contact Length - Mating: 0.237" (6.02mm)
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Polybutylene Terephthalate (PBT)
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.404" (10.26mm)
Contact Length - Post: 0.102" (2.60mm)
Contact Shape: Square
Part Status: Active
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Mating: Gold or Gold-Palladium
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
на замовлення 254 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 1105.34 грн |
| 10+ | 962.47 грн |
| 100+ | 835.16 грн |
