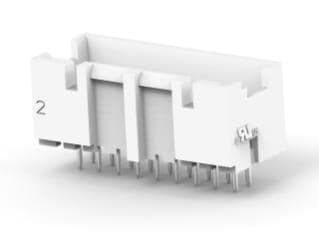

1-2324245-8 TE Connectivity AMP Connectors

Description: ASSY,HDR,VERT,GWT,BOSSED,DUAL RO, Features: Glow Wire Compliant, Packaging: Box, Connector Type: Header, Voltage Rating: 250VAC, Current Rating (Amps): 4.2A, Mounting Type: Through Hole, Number of Positions: 18, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Kinked Pin, Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Natural, Pitch - Mating: 0.098" (2.50mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 80.0µin (2.03µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.134" (3.40mm), Insulation Height: 0.386" (9.80mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Resin, Row Spacing - Mating: 0.098" (2.50mm).
