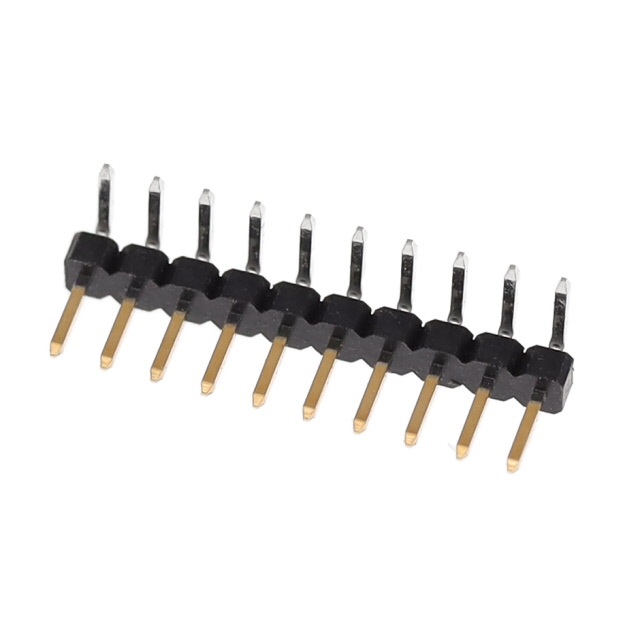

1-2842112-0 TE Connectivity AMP Connectors
Виробник: TE Connectivity AMP Connectors
Description: 10P,2MM,BRK HDR,SRRT,2.8,0.76AU,
Packaging: Tube
Connector Type: Header, Breakaway
Voltage Rating: 125VAC/DC
Current Rating (Amps): 2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 10
Number of Rows: 1
Style: Board to Board
Operating Temperature: -40°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.110" (2.79mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Insulation Material: Thermoplastic
Contact Length - Mating: 0.157" (4.00mm)
Description: 10P,2MM,BRK HDR,SRRT,2.8,0.76AU,
Packaging: Tube
Connector Type: Header, Breakaway
Voltage Rating: 125VAC/DC
Current Rating (Amps): 2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 10
Number of Rows: 1
Style: Board to Board
Operating Temperature: -40°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.110" (2.79mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Insulation Material: Thermoplastic
Contact Length - Mating: 0.157" (4.00mm)
на замовлення 863 шт:
термін постачання 21-31 дні (днів)
Кількість | Ціна без ПДВ |
---|---|
3+ | 139.75 грн |
10+ | 122.78 грн |
100+ | 109.47 грн |
500+ | 91.95 грн |
Відгуки про товар
Написати відгук
Технічний опис 1-2842112-0 TE Connectivity AMP Connectors
Description: 10P,2MM,BRK HDR,SRRT,2.8,0.76AU,, Packaging: Tube, Connector Type: Header, Breakaway, Voltage Rating: 125VAC/DC, Current Rating (Amps): 2A, Mounting Type: Through Hole, Right Angle, Number of Positions: 10, Number of Rows: 1, Style: Board to Board, Operating Temperature: -40°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.110" (2.79mm), Insulation Height: 0.059" (1.50mm), Shrouding: Unshrouded, Insulation Material: Thermoplastic, Contact Length - Mating: 0.157" (4.00mm).
Інші пропозиції 1-2842112-0 за ціною від 108.91 грн до 143.17 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1-2842112-0 | Виробник : TE Connectivity | Ampmodu 2MM Breakaway Header, Single Row, Right Angle, 0.76 Au, Tube |
на замовлення 3567 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||
1-2842112-0 | Виробник : TE Connectivity |
Category: Signal connectors - Unclassified Description: 1-2842112-0 |
на замовлення 3572 шт: термін постачання 21-30 дні (днів) |
|
