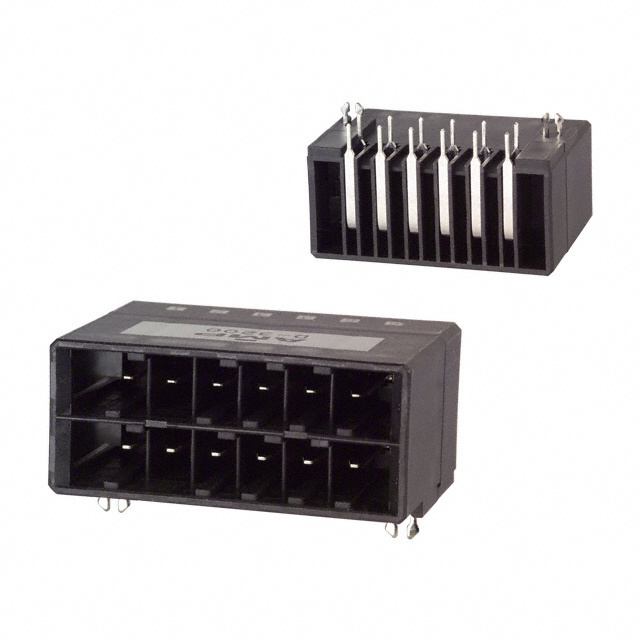

1-316081-5 TE Connectivity

Description: CONN HEADER R/A 12POS 5.08MM, Features: Board Lock, Packaging: Bulk, Connector Type: Header, Voltage Rating: 600V, Mounting Type: Through Hole, Right Angle, Number of Positions: 12, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 105°C, Contact Type: Tab, Fastening Type: Detent Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.200" (5.08mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 78.7µin (2.00µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Rectangular, Contact Length - Post: 0.150" (3.81mm), Insulation Height: 0.668" (16.97mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Thermoplastic, Polyester, Glass Filled, Row Spacing - Mating: 0.300" (7.62mm).
