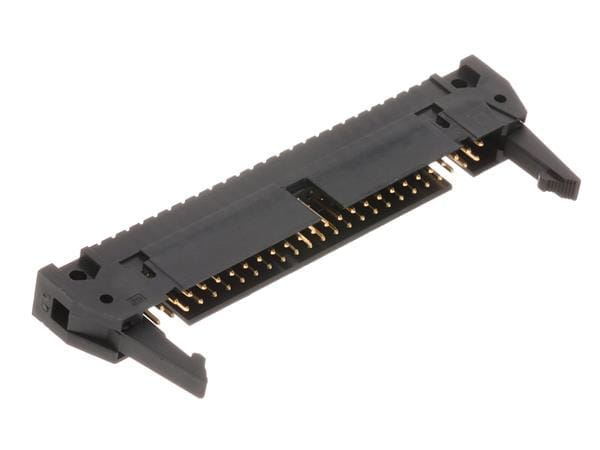

1-5499786-0 TE Connectivity AMP Connectors

Description: CONN HEADER R/A 50POS 2.54MM, Contact Length - Mating: 0.240" (6.10mm), Row Spacing - Mating: 0.100" (2.54mm), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.315" (8.00mm), Contact Length - Post: 0.110" (2.79mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Mating: Gold or Gold-Palladium, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Brass, Number of Positions: 50, Mounting Type: Through Hole, Right Angle, Current Rating (Amps): 1A per Contact, Voltage Rating: 250VAC, Connector Type: Header, Features: Keying Slot, Mounting Flange, Packaging: Bulk, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Latch Lock/Eject Hooks, Long, Contact Type: Male Pin, Operating Temperature: -65°C ~ 105°C, Style: Board to Cable/Wire, Number of Rows: 2.
