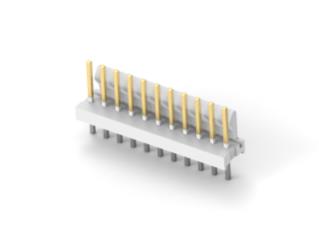

1-641215-1 TE Connectivity

Description: CONN HEADER VERT 11POS 2.54MM, Packaging: Bulk, Connector Type: Header, Voltage Rating: 250VAC, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Through Hole, Number of Positions: 11, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Friction Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Natural, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.140" (3.56mm), Insulation Height: 0.305" (7.75mm), Shrouding: Shrouded - 1 Wall, Overall Contact Length: 0.535" (13.59mm), Insulation Material: Thermoplastic, Contact Length - Mating: 0.295" (7.49mm).
