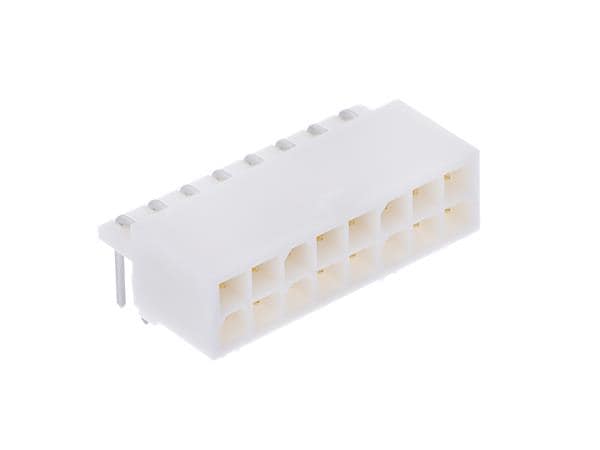

1-770974-1 TE Connectivity / AMP

Description: CONN HEADER R/A 16POS 4.14MM, Row Spacing - Mating: 0.163" (4.14mm), Insulation Material: Polyamide (PA), Nylon, Shrouding: Shrouded - 4 Wall, Insulation Height: 0.386" (9.80mm), Contact Length - Post: 0.145" (3.68mm), Contact Shape: Circular, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.163" (4.14mm), Insulation Color: White, Contact Material: Brass, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Locking Ramp, Contact Type: Male Pin, Operating Temperature: -20°C ~ 105°C, Style: Board to Cable/Wire, Number of Rows: 2, Number of Positions: 16, Mounting Type: Through Hole, Right Angle, Current Rating (Amps): Varies by Wire Gauge, Voltage Rating: 600VAC, Connector Type: Header, Features: Board Lock, Packaging: Bulk.
