1-825433-6

1-825433-6 TE Connectivity AMP Connectors


product-1-825433-6.datasheet.pdf Виробник: TE Connectivity AMP Connectors
Description: CONN HEADER VERT 16POS 2.54MM
Packaging: Bulk
Connector Type: Header, Breakaway
Current Rating (Amps): 5A
Mounting Type: Through Hole
Number of Positions: 16
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Green
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: FLASH
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.126" (3.20mm)
Insulation Height: 0.110" (2.79mm)
Shrouding: Unshrouded
Overall Contact Length: 0.500" (12.70mm)
Insulation Material: Polybutylene Terephthalate (PBT)
Contact Length - Mating: 0.264" (6.70mm)
на замовлення 2268 шт:

термін постачання 21-31 дні (днів)
Кількість Ціна
3+114.60 грн
10+93.88 грн
100+79.78 грн
500+66.83 грн
1000+63.64 грн
Мінімальне замовлення: 3
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис 1-825433-6 TE Connectivity AMP Connectors

Description: CONN HEADER VERT 16POS 2.54MM, Packaging: Bulk, Connector Type: Header, Breakaway, Current Rating (Amps): 5A, Mounting Type: Through Hole, Number of Positions: 16, Number of Rows: 1, Style: Board to Board or Cable, Operating Temperature: -65°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Green, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: FLASH, Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.126" (3.20mm), Insulation Height: 0.110" (2.79mm), Shrouding: Unshrouded, Overall Contact Length: 0.500" (12.70mm), Insulation Material: Polybutylene Terephthalate (PBT), Contact Length - Mating: 0.264" (6.70mm).

Інші пропозиції 1-825433-6 за ціною від 57.02 грн до 142.61 грн

Фото Назва Виробник Інформація Доступність
Ціна

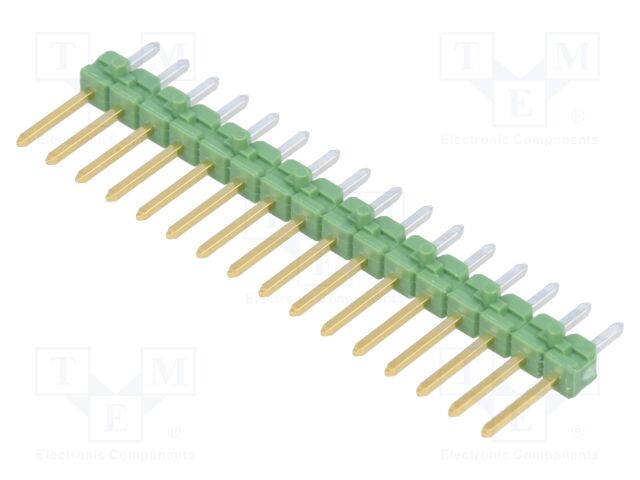

1-825433-6 1-825433-6 Виробник : TE Connectivity product-1-825433-6.datasheet.pdf Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 16; AMPMODU MOD II
Type of connector: pin strips
Connector: pin header
Kind of connector: male
Number of pins: 16
Spatial orientation: straight
Electrical mounting: THT
Contacts pitch: 2.54mm
Connector pinout layout: 1x16
Contact plating: selectively gold plated
Height: 6.7mm
Manufacturer series: AMPMODU MOD II
Leads dimensions: L 3.2mm
на замовлення 115 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
4+118.84 грн
10+91.96 грн
12+81.23 грн
32+76.63 грн
100+75.10 грн
Мінімальне замовлення: 4
В кошику  од. на суму  грн.
1-825433-6 1-825433-6 Виробник : TE Connectivity ENG_CD_825433_S_baseFilename-2068607.pdf Headers & Wire Housings MOD 2 PINHDR 1X16P.
на замовлення 4652 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
3+127.03 грн
10+103.22 грн
100+72.69 грн
500+62.90 грн
1000+59.15 грн
5000+57.02 грн
Мінімальне замовлення: 3
В кошику  од. на суму  грн.
1-825433-6 1-825433-6 Виробник : TE Connectivity product-1-825433-6.datasheet.pdf Category: Pin headers
Description: Connector: pin strips; pin header; male; PIN: 16; AMPMODU MOD II
Type of connector: pin strips
Connector: pin header
Kind of connector: male
Number of pins: 16
Spatial orientation: straight
Electrical mounting: THT
Contacts pitch: 2.54mm
Connector pinout layout: 1x16
Contact plating: selectively gold plated
Height: 6.7mm
Manufacturer series: AMPMODU MOD II
Leads dimensions: L 3.2mm
кількість в упаковці: 1 шт
на замовлення 115 шт:
термін постачання 14-21 дні (днів)
Кількість Ціна
3+142.61 грн
10+114.60 грн
12+97.48 грн
32+91.96 грн
100+90.12 грн
500+89.20 грн
Мінімальне замовлення: 3
В кошику  од. на суму  грн.
1-825433-6 Виробник : AMP - TE CONNECTIVITY product-1-825433-6.datasheet.pdf Description: AMP - TE CONNECTIVITY - 1-825433-6 - Stiftleiste, Board-to-Board, 2.54 mm, 1 Reihe(n), 16 Kontakt(e), Durchsteckmontage, gerade
tariffCode: 85366930
rohsCompliant: YES
Kontaktüberzug: Hauchvergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Messing
usEccn: EAR99
Steckverbinderkragen: Ohne Kragen
Anzahl der Kontakte: 16Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Board-to-Board
Steckverbindertyp: Pin Header
Produktpalette: AMPMODU MOD II
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
Anzahl der Reihen: 1Reihe(n)
Rastermaß: 2.54mm
SVHC: No SVHC (27-Jun-2024)
на замовлення 2524 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
6+140.30 грн
10+105.64 грн
100+82.03 грн
250+76.02 грн
500+70.03 грн
1000+69.89 грн
Мінімальне замовлення: 6
В кошику  од. на суму  грн.
