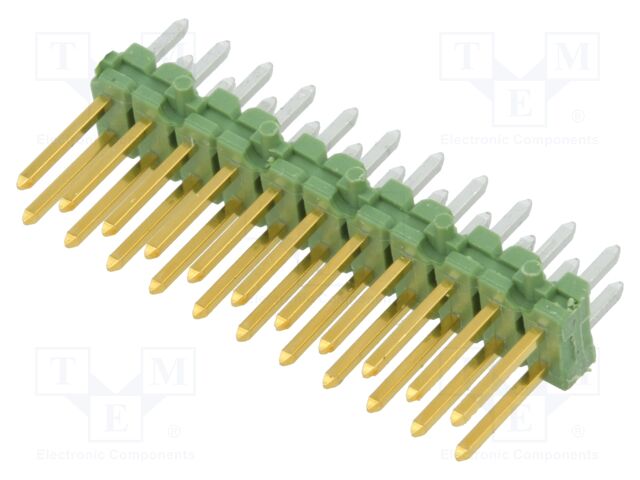

1-825440-1 TE Connectivity AMP Connectors

Description: CONN HEADER VERT 22POS 2.54MM, Packaging: Box, Connector Type: Header, Mounting Type: Through Hole, Number of Positions: 22, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -65°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Green, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 3.90µin (0.099µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.126" (3.20mm), Insulation Height: 0.110" (2.79mm), Shrouding: Unshrouded, Overall Contact Length: 0.500" (12.70mm), Insulation Material: Polybutylene Terephthalate (PBT), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.264" (6.70mm).
