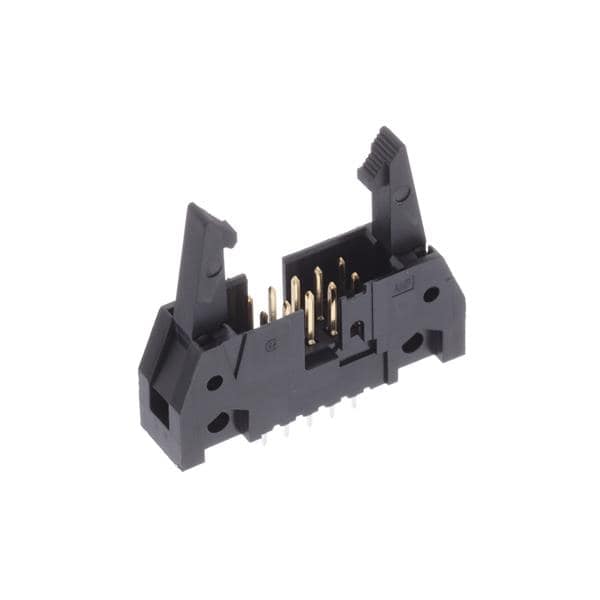

102321-1 TE Connectivity

Description: CONN HEADER VERT 10POS 2.54MM, Packaging: Tray, Features: Keying Slot, Mounting Flange, Connector Type: Header, Voltage Rating: 250VAC, Current Rating (Amps): 1A per Contact, Mounting Type: Through Hole, Number of Positions: 10, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -65°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Latch Lock/Eject Hooks, Long, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold or Gold-Palladium, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin-Lead, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.155" (3.94mm), Insulation Height: 0.549" (13.94mm), Shrouding: Shrouded - 4 Wall, Overall Contact Length: 0.684" (17.37mm), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.240" (6.10mm).
