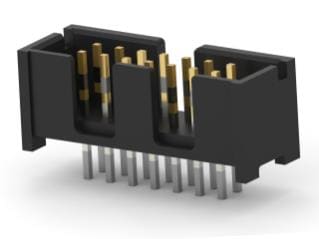

103309-2 TE Connectivity AMP Connectors

Description: CONN HEADER VERT 14POS 2.54MM, Features: Keying Slot, Packaging: Tube, Connector Type: Header, Current Rating (Amps): 1A per Contact, Mounting Type: Through Hole, Number of Positions: 14, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -65°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold or Gold-Palladium, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin-Lead, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.120" (3.05mm), Insulation Height: 0.388" (9.86mm), Shrouding: Shrouded - 4 Wall, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.240" (6.10mm).
