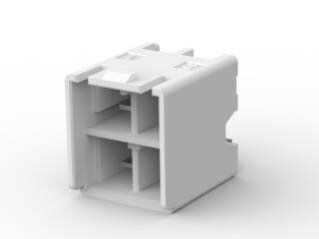

1376386-2 TE Connectivity
Виробник: TE Connectivity
Category: Automotive connectors
Description: Connector: wire-board; plug; POWER; Inom: 9A; PIN: 4; straight; THT
Electrical mounting: THT
Mechanical mounting: on PCBs
Connector variant: shrouded
Connector: plug
Manufacturer series: POWER
Spatial orientation: straight
Contact plating: tinned
Flammability rating: UL94V-0
Type of connector: wire-board
Operating temperature: -40...105°C
Number of pins: 4
Maximum current: 9A
Current rating: 9A
Max. voltage: 300V AC
Body colour: natural
Contact material: copper alloy
Відгуки про товар
Написати відгук
Технічний опис 1376386-2 TE Connectivity
Description: 5MM B-T-W CONN. 4P(2ROW) HDR A, Features: Board Guide, Packaging: Bag, Connector Type: Header, Voltage Rating: 300VAC, Current Rating (Amps): 9A, Mounting Type: Through Hole, Number of Positions: 4, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Power, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Kinked Pin, Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Natural, Pitch - Mating: 0.197" (5.00mm), Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Rectangular, Contact Length - Post: 0.138" (3.50mm), Insulation Height: 0.555" (14.10mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA66), Nylon 6/6, Row Spacing - Mating: 0.244" (6.20mm).
Інші пропозиції 1376386-2
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
|---|---|---|---|---|---|
 |
1376386-2 | TE Connectivity AMP Connectors |
Description: 5MM B-T-W CONN. 4P(2ROW) HDR A Features: Board Guide Packaging: Bag Connector Type: Header Voltage Rating: 300VAC Current Rating (Amps): 9A Mounting Type: Through Hole Number of Positions: 4 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -40°C ~ 105°C Contact Type: Male Pin, Power Fastening Type: Locking Ramp Number of Positions Loaded: All Termination: Kinked Pin, Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Natural Pitch - Mating: 0.197" (5.00mm) Contact Finish - Mating: Tin Contact Finish - Post: Tin Part Status: Active Contact Shape: Rectangular Contact Length - Post: 0.138" (3.50mm) Insulation Height: 0.555" (14.10mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyamide (PA66), Nylon 6/6 Row Spacing - Mating: 0.244" (6.20mm) |
товару немає в наявності |
В кошику од. на суму грн. |
 |
1376386-2 | TE Connectivity / AMP |
Headers & Wire Housings 5mm B-T-W Conn. 4P(2row) HDR A |
товару немає в наявності |
Мінімальне замовлення: 4000 шт В кошику од. на суму грн. |
| 1376386-2 |
|
Виробник: TE Connectivity AMP Connectors
Description: 5MM B-T-W CONN. 4P(2ROW) HDR A
Features: Board Guide
Packaging: Bag
Connector Type: Header
Voltage Rating: 300VAC
Current Rating (Amps): 9A
Mounting Type: Through Hole
Number of Positions: 4
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin, Power
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Kinked Pin, Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Natural
Pitch - Mating: 0.197" (5.00mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Rectangular
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.555" (14.10mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA66), Nylon 6/6
Row Spacing - Mating: 0.244" (6.20mm)
Description: 5MM B-T-W CONN. 4P(2ROW) HDR A
Features: Board Guide
Packaging: Bag
Connector Type: Header
Voltage Rating: 300VAC
Current Rating (Amps): 9A
Mounting Type: Through Hole
Number of Positions: 4
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin, Power
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Kinked Pin, Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Natural
Pitch - Mating: 0.197" (5.00mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Rectangular
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.555" (14.10mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA66), Nylon 6/6
Row Spacing - Mating: 0.244" (6.20mm)
