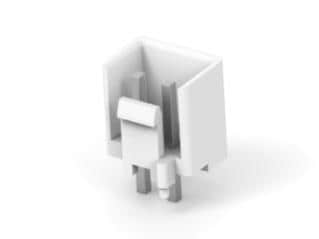

1744427-2 TE Connectivity AMP Connectors

Description: CONN HEADER VERT 2POS 3.96MM, Features: Board Guide, Glow Wire Compliant, Packaging: Bulk, Connector Type: Header, Voltage Rating: 250VAC, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Through Hole, Number of Positions: 2, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -30°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Friction Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-2, Contact Material: Brass, Pitch - Mating: 0.156" (3.96mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 39.4µin (1.00µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.142" (3.60mm), Insulation Height: 0.472" (12.00mm), Shrouding: Shrouded - 4 Wall, Overall Contact Length: 0.567" (14.40mm), Insulation Material: Polyamide (PA), Nylon, Glass Filled, Contact Length - Mating: 0.306" (7.77mm).
