1825516-2 TE Connectivity
Виробник: TE Connectivity

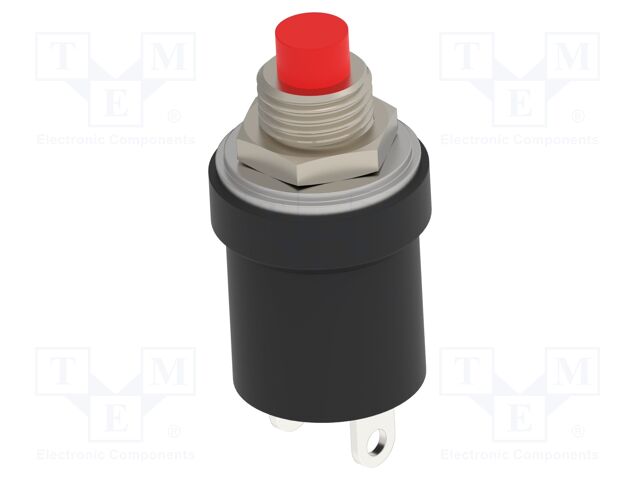

Switch Push Button N.O. SPST Round Plunger 3A 125VAC 5VDC Momentary Contact Panel Mount Wire Lug Loose
Відгуки про товар
Написати відгук
Технічний опис 1825516-2 TE Connectivity
Category: Standard Switches, Description: Switch: push-button; Pos: 2; SPST-NO; 3A/125VAC; 0.1A/5VDC; 100MΩ, Contact material: copper alloy, Contact plating: silver plated, Leads: connectors, Type of switch: push-button, Illumination: none, Switching method: OFF-(ON), Mounting: on panel, Button shape: round, Flammability rating: UL94V-HB, Operating temperature: -20...80°C, Leads dimensions: 2.8x0.5mm, Max. contact resistance:: 20mΩ, DC contacts rating @R: 0.1A / 5V DC, AC contacts rating @R: 3A / 125V AC, Stable positions number: 1, Number of positions: 2, Electrical life: 5000 cycles, Min. insulation resistance: 0.1GΩ, Contacts configuration: SPST-NO, Actuator colour: red, Body colour: black.
Інші пропозиції 1825516-2
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
 |
1825516-2 | TE Connectivity |
Category: Standard Switches Description: Switch: push-button; Pos: 2; SPST-NO; 3A/125VAC; 0.1A/5VDC; 100MΩ Contact material: copper alloy Contact plating: silver plated Leads: connectors Type of switch: push-button Illumination: none Switching method: OFF-(ON) Mounting: on panel Button shape: round Flammability rating: UL94V-HB Operating temperature: -20...80°C Leads dimensions: 2.8x0.5mm Max. contact resistance:: 20mΩ DC contacts rating @R: 0.1A / 5V DC AC contacts rating @R: 3A / 125V AC Stable positions number: 1 Number of positions: 2 Electrical life: 5000 cycles Min. insulation resistance: 0.1GΩ Contacts configuration: SPST-NO Actuator colour: red Body colour: black |
товару немає в наявності |
Мінімальне замовлення: 800 шт В кошику од. на суму грн. |
| 1825516-2 |
Виробник: TE Connectivity
Category: Standard Switches
Description: Switch: push-button; Pos: 2; SPST-NO; 3A/125VAC; 0.1A/5VDC; 100MΩ
Contact material: copper alloy
Contact plating: silver plated
Leads: connectors
Type of switch: push-button
Illumination: none
Switching method: OFF-(ON)
Mounting: on panel
Button shape: round
Flammability rating: UL94V-HB
Operating temperature: -20...80°C
Leads dimensions: 2.8x0.5mm
Max. contact resistance:: 20mΩ
DC contacts rating @R: 0.1A / 5V DC
AC contacts rating @R: 3A / 125V AC
Stable positions number: 1
Number of positions: 2
Electrical life: 5000 cycles
Min. insulation resistance: 0.1GΩ
Contacts configuration: SPST-NO
Actuator colour: red
Body colour: black
Category: Standard Switches
Description: Switch: push-button; Pos: 2; SPST-NO; 3A/125VAC; 0.1A/5VDC; 100MΩ
Contact material: copper alloy
Contact plating: silver plated
Leads: connectors
Type of switch: push-button
Illumination: none
Switching method: OFF-(ON)
Mounting: on panel
Button shape: round
Flammability rating: UL94V-HB
Operating temperature: -20...80°C
Leads dimensions: 2.8x0.5mm
Max. contact resistance:: 20mΩ
DC contacts rating @R: 0.1A / 5V DC
AC contacts rating @R: 3A / 125V AC
Stable positions number: 1
Number of positions: 2
Electrical life: 5000 cycles
Min. insulation resistance: 0.1GΩ
Contacts configuration: SPST-NO
Actuator colour: red
Body colour: black
товару немає в наявності
Мінімальне замовлення: 800 шт
В кошику
од. на суму грн.
