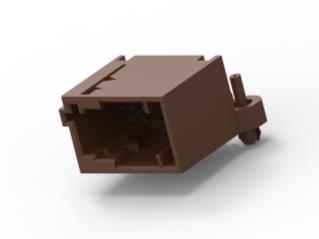

185740-3 TE Connectivity AMP Connectors

Description: 12POS MQS .63 HEADER 90DEG, Features: Board Lock, Packaging: Box, Connector Type: Header, Voltage Rating: 12VDC, Mounting Type: Through Hole, Right Angle, Number of Positions: 12, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 85°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Contact Material: Copper Alloy, Insulation Color: Brown, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 15.7µin (0.40µm), Contact Shape: Square, Contact Length - Post: 0.102" (2.60mm), Insulation Height: 0.776" (19.70mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.264" (6.70mm).
