2-292132-3 TE Connectivity
Виробник: TE Connectivity
Category: Raster signal connectors 2,00mm

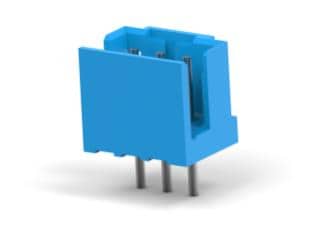

Description: Connector: wire-board; plug; PIN: 3; CT; Inom: 4A; vertical; THT; 2mm
Type of connector: wire-board
Connector: plug
Number of pins: 3
Manufacturer series: CT
Current rating: 4A
Spatial orientation: vertical
Electrical mounting: THT
Mechanical mounting: on PCBs
Contacts pitch: 2mm
Contact plating: tinned
Flammability rating: UL94V-0
Body material: polyamide
Maximum current: 4A
Connector variant: shrouded
Contact material: brass
Max. contact resistance:: 20mΩ
Operating temperature: -40...105°C
Body colour: blue
| Кількість | Ціна без ПДВ |
|---|---|
| 218+ | 27.25 грн |
| 2000+ | 24.89 грн |
| 3000+ | 24.40 грн |
| 5000+ | 23.99 грн |
| 20000+ | 21.77 грн |
| 25000+ | 18.07 грн |
| 50000+ | 17.41 грн |
Товар під замовлення
Немає на нашому складі — привозимо зі складу постачальника після оформлення замовлення.
термін постачання:
14-30 дні (днів)
Мінімальна партія:
218 шт
Відгуки про товар
Написати відгук
Технічний опис 2-292132-3 TE Connectivity
Description: CONN HEADER VERT 3POS 2MM, Packaging: Bulk, Connector Type: Header, Voltage Rating: 125VAC, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Through Hole, Number of Positions: 3, Number of Rows: 1, Style: Board to Cable/Wire, Contact Type: Male Pin, Fastening Type: Detent Lock, Number of Positions Loaded: All, Termination: Kinked Pin, Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Blue, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.126" (3.20mm), Insulation Height: 0.268" (6.80mm), Shrouding: Shrouded - 4 Wall, Overall Contact Length: 0.358" (9.09mm), Insulation Material: Polyamide (PA66), Nylon 6/6, Contact Length - Mating: 0.165" (4.20mm).
Інші пропозиції 2-292132-3
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
|
2-292132-3 | TE Connectivity AMP Connectors |
Description: CONN HEADER VERT 3POS 2MMPackaging: Bulk Connector Type: Header Voltage Rating: 125VAC Current Rating (Amps): Varies by Wire Gauge Mounting Type: Through Hole Number of Positions: 3 Number of Rows: 1 Style: Board to Cable/Wire Contact Type: Male Pin Fastening Type: Detent Lock Number of Positions Loaded: All Termination: Kinked Pin, Solder Material Flammability Rating: UL94 V-0 Contact Material: Brass Insulation Color: Blue Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Tin Contact Finish - Post: Tin Part Status: Active Contact Shape: Circular Contact Length - Post: 0.126" (3.20mm) Insulation Height: 0.268" (6.80mm) Shrouding: Shrouded - 4 Wall Overall Contact Length: 0.358" (9.09mm) Insulation Material: Polyamide (PA66), Nylon 6/6 Contact Length - Mating: 0.165" (4.20mm) |
товару немає в наявності |
Мінімальне замовлення: 20000 шт В кошику од. на суму грн. |
| 2-292132-3 | TE Connectivity |
Conn Shrouded Header HDR 3 POS 2mm Solder ST Thru-Hole Bag/Box |
товару немає в наявності |
Мінімальне замовлення: 20000 шт В кошику од. на суму грн. |
| 2-292132-3 |
![]() |
Виробник: TE Connectivity AMP Connectors
Description: CONN HEADER VERT 3POS 2MM
Packaging: Bulk
Connector Type: Header
Voltage Rating: 125VAC
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Through Hole
Number of Positions: 3
Number of Rows: 1
Style: Board to Cable/Wire
Contact Type: Male Pin
Fastening Type: Detent Lock
Number of Positions Loaded: All
Termination: Kinked Pin, Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Blue
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.126" (3.20mm)
Insulation Height: 0.268" (6.80mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.358" (9.09mm)
Insulation Material: Polyamide (PA66), Nylon 6/6
Contact Length - Mating: 0.165" (4.20mm)
Description: CONN HEADER VERT 3POS 2MM
Packaging: Bulk
Connector Type: Header
Voltage Rating: 125VAC
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Through Hole
Number of Positions: 3
Number of Rows: 1
Style: Board to Cable/Wire
Contact Type: Male Pin
Fastening Type: Detent Lock
Number of Positions Loaded: All
Termination: Kinked Pin, Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Blue
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.126" (3.20mm)
Insulation Height: 0.268" (6.80mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.358" (9.09mm)
Insulation Material: Polyamide (PA66), Nylon 6/6
Contact Length - Mating: 0.165" (4.20mm)
товару немає в наявності
Мінімальне замовлення: 20000 шт
В кошику
од. на суму грн.
| 2-292132-3 |
![]() |
Виробник: TE Connectivity
Conn Shrouded Header HDR 3 POS 2mm Solder ST Thru-Hole Bag/Box
Conn Shrouded Header HDR 3 POS 2mm Solder ST Thru-Hole Bag/Box
товару немає в наявності
Мінімальне замовлення: 20000 шт
В кошику
од. на суму грн.
