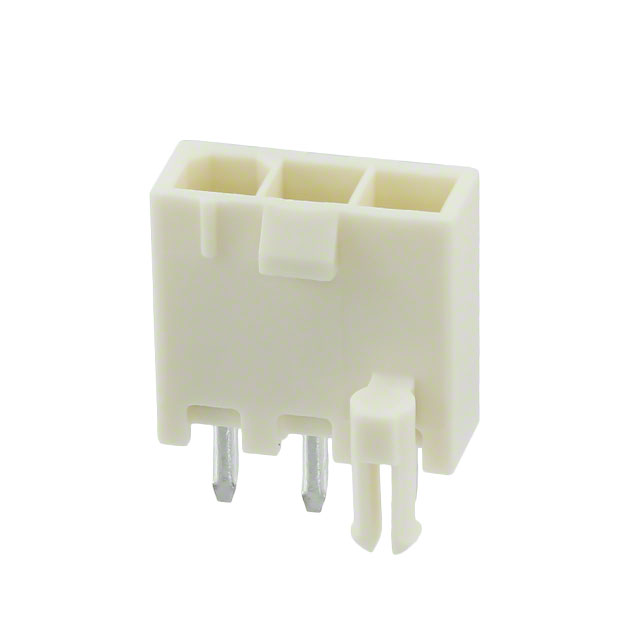

2029181-3 TE Connectivity

Description: CONN HEADER VERT 3POS 4.2MM, Features: Board Lock, Glow Wire Compliant, Packaging: Tray, Connector Type: Header, Voltage Rating: 600VAC, Current Rating (Amps): 9A, Mounting Type: Through Hole, Number of Positions: 3, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Natural, Pitch - Mating: 0.165" (4.20mm), Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.138" (3.50mm), Insulation Height: 0.504" (12.80mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled.
