2132415-3 TE Connectivity AMP Connectors
Виробник: TE Connectivity AMP Connectors

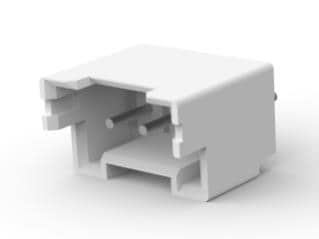

Description: CONN HEADER VERT 3POS 2.5MM
Packaging: Bulk
Connector Type: Header
Voltage Rating: 250VAC
Current Rating (Amps): 4.2A
Mounting Type: Through Hole
Number of Positions: 3
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Friction Lock
Number of Positions Loaded: All
Termination: Kinked Pin, Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Natural
Pitch - Mating: 0.098" (2.50mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 80.0µin (2.03µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.134" (3.40mm)
Insulation Height: 0.346" (8.80mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA66), Nylon 6/6
Contact Length - Mating: 0.141" (3.60mm)
| Кількість | Ціна |
|---|---|
| 22+ | 15.03 грн |
| 25+ | 12.49 грн |
| 100+ | 10.62 грн |
| 600+ | 8.78 грн |
| 1200+ | 8.36 грн |
| 5400+ | 7.52 грн |
| 10200+ | 7.07 грн |
Відгуки про товар
Написати відгук
Технічний опис 2132415-3 TE Connectivity AMP Connectors
Description: CONN HEADER VERT 3POS 2.5MM, Packaging: Bulk, Connector Type: Header, Voltage Rating: 250VAC, Current Rating (Amps): 4.2A, Mounting Type: Through Hole, Number of Positions: 3, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Friction Lock, Number of Positions Loaded: All, Termination: Kinked Pin, Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Natural, Pitch - Mating: 0.098" (2.50mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 80.0µin (2.03µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.134" (3.40mm), Insulation Height: 0.346" (8.80mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA66), Nylon 6/6, Contact Length - Mating: 0.141" (3.60mm).
Інші пропозиції 2132415-3 за ціною від 6.60 грн до 15.51 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2132415-3 | Виробник : TE Connectivity |
Headers & Wire Housings EP2.5 Shrouded HDR ASSY 3P VERT wo boss |
на замовлення 13478 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||
| 2132415-3 | Виробник : TE Connectivity |
Category: Raster signal connectors 2,50mm Description: Connector: wire-board; plug; PIN: 3; Inom: 4.2A; vertical; UL94V-0 Type of connector: wire-board Connector: plug Current rating: 4.2A Number of pins: 3 Spatial orientation: vertical Connector variant: shrouded Mechanical mounting: on PCBs Electrical mounting: THT Contact material: brass Contact plating: tinned Body material: PBT Body colour: natural Contacts pitch: 2.5mm Locking system: latch Flammability rating: UL94V-0 Operating temperature: -55...105°C Maximum current: 4.2A Max. voltage: 250V AC |
на замовлення 105600 шт: термін постачання 14-30 дні (днів) |
|
