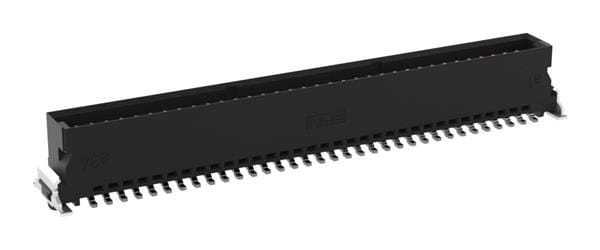

244839-E TE Connectivity Erni

Description: SMC M VERT Q 68POS SMT 1.75MM, Packaging: Tape & Reel (TR), Features: Board Guide, Pick and Place, Solder Retention, Connector Type: Header, Current Rating (Amps): 1.7A per Contact, Mounting Type: Surface Mount, Number of Positions: 68, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.266" (6.76mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.157" (4.00mm).
