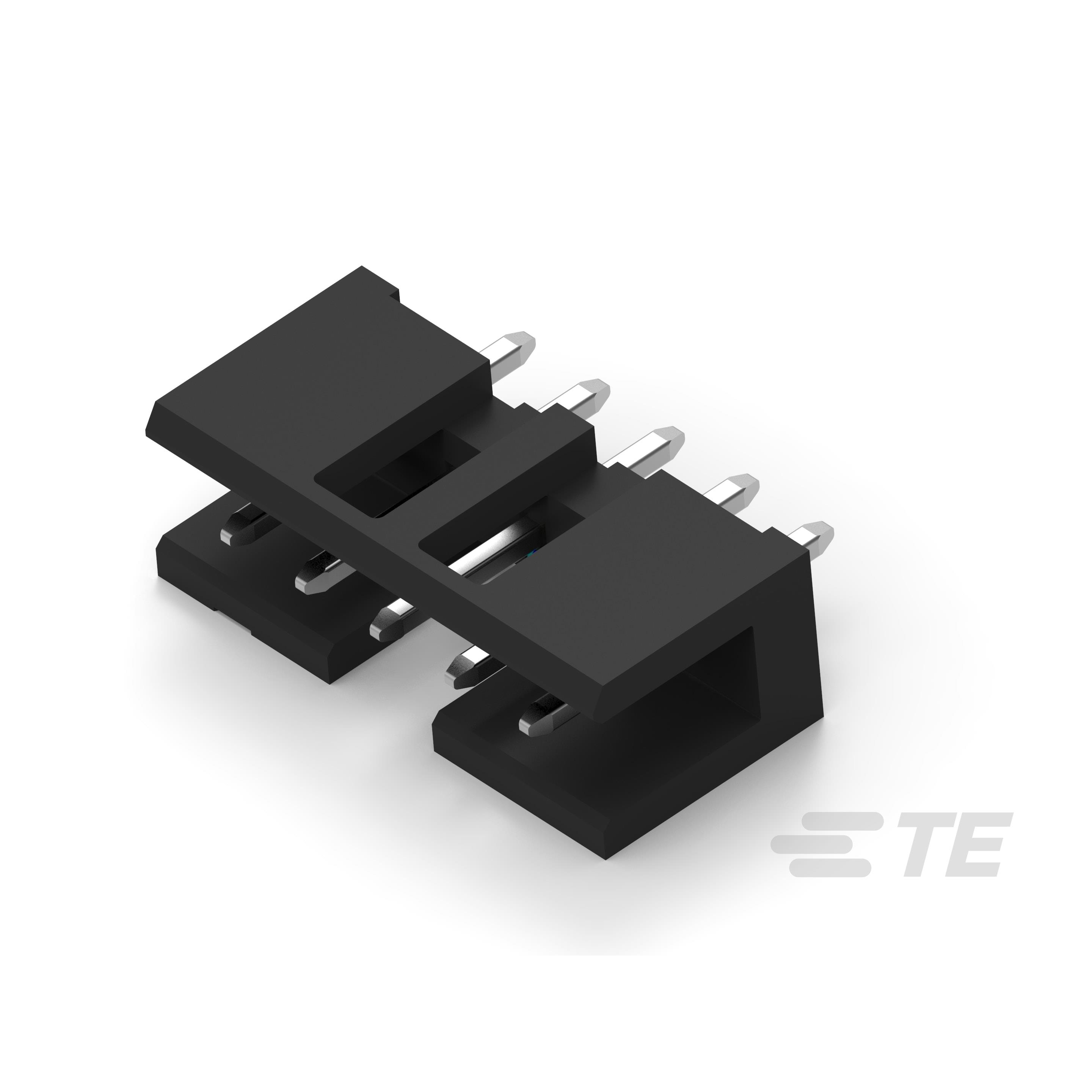

2MM-HSD-S05-VT-02-H-TB TE CONNECTIVITY
Виробник: TE CONNECTIVITY
Description: TE CONNECTIVITY - 2MM-HSD-S05-VT-02-H-TB - Stiftleiste, Board-to-Board, 2 mm, 1 Reihe(n), 5 Kontakt(e), Durchsteckmontage, gerade
tariffCode: 85366110
rohsCompliant: YES
Kontaktüberzug: Vergoldete Kontakte
hazardous: false
rohsPhthalatesCompliant: YES
Kontaktmaterial: Phosphorbronze
isCanonical: Y
usEccn: EAR99
Steckverbinderkragen: Teilweise umhüllt
Anzahl der Kontakte: 5Kontakt(e)
euEccn: NLR
Steckverbindersysteme: Board-to-Board
Steckverbinder: PCB-Stiftleiste
Produktpalette: 2MM-HSD Series
productTraceability: No
Kontaktanschluss: Durchsteckmontage, gerade
Anzahl der Reihen: 1Reihe(n)
Rastermaß: 2mm
SVHC: No SVHC (04-Feb-2026)
| Кількість | Ціна |
|---|---|
| 9+ | 100.92 грн |
| 10+ | 97.64 грн |
| 100+ | 70.48 грн |
| 500+ | 64.15 грн |
Відгуки про товар
Написати відгук
Технічний опис 2MM-HSD-S05-VT-02-H-TB TE CONNECTIVITY
Description: 5P, AMPMODU 2 MM, SHROUDED HEADE, Packaging: Tube, Connector Type: Header, Voltage Rating: 250VAC, Current Rating (Amps): 2A, Mounting Type: Through Hole, Number of Positions: 5, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Contact Shape: Rectangular, Contact Length - Post: 0.110" (2.80mm), Insulation Height: 0.217" (5.51mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Thermoplastic, Contact Length - Mating: 0.157" (4.00mm).
Інші пропозиції 2MM-HSD-S05-VT-02-H-TB за ціною від 60.48 грн до 120.61 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2MM-HSD-S05-VT-02-H-TB | TE Connectivity AMP Connectors |
Description: 5P, AMPMODU 2 MM, SHROUDED HEADE Packaging: Tube Connector Type: Header Voltage Rating: 250VAC Current Rating (Amps): 2A Mounting Type: Through Hole Number of Positions: 5 Number of Rows: 1 Style: Board to Cable/Wire Operating Temperature: -40°C ~ 105°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Contact Shape: Rectangular Contact Length - Post: 0.110" (2.80mm) Insulation Height: 0.217" (5.51mm) Shrouding: Shrouded - 4 Wall Insulation Material: Thermoplastic Contact Length - Mating: 0.157" (4.00mm) |
на замовлення 4698 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||
 |
2MM-HSD-S05-VT-02-H-TB | TE Connectivity |
Headers & Wire Housings 5P,2MM,SHRD HDR,SRVT,2.8,0.76AU,TB |
на замовлення 4500 шт: термін постачання 21-30 дні (днів) |
|
| 2MM-HSD-S05-VT-02-H-TB |
|
Виробник: TE Connectivity AMP Connectors
Description: 5P, AMPMODU 2 MM, SHROUDED HEADE
Packaging: Tube
Connector Type: Header
Voltage Rating: 250VAC
Current Rating (Amps): 2A
Mounting Type: Through Hole
Number of Positions: 5
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Rectangular
Contact Length - Post: 0.110" (2.80mm)
Insulation Height: 0.217" (5.51mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Thermoplastic
Contact Length - Mating: 0.157" (4.00mm)
Description: 5P, AMPMODU 2 MM, SHROUDED HEADE
Packaging: Tube
Connector Type: Header
Voltage Rating: 250VAC
Current Rating (Amps): 2A
Mounting Type: Through Hole
Number of Positions: 5
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Rectangular
Contact Length - Post: 0.110" (2.80mm)
Insulation Height: 0.217" (5.51mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Thermoplastic
Contact Length - Mating: 0.157" (4.00mm)
на замовлення 4698 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 3+ | 114.72 грн |
| 45+ | 84.75 грн |
| 135+ | 78.42 грн |
| 540+ | 66.73 грн |
| 1035+ | 63.74 грн |
| 2MM-HSD-S05-VT-02-H-TB |
|
Виробник: TE Connectivity
Headers & Wire Housings 5P,2MM,SHRD HDR,SRVT,2.8,0.76AU,TB
Headers & Wire Housings 5P,2MM,SHRD HDR,SRVT,2.8,0.76AU,TB
на замовлення 4500 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 3+ | 120.61 грн |
| 10+ | 114.03 грн |
| 25+ | 79.47 грн |
| 90+ | 73.14 грн |
| 540+ | 65.90 грн |
| 1035+ | 62.87 грн |
| 2520+ | 60.48 грн |
