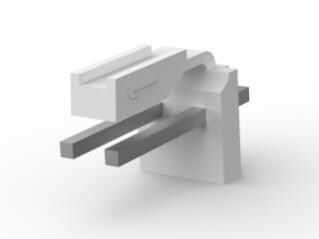

3-644611-2 TE Connectivity

Description: CONN HEADER VERT 2POS 3.96MM, Packaging: Bulk, Connector Type: Header, Voltage Rating: 600VAC, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Through Hole, Number of Positions: 2, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Friction Lock, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Natural, Pitch - Mating: 0.156" (3.96mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 150.0µin (3.81µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.125" (3.18mm), Insulation Height: 0.545" (13.84mm), Shrouding: Shrouded - 1 Wall, Overall Contact Length: 0.700" (17.78mm), Insulation Material: Thermoplastic, Glass Filled, Contact Length - Mating: 0.450" (11.43mm).
