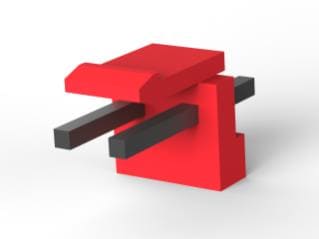

4-1123723-2 TE Connectivity / AMP

Description: CONN HEADER VERT 2POS 3.96MM, Contact Length - Mating: 0.303" (7.70mm), Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled, Overall Contact Length: 0.567" (14.40mm), Shrouding: Shrouded - 1 Wall, Operating Temperature: -25°C ~ 105°C, Style: Board to Cable/Wire, Number of Rows: 1, Number of Positions: 2, Mounting Type: Through Hole, Current Rating (Amps): 7.5A, Voltage Rating: 250VAC, Connector Type: Header, Packaging: Bulk, Insulation Height: 0.118" (3.00mm), Contact Length - Post: 0.146" (3.70mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish - Mating: Tin, Pitch - Mating: 0.156" (3.96mm), Insulation Color: Red, Contact Material: Brass, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Locking Ramp, Contact Type: Male Pin.
