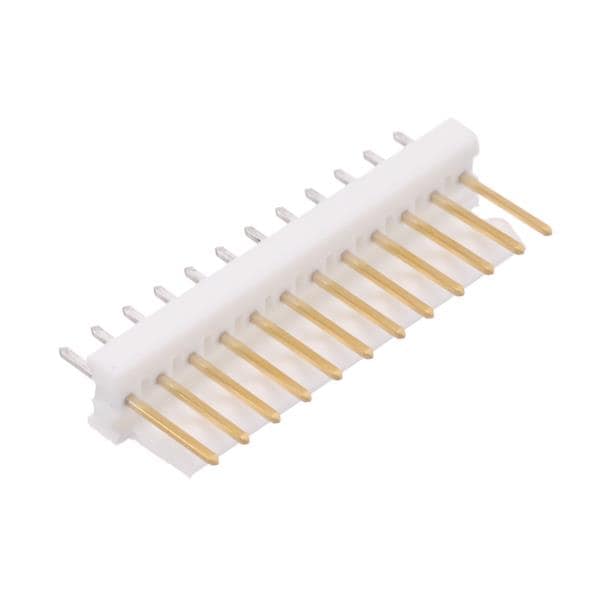

4-641215-2 TE Connectivity

Description: CONN HEADER VERT 12POS 2.54MM, Contact Length - Mating: 0.295" (7.49mm), Insulation Material: Thermoplastic, Overall Contact Length: 0.535" (13.59mm), Shrouding: Shrouded - 1 Wall, Insulation Height: 0.305" (7.75mm), Contact Length - Post: 0.140" (3.56mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Natural, Contact Material: Copper Alloy, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Friction Lock, Contact Type: Male Pin, Operating Temperature: -55°C ~ 105°C, Style: Board to Cable/Wire, Number of Rows: 1, Number of Positions: 12, Mounting Type: Through Hole, Current Rating (Amps): Varies by Wire Gauge, Voltage Rating: 250VAC, Connector Type: Header, Packaging: Bulk.
