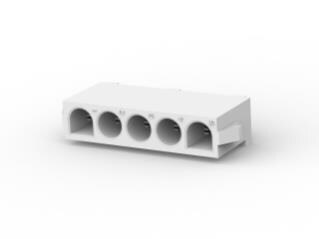

Технічний опис 643406-1 TE Connectivity / AMP
Description: CONN HEADER VERT 5POS 6.35MM, Features: Board Guide, Packaging: Bulk, Connector Type: Header, Voltage Rating: 600VAC, Current Rating (Amps): 12A, Mounting Type: Through Hole, Number of Positions: 5, Number of Rows: 1, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: White, Pitch - Mating: 0.250" (6.35mm), Contact Finish - Mating: Tin, Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Circular, Contact Length - Post: 0.155" (3.94mm), Insulation Height: 0.550" (13.97mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon.
Інші пропозиції 643406-1 за ціною від 70.40 грн до 126.59 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
643406-1 | TE Connectivity AMP Connectors |
 Description: CONN HEADER VERT 5POS 6.35MMFeatures: Board Guide Packaging: Bulk Connector Type: Header Voltage Rating: 600VAC Current Rating (Amps): 12A Mounting Type: Through Hole Number of Positions: 5 Number of Rows: 1 Style: Board to Cable/Wire Operating Temperature: -40°C ~ 105°C Contact Type: Male Pin Fastening Type: Locking Ramp Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: White Pitch - Mating: 0.250" (6.35mm) Contact Finish - Mating: Tin Contact Finish - Post: Tin Part Status: Active Contact Shape: Circular Contact Length - Post: 0.155" (3.94mm) Insulation Height: 0.550" (13.97mm) Shrouding: Shrouded - 4 Wall Insulation Material: Polyamide (PA), Nylon |
на замовлення 2477 шт: термін постачання 21-31 дні (днів) |
|
| 643406-1 |
|
Виробник: TE Connectivity AMP Connectors
Description: CONN HEADER VERT 5POS 6.35MM
Features: Board Guide
Packaging: Bulk
Connector Type: Header
Voltage Rating: 600VAC
Current Rating (Amps): 12A
Mounting Type: Through Hole
Number of Positions: 5
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: White
Pitch - Mating: 0.250" (6.35mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.155" (3.94mm)
Insulation Height: 0.550" (13.97mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA), Nylon
Description: CONN HEADER VERT 5POS 6.35MM
Features: Board Guide
Packaging: Bulk
Connector Type: Header
Voltage Rating: 600VAC
Current Rating (Amps): 12A
Mounting Type: Through Hole
Number of Positions: 5
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: White
Pitch - Mating: 0.250" (6.35mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.155" (3.94mm)
Insulation Height: 0.550" (13.97mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA), Nylon
на замовлення 2477 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 3+ | 126.59 грн |
| 10+ | 103.88 грн |
| 100+ | 88.26 грн |
| 500+ | 73.93 грн |
| 1000+ | 70.40 грн |
