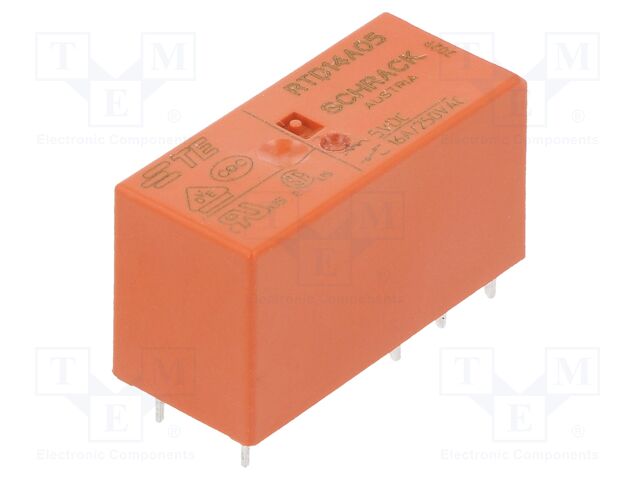

7-1415539-5 TE Connectivity
Виробник: TE Connectivity
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; Ucoil: 5VDC; SPDT; Icontacts max: 16A; RT1
Type of relay: electromagnetic
Coil voltage: 5V DC
Contacts configuration: SPDT
Contact current max.: 16A
Switched voltage: max. 400V AC
Coil voltage min.: 3.5V DC
Relay variant: miniature
Manufacturer series: RT1
Mounting: THT
Body dimensions: 29x15.7x12.7mm
AC contacts rating @R: 16A / 250V AC
Coil resistance: 62Ω
Contact material: AgNi
Coil power consumption: 403mW
Mechanical durability: 30000000 cycles
Operating temperature: -40...85°C
Height: 15.7mm
IP rating: IP67
Max surge current: 30A
Terminal pitch: 5mm
Number of pins: 8
Switching capacity: 4kVA
| Кількість | Ціна без ПДВ |
|---|---|
| 1+ | 462.31 грн |
| 10+ | 398.75 грн |
| 100+ | 341.91 грн |
Відгуки про товар
Написати відгук
Технічний опис 7-1415539-5 TE Connectivity
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; Ucoil: 5VDC; SPDT; Icontacts max: 16A; RT1, Type of relay: electromagnetic, Coil voltage: 5V DC, Contacts configuration: SPDT, Contact current max.: 16A, Switched voltage: max. 400V AC, Coil voltage min.: 3.5V DC, Relay variant: miniature, Manufacturer series: RT1, Mounting: THT, Body dimensions: 29x15.7x12.7mm, AC contacts rating @R: 16A / 250V AC, Coil resistance: 62Ω, Contact material: AgNi, Coil power consumption: 403mW, Mechanical durability: 30000000 cycles, Operating temperature: -40...85°C, Height: 15.7mm, IP rating: IP67, Max surge current: 30A, Terminal pitch: 5mm, Number of pins: 8, Switching capacity: 4kVA.
Інші пропозиції 7-1415539-5
| Фото | Назва | Виробник | Інформація | Доступність | Ціна без ПДВ |
|---|---|---|---|---|---|
 |
7-1415539-5 | TE Connectivity Potter & Brumfield Relays |
Description: RTD14A05 Load - Max Switching: 4800VA Coil Insulation: Class F Release Time: 6 ms Operate Time: 8 ms Must Operate Voltage: 3.5 VDC Must Release Voltage: 0.5 VDC Switching Voltage: 400VAC - Max Contact Rating (Current): 12 A Contact Form: SPDT (1 Form C) Contact Material: Silver Nickel (AgNi) Seal Rating: Sealed - Fully Coil Type: Latching, Single Coil Coil Current: 80.6 mA Relay Type: General Purpose Approval Agency: CQC, CSA, cURus, VDE Termination Style: PC Pin Operating Temperature: -40°C ~ 85°C Coil Voltage: 5VDC Mounting Type: Through Hole Packaging: Tube |
товару немає в наявності |
Мінімальне замовлення: 2000 шт В кошику од. на суму грн. |
 |
7-1415539-5 | TE Connectivity / P&B |
General Purpose Relays RTD14A05 |
товару немає в наявності |
Мінімальне замовлення: 2000 шт В кошику од. на суму грн. |
| 7-1415539-5 |
|
Виробник: TE Connectivity Potter & Brumfield Relays
Description: RTD14A05
Load - Max Switching: 4800VA
Coil Insulation: Class F
Release Time: 6 ms
Operate Time: 8 ms
Must Operate Voltage: 3.5 VDC
Must Release Voltage: 0.5 VDC
Switching Voltage: 400VAC - Max
Contact Rating (Current): 12 A
Contact Form: SPDT (1 Form C)
Contact Material: Silver Nickel (AgNi)
Seal Rating: Sealed - Fully
Coil Type: Latching, Single Coil
Coil Current: 80.6 mA
Relay Type: General Purpose
Approval Agency: CQC, CSA, cURus, VDE
Termination Style: PC Pin
Operating Temperature: -40°C ~ 85°C
Coil Voltage: 5VDC
Mounting Type: Through Hole
Packaging: Tube
Description: RTD14A05
Load - Max Switching: 4800VA
Coil Insulation: Class F
Release Time: 6 ms
Operate Time: 8 ms
Must Operate Voltage: 3.5 VDC
Must Release Voltage: 0.5 VDC
Switching Voltage: 400VAC - Max
Contact Rating (Current): 12 A
Contact Form: SPDT (1 Form C)
Contact Material: Silver Nickel (AgNi)
Seal Rating: Sealed - Fully
Coil Type: Latching, Single Coil
Coil Current: 80.6 mA
Relay Type: General Purpose
Approval Agency: CQC, CSA, cURus, VDE
Termination Style: PC Pin
Operating Temperature: -40°C ~ 85°C
Coil Voltage: 5VDC
Mounting Type: Through Hole
Packaging: Tube
товару немає в наявності
Мінімальне замовлення: 2000 шт
В кошику
од. на суму грн.
| 7-1415539-5 |
|
Виробник: TE Connectivity / P&B
General Purpose Relays RTD14A05
General Purpose Relays RTD14A05
товару немає в наявності
Мінімальне замовлення: 2000 шт
В кошику
од. на суму грн.
