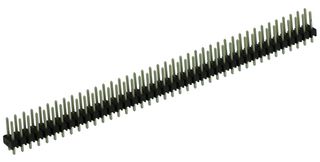

9-146258-0 TE Connectivity

Description: CONN HEADER VERT 80POS 2.54MM, Packaging: Bulk, Connector Type: Header, Breakaway, Current Rating (Amps): 3A, Mounting Type: Through Hole, Number of Positions: 80, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -65°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 100.0µin (2.54µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.090" (2.29mm), Insulation Height: 0.090" (2.29mm), Shrouding: Unshrouded, Overall Contact Length: 0.410" (10.41mm), Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.230" (5.84mm).
