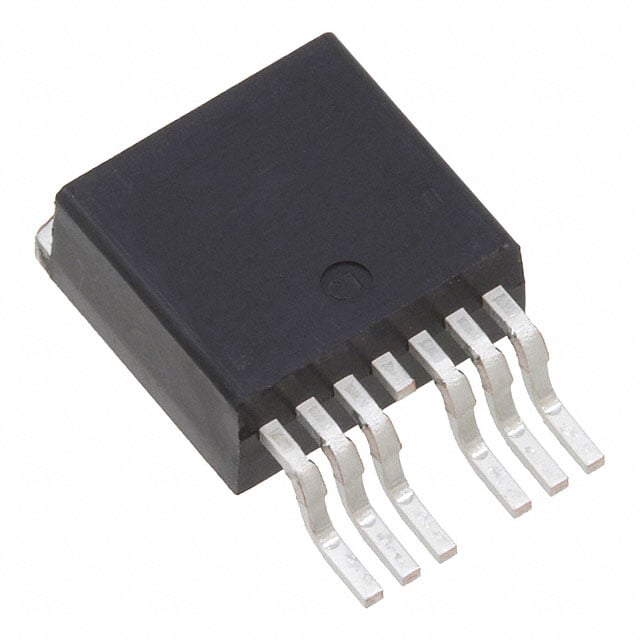

IRFS7530TRL7PP

Виробник: Infineon Technologies
Description: MOSFET N CH 60V 240A D2PAK
Packaging: Tape & Reel (TR)
Package / Case: TO-263-7, D2PAK (6 Leads + Tab)
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 240A (Tc)
Rds On (Max) @ Id, Vgs: 1.4mOhm @ 100A, 10V
Power Dissipation (Max): 375W (Tc)
Vgs(th) (Max) @ Id: 3.7V @ 250µA
Supplier Device Package: PG-TO263-7
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 354 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 12960 pF @ 25 V

Виробник: Infineon Technologies
Trans MOSFET N-CH Si 60V 338A 7-Pin(6+Tab) D2PAK T/R

Виробник: Infineon Technologies
Trans MOSFET N-CH Si 60V 338A 7-Pin(6+Tab) D2PAK T/R

Виробник: Infineon Technologies
Trans MOSFET N-CH Si 60V 338A 7-Pin(6+Tab) D2PAK T/R

Виробник: Infineon Technologies
Trans MOSFET N-CH Si 60V 338A 7-Pin(6+Tab) D2PAK T/R

Виробник: Infineon Technologies
Trans MOSFET N-CH Si 60V 338A 7-Pin(6+Tab) D2PAK T/R

Виробник: Infineon Technologies
Trans MOSFET N-CH Si 60V 338A 7-Pin(6+Tab) D2PAK T/R

Виробник: INFINEON TECHNOLOGIES
Category: SMD N channel transistors
Description: Transistor: N-MOSFET; unipolar; 60V; 240A; 375W; D2PAK-7
Type of transistor: N-MOSFET
Technology: HEXFET®
Polarisation: unipolar
Drain-source voltage: 60V
Drain current: 240A
Power dissipation: 375W
Case: D2PAK-7
Gate-source voltage: ±20V
On-state resistance: 1.4mΩ
Mounting: SMD
Gate charge: 236nC
Kind of channel: enhancement
Trade name: StrongIRFET

Виробник: Infineon Technologies
Trans MOSFET N-CH Si 60V 338A 7-Pin(6+Tab) D2PAK T/R

Виробник: Infineon Technologies
Description: MOSFET N CH 60V 240A D2PAK
Packaging: Cut Tape (CT)
Package / Case: TO-263-7, D2PAK (6 Leads + Tab)
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 175°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 240A (Tc)
Rds On (Max) @ Id, Vgs: 1.4mOhm @ 100A, 10V
Power Dissipation (Max): 375W (Tc)
Vgs(th) (Max) @ Id: 3.7V @ 250µA
Supplier Device Package: PG-TO263-7
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 60 V
Gate Charge (Qg) (Max) @ Vgs: 354 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 12960 pF @ 25 V

Виробник: Infineon Technologies
Trans MOSFET N-CH Si 60V 338A 7-Pin(6+Tab) D2PAK T/R

Виробник: Infineon Technologies
MOSFETs MOSFET N CH 60V 240A D2PAK

Виробник: INFINEON
Description: INFINEON - IRFS7530TRL7PP - Leistungs-MOSFET, n-Kanal, 60 V, 240 A, 1400 µohm, TO-263 (D2PAK), Oberflächenmontage
tariffCode: 85412900
Transistormontage: Oberflächenmontage
euEccn: NLR
Drain-Source-Spannung Vds: 60V
rohsCompliant: YES
Dauer-Drainstrom Id: 240A
hazardous: false
rohsPhthalatesCompliant: YES
Qualifikation: -
isCanonical: Y
MSL: MSL 1 - unbegrenzt
Gate-Source-Schwellenspannung, max.: 3.7V
Verlustleistung: 375W
SVHC: No SVHC (25-Jun-2025)
Bauform - Transistor: TO-263 (D2PAK)
Anzahl der Pins: 7Pin(s)
Produktpalette: -
productTraceability: Yes-Date/Lot Code
usEccn: EAR99
Kanaltyp: n-Kanal
Betriebstemperatur, max.: 175°C
Rds(on)-Prüfspannung: 10V
Drain-Source-Durchgangswiderstand: 1400µohm
