SIS413DN-T1-GE3

Виробник: Vishay
Trans MOSFET P-CH 30V 18A 8-Pin PowerPAK 1212 T/R

Виробник: Vishay
Trans MOSFET P-CH 30V 18A 8-Pin PowerPAK 1212 T/R

Виробник: Vishay Siliconix
Description: MOSFET P-CH 30V 18A PPAK 1212-8
Packaging: Tape & Reel (TR)
Package / Case: PowerPAK® 1212-8
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 18A (Tc)
Rds On (Max) @ Id, Vgs: 9.4mOhm @ 15A, 10V
Power Dissipation (Max): 3.7W (Ta), 52W (Tc)
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Supplier Device Package: PowerPAK® 1212-8
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 110 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 4280 pF @ 15 V

Виробник: Vishay
Trans MOSFET P-CH 30V 18A 8-Pin PowerPAK 1212 EP T/R

Виробник: Vishay
Trans MOSFET P-CH 30V 18A 8-Pin PowerPAK 1212 EP T/R

Виробник: Vishay
Trans MOSFET P-CH 30V 18A 8-Pin PowerPAK 1212 T/R

Виробник: Vishay
Trans MOSFET P-CH 30V 18A 8-Pin PowerPAK 1212 EP T/R

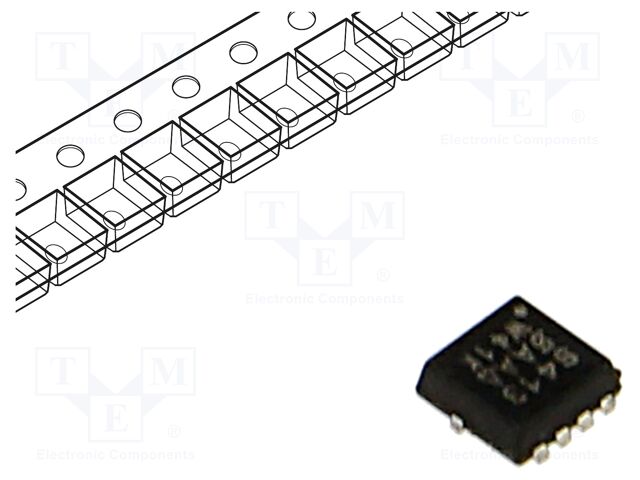

Виробник: VISHAY
Category: SMD P channel transistors
Description: Transistor: P-MOSFET; TrenchFET®; unipolar; -30V; -18A; Idm: -70A
Type of transistor: P-MOSFET
Technology: TrenchFET®
Polarisation: unipolar
Drain-source voltage: -30V
Drain current: -18A
Pulsed drain current: -70A
Power dissipation: 33W
Case: PowerPAK® 1212-8
Gate-source voltage: ±20V
On-state resistance: 13.2mΩ
Mounting: SMD
Gate charge: 110nC
Kind of package: reel; tape
Kind of channel: enhancement

Виробник: Vishay Siliconix
Description: MOSFET P-CH 30V 18A PPAK 1212-8
Packaging: Cut Tape (CT)
Package / Case: PowerPAK® 1212-8
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: P-Channel
Current - Continuous Drain (Id) @ 25°C: 18A (Tc)
Rds On (Max) @ Id, Vgs: 9.4mOhm @ 15A, 10V
Power Dissipation (Max): 3.7W (Ta), 52W (Tc)
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Supplier Device Package: PowerPAK® 1212-8
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 30 V
Gate Charge (Qg) (Max) @ Vgs: 110 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 4280 pF @ 15 V

Виробник: Vishay Semiconductors
MOSFETs -30V Vds 20V Vgs PowerPAK 1212-8

Виробник: VISHAY
Description: VISHAY - SIS413DN-T1-GE3 - Leistungs-MOSFET, p-Kanal, 30 V, 18 A, 9400 µohm, PowerPAK 1212, Oberflächenmontage
tariffCode: 85412900
Transistormontage: Oberflächenmontage
euEccn: NLR
Drain-Source-Spannung Vds: 30V
rohsCompliant: YES
Dauer-Drainstrom Id: 18A
hazardous: false
rohsPhthalatesCompliant: YES
Qualifikation: -
isCanonical: Y
MSL: MSL 1 - unbegrenzt
Gate-Source-Schwellenspannung, max.: 2.5V
Verlustleistung: 52W
SVHC: No SVHC (04-Feb-2026)
Bauform - Transistor: PowerPAK 1212
Anzahl der Pins: 8Pin(s)
Produktpalette: TrenchFET
productTraceability: Yes-Date/Lot Code
usEccn: EAR99
Kanaltyp: p-Kanal
Betriebstemperatur, max.: 150°C
Rds(on)-Prüfspannung: 10V
Drain-Source-Durchgangswiderstand: 9400µohm

Виробник: VISHAY
Description: VISHAY - SIS413DN-T1-GE3 - Leistungs-MOSFET, p-Kanal, 30 V, 18 A, 9400 µohm, PowerPAK 1212, Oberflächenmontage
tariffCode: 85412900
Transistormontage: Oberflächenmontage
Drain-Source-Spannung Vds: 30V
rohsCompliant: YES
Dauer-Drainstrom Id: 18A
hazardous: false
rohsPhthalatesCompliant: YES
Qualifikation: -
isCanonical: N
MSL: MSL 1 - unbegrenzt
usEccn: EAR99
Gate-Source-Schwellenspannung, max.: 2.5V
euEccn: NLR
Verlustleistung: 52W
Bauform - Transistor: PowerPAK 1212
Anzahl der Pins: 8Pin(s)
Produktpalette: TrenchFET
productTraceability: No
Kanaltyp: p-Kanal
Rds(on)-Prüfspannung: 10V
Betriebstemperatur, max.: 150°C
Drain-Source-Durchgangswiderstand: 9400µohm
SVHC: No SVHC (25-Jun-2025)
