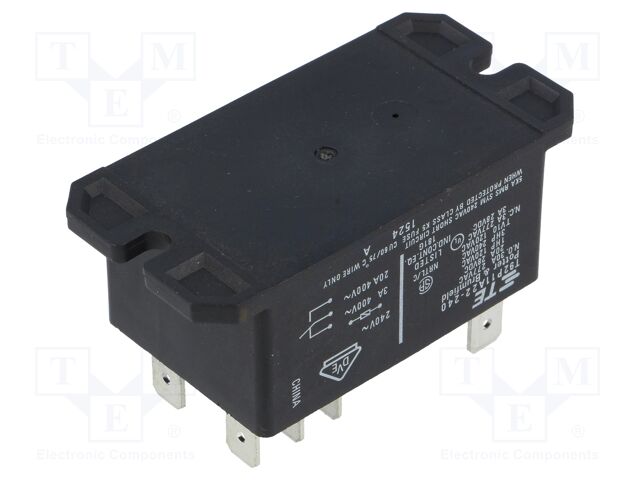

Технічний опис 4-1393211-4 TE Connectivity
Category: Power Electromagnetic Relays, Description: Relay: electromagnetic; DPDT; Ucoil: 240VAC; 30A; Series: T92; 3.8kΩ, Type of relay: electromagnetic, Contacts configuration: DPDT, Rated coil voltage: 240V AC, Contact current max.: 30A, Relay series: T92, Relay variant: power, Operating temperature: -40...65°C, Mounting: on panel, Body dimensions: 65.85x34.54x26.42mm, Switched voltage: max. 28V DC; max. 600V AC, Coil resistance: 3.8kΩ, AC contacts rating @R: 30A / 277V AC, Contact material: AgCdO, Coil power consumption: 4W, Leads: connectors 6,35x0,8mm, DC contacts rating @R: 20A / 28V DC, Mechanical durability: 5000000 cycles, кількість в упаковці: 1 шт.
Інші пропозиції 4-1393211-4
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна без ПДВ |
|---|---|---|---|---|---|
|
T92P11A22-240 (4-1393211-4) /TE CONNECTIVITY Код товару: 117008 |
Реле |
товар відсутній
|
|||
 |
4-1393211-4 | Виробник : TE Connectivity |
 Power Relay 240VAC 30A DPDT(68.58x34.54x37.97)mm Flange |
товар відсутній |
|
 |
4-1393211-4 | Виробник : TE Connectivity |
Category: Power Electromagnetic Relays Description: Relay: electromagnetic; DPDT; Ucoil: 240VAC; 30A; Series: T92; 3.8kΩ Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 240V AC Contact current max.: 30A Relay series: T92 Relay variant: power Operating temperature: -40...65°C Mounting: on panel Body dimensions: 65.85x34.54x26.42mm Switched voltage: max. 28V DC; max. 600V AC Coil resistance: 3.8kΩ AC contacts rating @R: 30A / 277V AC Contact material: AgCdO Coil power consumption: 4W Leads: connectors 6,35x0,8mm DC contacts rating @R: 20A / 28V DC Mechanical durability: 5000000 cycles кількість в упаковці: 1 шт |
товар відсутній |
|
|
|
4-1393211-4 | Виробник : TE Connectivity |
Category: Power Electromagnetic Relays Description: Relay: electromagnetic; DPDT; Ucoil: 240VAC; 30A; Series: T92; 3.8kΩ Type of relay: electromagnetic Contacts configuration: DPDT Rated coil voltage: 240V AC Contact current max.: 30A Relay series: T92 Relay variant: power Operating temperature: -40...65°C Mounting: on panel Body dimensions: 65.85x34.54x26.42mm Switched voltage: max. 28V DC; max. 600V AC Coil resistance: 3.8kΩ AC contacts rating @R: 30A / 277V AC Contact material: AgCdO Coil power consumption: 4W Leads: connectors 6,35x0,8mm DC contacts rating @R: 20A / 28V DC Mechanical durability: 5000000 cycles |
товар відсутній |
