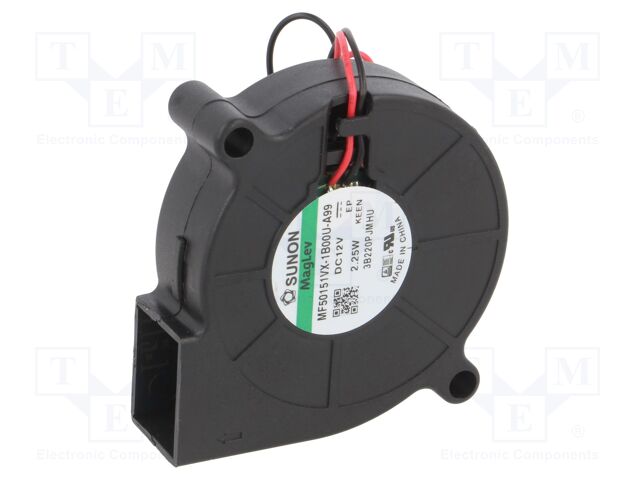

MF50151VX-1B00U-A99 SUNON
Виробник: SUNONCategory: DC12V Fans
Description: Fan: DC; blower; 12VDC; 51.7x51.6x15mm; 9.18m3/h; 42.2dBA; Vapo
Insulation class: A
Additional functions: autorestart
Kind of fan: blower
Fan motor: brushless DC
Type of fan: DC
Leads: leads x2
Impeller material: thermoplastic
Enclosure material: thermoplastic
Flammability rating: UL94V-0
Kind of Bearing: Vapo
Operating temperature: -10...70°C
Fan dimensions: 51.7x51.6x15mm
Current rating: 179mA
Lead length: 0.305m
Power consumption: 2.15W
Operating voltage: 4.5...13.8V DC
Fan efficiency: 9.18m3/h
Supply voltage: 12V DC
Current and power consumption tolerance: ±15%
Static pressure: 22.35mm H2O
Wire size: 26AWG
Noise level: 42.2dBA
Rotational rate/speed: 6200rpm
Min. insulation resistance: 10MΩ
на замовлення 1511 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 396.47 грн |
| 10+ | 338.85 грн |
| 50+ | 293.73 грн |
| 200+ | 263.64 грн |
Відгуки про товар
Написати відгук
Технічний опис MF50151VX-1B00U-A99 SUNON
Category: DC12V Fans, Description: Fan: DC; blower; 12VDC; 51.7x51.6x15mm; 9.18m3/h; 42.2dBA; Vapo, Insulation class: A, Additional functions: autorestart, Kind of fan: blower, Fan motor: brushless DC, Type of fan: DC, Leads: leads x2, Impeller material: thermoplastic, Enclosure material: thermoplastic, Flammability rating: UL94V-0, Kind of Bearing: Vapo, Operating temperature: -10...70°C, Fan dimensions: 51.7x51.6x15mm, Current rating: 179mA, Lead length: 0.305m, Power consumption: 2.15W, Operating voltage: 4.5...13.8V DC, Fan efficiency: 9.18m3/h, Supply voltage: 12V DC, Current and power consumption tolerance: ±15%, Static pressure: 22.35mm H2O, Wire size: 26AWG, Noise level: 42.2dBA, Rotational rate/speed: 6200rpm, Min. insulation resistance: 10MΩ, кількість в упаковці: 1 шт.
Інші пропозиції MF50151VX-1B00U-A99 за ціною від 305.00 грн до 804.26 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF50151VX-1B00U-A99 | Виробник : SUNON |
Category: DC12V FansDescription: Fan: DC; blower; 12VDC; 51.7x51.6x15mm; 9.18m3/h; 42.2dBA; Vapo Insulation class: A Additional functions: autorestart Kind of fan: blower Fan motor: brushless DC Type of fan: DC Leads: leads x2 Impeller material: thermoplastic Enclosure material: thermoplastic Flammability rating: UL94V-0 Kind of Bearing: Vapo Operating temperature: -10...70°C Fan dimensions: 51.7x51.6x15mm Current rating: 179mA Lead length: 0.305m Power consumption: 2.15W Operating voltage: 4.5...13.8V DC Fan efficiency: 9.18m3/h Supply voltage: 12V DC Current and power consumption tolerance: ±15% Static pressure: 22.35mm H2O Wire size: 26AWG Noise level: 42.2dBA Rotational rate/speed: 6200rpm Min. insulation resistance: 10MΩ кількість в упаковці: 1 шт |
на замовлення 1511 шт: термін постачання 14-21 дні (днів) |
|
||||||||||||||||
|
MF50151VX-1B00U-A99 | Виробник : Sunon Fans |
Description: FAN BLOWER 51.7X15MM 12VDC WIREFeatures: Auto Restart Packaging: Bulk Voltage - Rated: 12VDC Size / Dimension: Square/Rounded - 51.7mm L x 51.6mm H Bearing Type: Vapo-Bearing™ RPM: 6200 RPM Air Flow: 5.4 CFM (0.151m³/min) Width: 15.00mm Termination: 2 Wire Leads Approval Agency: CCC, CE, cURus, TUV Fan Type: Blower Noise: 42.2dB(A) Static Pressure: 0.970 in H2O (241.6 Pa) Part Status: Active Power (Watts): 1.86 W |
на замовлення 507 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||
|
MF50151VX-1B00U-A99 | Виробник : Sunon |
Blowers & Centrifugal Fans Blower, 50x50x15mm, 12VDC, 5.2CFM, 1.86W, Vapo, Wire, Auto Restart, MagLev |
на замовлення 222 шт: термін постачання 21-30 дні (днів) |
|
||||||||||||||||
| MF50151VX-1B00U-A99 | Виробник : Sunon |
MF50151VX-1B00U-A99 |
на замовлення 2119 шт: термін постачання 21-31 дні (днів) |
|
|||||||||||||||||
|
Вентилятор 50x50x15, 12V, "равлик" (MF50151VX-A99-B) Код товару: 121449
Додати до обраних
Обраний товар
|
Виробник : Sunon |
Корпусні та встановлювальні вироби > Вентилятори та аксесуари Габаритні розміри, mm: 50x50x15 mm Напруга, В: 12 DC Об’єм повітря, м.куб/год.: 9,18 м³/год. Потужність, W: 2,04 Вт Шум, dB: 42,2 дБ Швидкість обертання, об/хв: 6000 об/хв Опис: Підшипник Vapo (магнітна підвіска) |
товару немає в наявності
|
|
