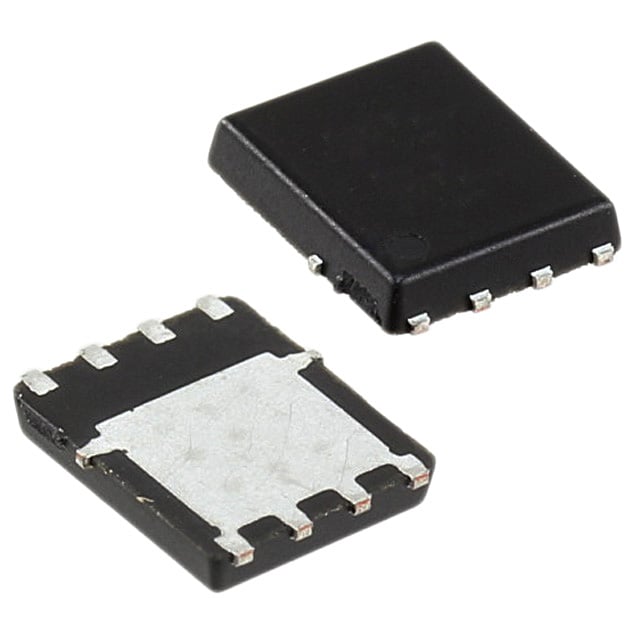

SIR422DP-T1-GE3

Виробник: Vishay Semiconductors
MOSFETs 40V Vds 20V Vgs PowerPAK SO-8

Виробник: Vishay Siliconix
Description: MOSFET N-CH 40V 40A PPAK SO-8
Packaging: Cut Tape (CT)
Package / Case: PowerPAK® SO-8
Mounting Type: Surface Mount
Operating Temperature: -55°C ~ 150°C (TJ)
Technology: MOSFET (Metal Oxide)
FET Type: N-Channel
Current - Continuous Drain (Id) @ 25°C: 40A (Tc)
Rds On (Max) @ Id, Vgs: 6.6mOhm @ 20A, 10V
Power Dissipation (Max): 5W (Ta), 34.7W (Tc)
Vgs(th) (Max) @ Id: 2.5V @ 250µA
Supplier Device Package: PowerPAK® SO-8
Part Status: Active
Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
Vgs (Max): ±20V
Drain to Source Voltage (Vdss): 40 V
Gate Charge (Qg) (Max) @ Vgs: 48 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds: 1785 pF @ 20 V

Виробник: VISHAY
Description: VISHAY - SIR422DP-T1-GE3 - Leistungs-MOSFET, n-Kanal, 40 V, 40 A, 6600 µohm, PowerPAK SO, Oberflächenmontage
tariffCode: 85412900
Transistormontage: Oberflächenmontage
euEccn: NLR
Drain-Source-Spannung Vds: 40V
rohsCompliant: YES
Dauer-Drainstrom Id: 40A
hazardous: false
rohsPhthalatesCompliant: YES
Qualifikation: -
isCanonical: Y
MSL: -
Gate-Source-Schwellenspannung, max.: 1.2V
Verlustleistung: 5W
SVHC: Lead (04-Feb-2026)
Bauform - Transistor: PowerPAK SO
Anzahl der Pins: 8Pin(s)
Produktpalette: -
productTraceability: Yes-Date/Lot Code
usEccn: EAR99
Kanaltyp: n-Kanal
Betriebstemperatur, max.: 150°C
Rds(on)-Prüfspannung: 10V
Drain-Source-Durchgangswiderstand: 6600µohm
