Виробник: Watech Electronics
Description: IC REG BUCK BOOST PROG 24WLCSP
Packaging: Tape & Reel (TR)
Package / Case: 24-BGA, WLCSP
Output Type: Programmable
Mounting Type: Surface Mount
Number of Outputs: 1
Function: Step-Up/Step-Down
Current - Output: 500mA
Operating Temperature: -40°C ~ 85°C (TA)
Output Configuration: Positive
Voltage - Input (Max): 5.5V
Topology: Buck-Boost
Supplier Device Package: 24-WLCSP (2.48x1.77)
Synchronous Rectifier: No
Voltage - Output (Max): 5.5V
Voltage - Input (Min): 2.5V
Voltage - Output (Min/Fixed): 0.3V

Виробник: Watech Electronics
Description: 1200V 40A IGBT without FRD TO-2
Packaging: Bulk

Виробник: Watech Electronics
Description: IGBT 1200V 80A TO-247-3
Packaging: Bulk
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 175°C (TJ)
Input Type: Standard
Reverse Recovery Time (trr): 378 ns
Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 40A
Supplier Device Package: TO-247-3
Td (on/off) @ 25°C: 68ns/383ns
Switching Energy: 2.23mJ (on), 1.64mJ (off)
Test Condition: 600V, 40A, 12Ohm, 15V
Gate Charge: 300 nC
Current - Collector (Ic) (Max): 80 A
Voltage - Collector Emitter Breakdown (Max): 1200 V
Current - Collector Pulsed (Icm): 160 A
Power - Max: 441 W

Виробник: Watech Electronics
Description: IGBT 1200V 80A TO-247-3
Packaging: Bulk
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 175°C (TJ)
Input Type: Standard
Reverse Recovery Time (trr): 153 ns
Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 40A
Supplier Device Package: TO-247-3
Td (on/off) @ 25°C: 75ns/320ns
Switching Energy: 2.48mJ (on), 1.31mJ (off)
Test Condition: 600V, 40A, 12Ohm, 15V
Gate Charge: 307 nC
Grade: Automotive
Current - Collector (Ic) (Max): 80 A
Voltage - Collector Emitter Breakdown (Max): 1200 V
Current - Collector Pulsed (Icm): 160 A
Power - Max: 441 W
Qualification: AEC-Q101

Виробник: Watech Electronics
Description: IGBT 1200V 80A TO-247-3
Packaging: Bulk
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 175°C (TJ)
Input Type: Standard
Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 40A
Supplier Device Package: TO-247-3
Td (on/off) @ 25°C: 90ns/362ns
Switching Energy: 1.55mJ (on), 1.68mJ (off)
Test Condition: 600V, 40A, 12Ohm, 15V
Gate Charge: 307 nC
Current - Collector (Ic) (Max): 80 A
Voltage - Collector Emitter Breakdown (Max): 1200 V
Current - Collector Pulsed (Icm): 160 A
Power - Max: 441 W

Виробник: Watech Electronics
Description: IGBT FIELD STOP 1200V 82A TO-247
Packaging: Bulk
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 175°C (TJ)
Input Type: Standard
Reverse Recovery Time (trr): 390 ns
Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 40A
Supplier Device Package: TO-247-3
IGBT Type: Field Stop
Td (on/off) @ 25°C: 68ns/274ns
Switching Energy: 2.92mJ (on), 2.84mJ (off)
Test Condition: 600V, 40A, 10Ohm, 15V
Gate Charge: 296 nC
Current - Collector (Ic) (Max): 82 A
Voltage - Collector Emitter Breakdown (Max): 1200 V
Current - Collector Pulsed (Icm): 160 A
Power - Max: 714 W

Виробник: Watech Electronics
Description: IGBT 650V 90A TO-247-3
Packaging: Bulk
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 175°C (TJ)
Input Type: Standard
Reverse Recovery Time (trr): 86 ns
Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 75A
Supplier Device Package: TO-247-3
Td (on/off) @ 25°C: 21ns/95ns
Switching Energy: 2.72mJ (on), 750µJ (off)
Test Condition: 400V, 75A, 9Ohm, 15V
Gate Charge: 103 nC
Current - Collector (Ic) (Max): 90 A
Voltage - Collector Emitter Breakdown (Max): 650 V
Current - Collector Pulsed (Icm): 300 A
Power - Max: 394 W

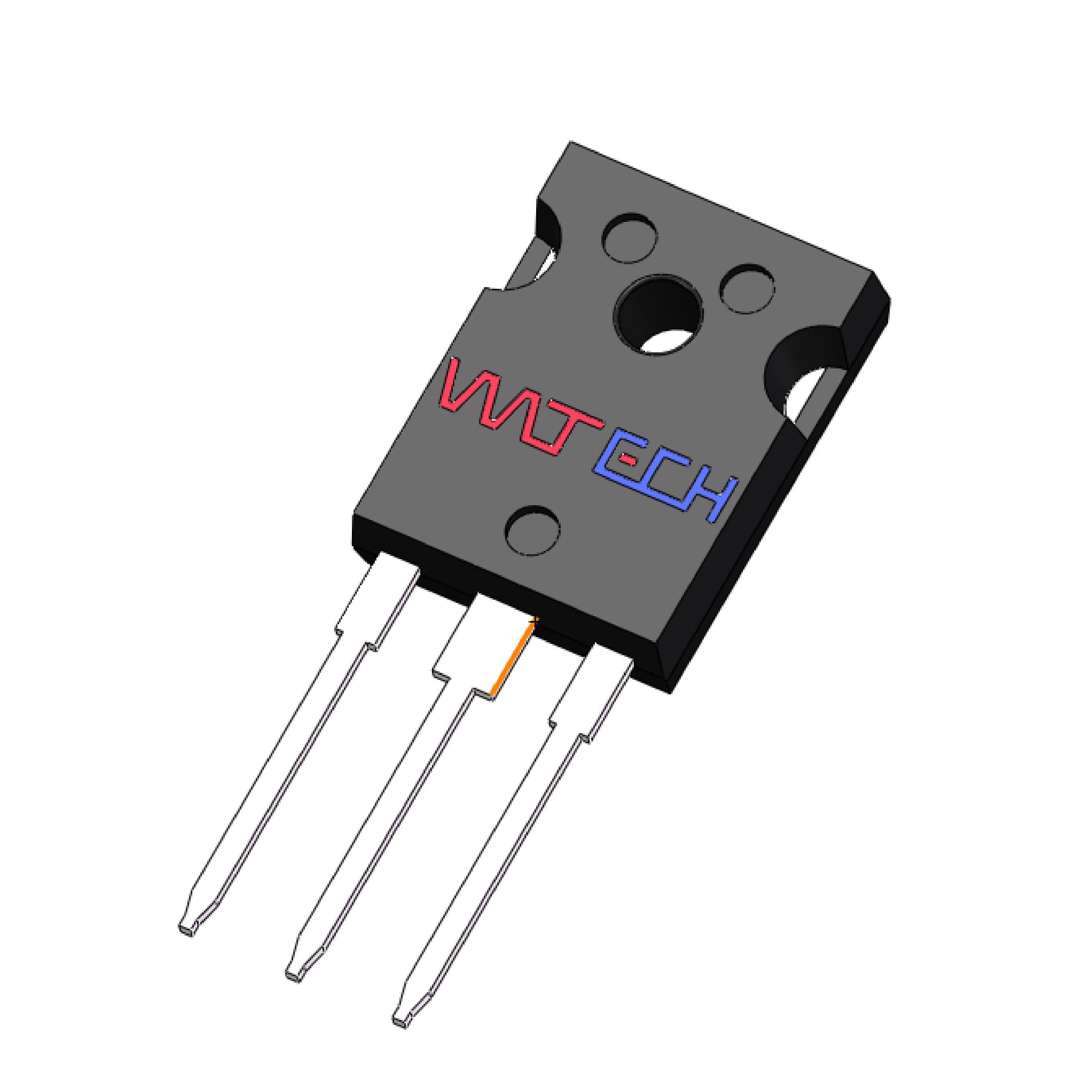

Виробник: Watech Electronics
Description: IGBT 650V 90A TO-247-3
Packaging: Bulk
Package / Case: TO-247-3
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 175°C (TJ)
Input Type: Standard
Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 75A
Supplier Device Package: TO-247-3
Td (on/off) @ 25°C: 25ns/106ns
Switching Energy: 1.3mJ (on), 800µJ (off)
Test Condition: 400V, 75A, 1.5Ohm, 15V
Gate Charge: 92 nC
Current - Collector (Ic) (Max): 90 A
Voltage - Collector Emitter Breakdown (Max): 650 V
Current - Collector Pulsed (Icm): 300 A
Power - Max: 395 W

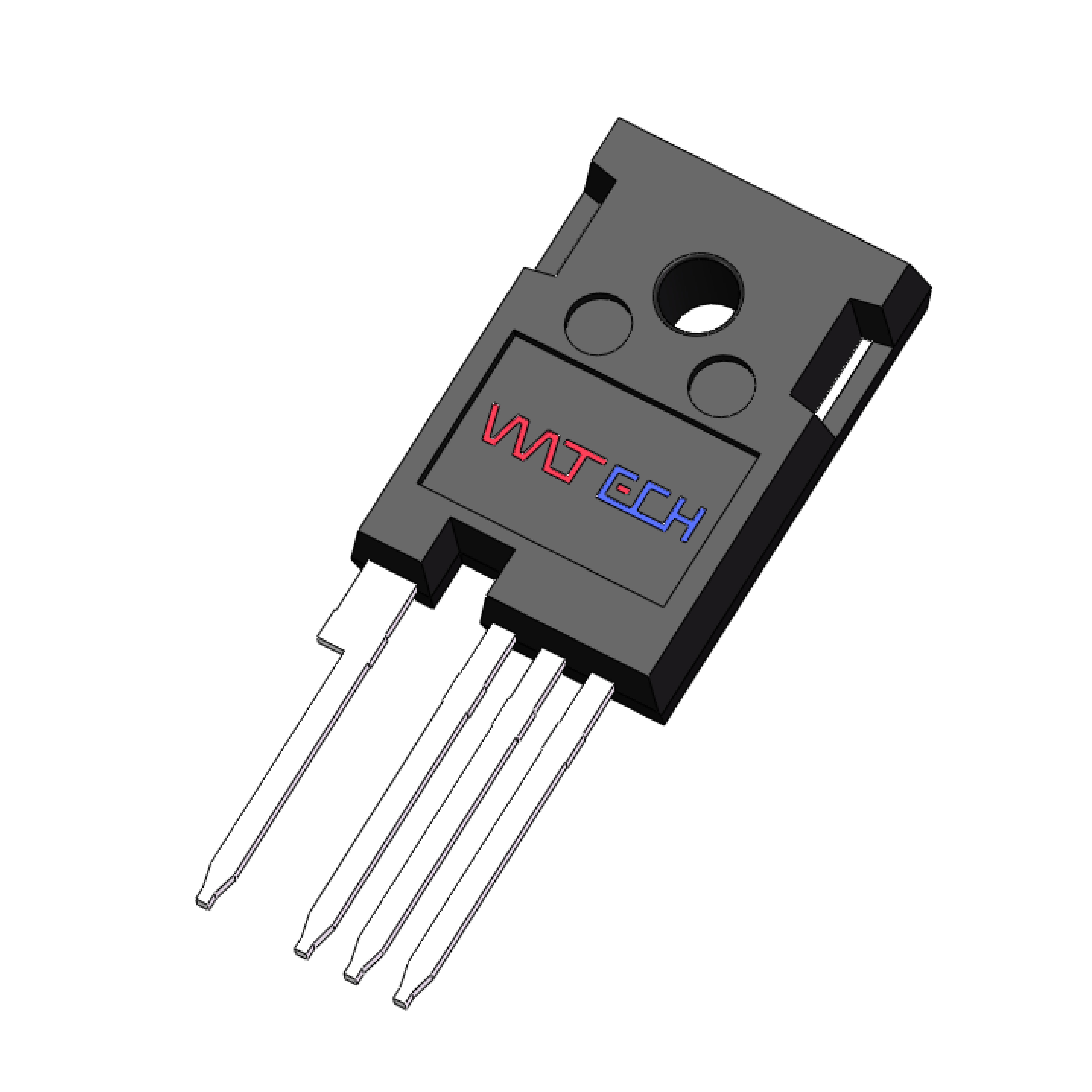

Виробник: Watech Electronics
Description: IGBT 650V 90A TO-247-4
Packaging: Bulk
Package / Case: TO-247-4
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 175°C (TJ)
Input Type: Standard
Reverse Recovery Time (trr): 83 ns
Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 75A
Supplier Device Package: TO-247-4
Td (on/off) @ 25°C: 41ns/180ns
Switching Energy: 2.39mJ (on), 730µJ (off)
Test Condition: 400V, 75A, 20Ohm, 15V
Gate Charge: 103 nC
Current - Collector (Ic) (Max): 90 A
Voltage - Collector Emitter Breakdown (Max): 650 V
Current - Collector Pulsed (Icm): 300 A
Power - Max: 394 W

Виробник: Watech Electronics
Description: IGBT 650V 90A TO-247-4
Packaging: Bulk
Package / Case: TO-247-4
Mounting Type: Through Hole
Operating Temperature: -40°C ~ 175°C (TJ)
Input Type: Standard
Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 75A
Supplier Device Package: TO-247-4
Td (on/off) @ 25°C: 26ns/110ns
Switching Energy: 460µJ (on), 660µJ (off)
Test Condition: 400V, 75A, 1.5Ohm, 15V
Gate Charge: 92 nC
Current - Collector (Ic) (Max): 90 A
Voltage - Collector Emitter Breakdown (Max): 650 V
Current - Collector Pulsed (Icm): 300 A
Power - Max: 395 W
