Продукція > BRYMEN > Всі товари виробника BRYMEN (32) > Сторінка 1 з 1

Виробник: BRYMEN
Category: Bags & Soft Cases
Description: Cover
Type of test accessories: cover
Related items: BM27

Виробник: BRYMEN
Category: Test Leads - Sets
Description: Test leads; Urated: 1kV; Inom: 10A; red and black
Kit contents: 2x 1m lead with 4mm banana plug - test probe; 2x crocodile clip
Conform to the norm: CAT III 1000V; EN 61010
Colour: red and black
Type of test accessories: test leads
Current rating: 10A
Rated voltage: 1kV

Виробник: BRYMEN
Category: Test Leads - Sets
Description: Test leads; Inom: 10A; probe tip,angular banana plug 4mm; 1m
Type of test accessories: test leads
Length: 1m
Current rating: 10A
Test lead configuration: angular banana plug 4mm; probe tip
Colour: black; red
Conform to the norm: CAT IV 1000V
Wire insulation material: silicone

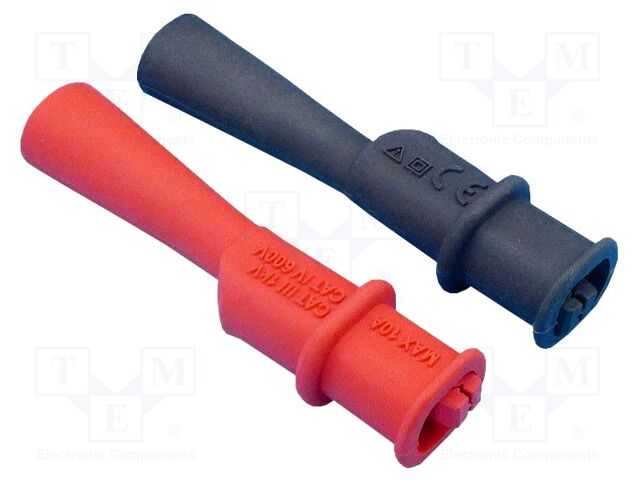

Виробник: BRYMEN
Category: 4mm Banana Plugs
Description: Laboratory connector: 4mm banana; adapter; test lead
Type of lab connector: 4mm banana
Connector: adapter
Related items: BL21S2-T4SC
Application: test lead

Виробник: BRYMEN
Category: Accessories - Others
Description: Fuse; 440mA; 1kV; 10x35mm
Type of test accessories: fuse
Current rating: 0.44A
Rated voltage: 1kV
Dimensions: 10x35mm
Related items: BM521S; BM525S; BM811S; BM815S; BM817S; BM827S; BM829S; BM857S; BM859S; BM867S; BM869S

Виробник: BRYMEN
Category: Accessories - Others
Description: Fuse; 11A; 1kV; 10x38mm
Type of test accessories: fuse
Current rating: 11A
Rated voltage: 1kV
Dimensions: 10x38mm
Related items: BM252S; BM257S; BM319S; BM521S; BM525S; BM805S; BM806S; BM807S; BM811S; BM815S; BM817S; BM827S; BM829S; BM857S; BM859S; BM867S; BM869S; BM878S; BM905S; BM906S; BM907S

Виробник: BRYMEN
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,pincers type; Øcable: 26mm; LCD
Type of meter: multifunction
Kind of display used: LCD
Display parameters: (6000)
True effective value measurement: True RMS
DC voltage measuring range: 0...600V
DC voltage measuring accuracy: ±(1.5% + 5 digit)
AC voltage measuring range: 0...600V
AC voltage measuring accuracy: ±(1.5% + 5 digit)
DC current measuring range: 0...600A
DC current measuring accuracy: ±(2% + 5 digit)
AC current measuring range: 0...600A
AC current measuring accuracy: ±(1.5% + 5 digit)
Resistance measuring range: 600Ω; 6kΩ
Diode test: 3V
Continuity test: acoustic indication; optical indication; 30kΩ...480kΩ
Measurement: AC current; AC voltage; DC current; DC voltage; resistance
Measuring instrument features: AmpTipTM low-current range; contactless voltage detector; CREST: logging of extreme values MAX/MIN; HOLD function; logging of MAX, MIN
Dimensions: 186x66x32mm
Weight with battery: 202g
Standard equipment: case; test leads; user's manual
Sampling: 5x/s
Battery/ rechargeable battery: battery R03 AAA 1,5V x2
Power supply: battery R03 AAA 1,5V x2
Conform to the norm: EN 61326-1
Kind of meter: digital; pincers type
Max. diameter of measured cable: 26mm

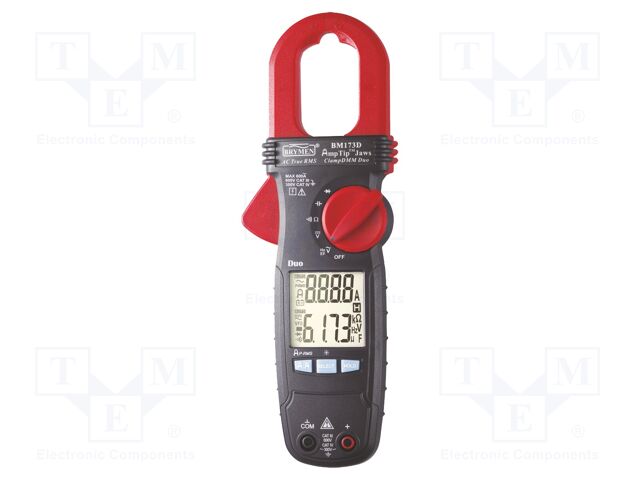

Виробник: BRYMEN
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,pincers type; Øcable: 26mm; LCD
Type of meter: multifunction
Kind of display used: LCD
Display parameters: (6000)
True effective value measurement: True RMS
DC voltage measuring range: 0...600V
DC voltage measuring accuracy: ±(1.5% + 5 digit)
AC voltage measuring range: 0...600V
AC voltage measuring accuracy: ±(1.5% + 5 digit)
DC current measuring range: 0...600A
DC current measuring accuracy: ±(2% + 5 digit)
AC current measuring range: 0...600A
AC current measuring accuracy: ±(1.5% + 5 digit)
Resistance measuring range: 600Ω; 60kΩ; 600kΩ; 6MΩ
Capacitance measuring range: 200µF; 2500µF
Frequency measuring range: 5...999.9Hz
Frequency measuring accuracy: ±(1%+5 digit)
Temperature measuring range: -40...400°C
Diode test: 3V
Continuity test: acoustic indication; optical indication; 30kΩ...480kΩ
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Measuring instrument features: AmpTipTM low-current range; contactless voltage detector; CREST: logging of extreme values MAX/MIN; HOLD function; logging of MAX, MIN
Dimensions: 186x66x32mm
Temperature measurement accuracy: ±(1% + 1°C)
Weight with battery: 202g
Standard equipment: case; K-type temperature probe; test leads; user's manual
Sampling: 5x/s
Battery/ rechargeable battery: battery R03 AAA 1,5V x2
Power supply: battery R03 AAA 1,5V x2
Conform to the norm: EN 61326-1
Kind of meter: digital; pincers type
Max. diameter of measured cable: 26mm

Виробник: BRYMEN
Category: Meters and AC Clamp Probes
Description: Meter: power; pincers type; LCD; True RMS AC; VAC: 100mV÷600V; 224g
Conform to the norm: CAT III 600V; EN 61010
Kind of meter: pincers type
Optional equipment: KITBRUA-13X software; KITRS232E software
Kind of display used: LCD
Type of meter: power
Interface: RS232 (option); USB
True effective value measurement: True RMS AC
Illumination: yes
Apparent power measurement: 0...600kVA
Reactive power measurement: 0...600kVAR
Power factor measurement: 0.01...0.99
Frequency measuring range: 10mHz...5Hz; 500Hz
AC current measuring range: 10mA...40A; 400A; 1kA
Max. diameter of measured cable: 45mm
AC voltage measuring range: 100mV...600V
DC voltage measuring range: 100mV...600V
Resistance measuring range: 100mΩ...999.9Ω
Dimensions: 224x78x40mm
Frequency measuring accuracy: ±(0.5%+4 digit)
AC voltage measuring accuracy: ±(0.5% + 5 digit)
DC voltage measuring accuracy: ±(0.5% + 5 digit)
AC current measuring accuracy: ±(1% + 5 digit)
Resistance measuring accuracy: ±(1%+6 digit)
Pollution degree: 2
Apparent power measuring accuracy: ±(3.5% + 6 digit)
Active power measuring accuracy: ±(4.5% + 6 digit)
Reactive power measuring accuracy: ±(4.5% + 6 digit)
Bandwidth for AC current measurements: 40...500Hz
Bandwidth for AC voltage measurements: 40...500Hz
Weight with battery: 224g
Harmonic content measurement: 0...99,99%
Sampling: 1x/s (Hz); 2x/s
Harmonic content measuring accuracy: ±(1% + 6 digits)
Measurement: AC current; active power; AC voltage; apparent power; DC voltage; energy; frequency; power factor; reactive power; resistance
Continuity test: acoustic indication; 50Ω...250Ω
Measuring instrument features: A-lags-V - indicates nature of measured circuit (inductive or capacitive); automatically selects AAC, VAC, VDC measurement on the basis of measured signal; automatic power-off; autoranging; HOLD function; kWh - measures and records energy consumption in 1- and 3-phase systems with blanced load; PEAK HOLD function for AC measurements; PF - measures total power factor as active to apparent power quotient; THD%-F immediately evaluates harmonic content in measured voltage and current signals
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Power supply: battery LR03 AAA 1,5V x2
Standard equipment: case; test leads

Виробник: BRYMEN
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,pincers type; Øcable: 50mm; LCD
Kind of display used: LCD
True effective value measurement: True RMS
Diode test: 0.4mA @1.6V
DC current measuring range: 0...400A; 800A; 900A; 1kA
Capacitance measuring range: 50nF; 500nF; 5µF; 50µF; 500µF; 3mF
AC current measuring range: 400A; 800A
DC voltage measuring range: 400mV; 4V; 40V; 400V; 600V
AC voltage measuring range: 400mV; 4V; 40V; 400V; 600V
Max. diameter of measured cable: 50mm
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
Dimensions: 227x78x40mm
DC voltage measuring accuracy: ±(0.5% + 3 digit)
Capacitance measuring accuracy: ±(3.5%+ 6 digit)
Resistance measuring accuracy: ±(0.8%+6 digit)
DC current measuring accuracy: ±(1.5% + 4 digit)
AC voltage measuring accuracy: ±(1% + 4 digit)
AC current measuring accuracy: ±(1.5% + 5 digit)
Weight without batteries: 290g
Sampling: 3x/s
Display parameters: 3,75 digit (4000)
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; resistance
Continuity test: acoustic indication; 10Ω...120Ω
Measuring instrument features: auto and manual ranging; HOLD function; MAX function; REL function
Power supply: battery LR03 AAA 1,5V x2
Conform to the norm: CAT III 600V; EN 61010
Kind of meter: digital; pincers type
Type of meter: multifunction

Виробник: BRYMEN
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,pincers type; Øcable: 55mm; LCD
Type of meter: multifunction
Kind of display used: LCD
Display parameters: 3,5 digit (1999); (6000)
Illumination: yes
True effective value measurement: True RMS
DC voltage measuring range: 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.5% + 5 digit)
AC voltage measuring range: 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(1.2% + 5 digit)
DC current measuring range: 200A; 2kA
DC current measuring accuracy: ±(2% + 5 digit)
AC current measuring range: 200A; 2kA
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 40MΩ
Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF; 2mF
Frequency measuring range: 10...1999Hz
Frequency measuring accuracy: ±(0.1%+4 digit)
Diode test: 0.56mA @1.8V
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Interface: USB
Dimensions: 264x43x97mm
Measuring instrument features: auto and manual ranging; automatic power-off; contactless voltage detector; HOLD function; REL function; simultaneously measures voltage and frequency
Standard equipment: drop-like K-type probe; test leads
Max. diameter of measured cable: 55mm
Temperature measurement accuracy: ±(0.3% + 4 digit)
AC current measuring accuracy: ±(2.5% + 5 digit)@(0A...500A); ±(3% + 5 digit)@(500A...2kA)
Weight with battery: 608g
Sampling: 5x/s
Continuity test: acoustic indication; <10Ω
Conform to the norm: CAT IV 1000V; EN 61010
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Power supply: battery LR6 AA 1,5V x2
Kind of meter: digital; pincers type
Temperature measuring range: -50...1000°C

Виробник: BRYMEN
Category: PV and EVSE Testers and Meters
Description: Meter: multifunction; VAC accuracy: ±(1.2%+5digit); 10÷1999Hz
Type of meter: multifunction
Kind of display used: LCD
Display parameters: (6000)
True effective value measurement: True RMS
DC voltage measuring range: 6V; 60V; 600V; 1kV; 1.5kV
DC voltage measuring accuracy: ±(0.5% + 5 digit)
AC voltage measuring range: 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(1.2% + 5 digit)
DC current measuring range: 200A; 2kA
DC current measuring accuracy: ±(2% + 5 digit)
AC current measuring range: 200A; 2kA
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 40MΩ
Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF; 2mF
Frequency measuring range: 10...1999Hz
Frequency measuring accuracy: ±(0.1%+4 digit)
Interface: USB
Dimensions: 264x43x97mm
Measuring instrument features: auto and manual ranging; automatic power-off; contactless voltage detector; HOLD function; REL function; simultaneously measures voltage and frequency
Standard equipment: case; drop-like K-type probe; test leads
Max. diameter of measured cable: 55mm
Temperature measurement accuracy: ±(0.3% + 4 digit)
AC current measuring accuracy: ±(2.5% + 50 digit)@500A; ±(3% + 5 digit)@(500A...2kA)
Weight with battery: 608g
Sampling: 5x/s
Continuity test: acoustic indication; <10Ω
Conform to the norm: CAT IV 1000V; EN 61010
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Power supply: battery LR03 AAA 1,5V x2
Kind of meter: digital; pincers type
Measuring instruments application: for solar panels; photovoltaics
Temperature measuring range: -50...1000°C

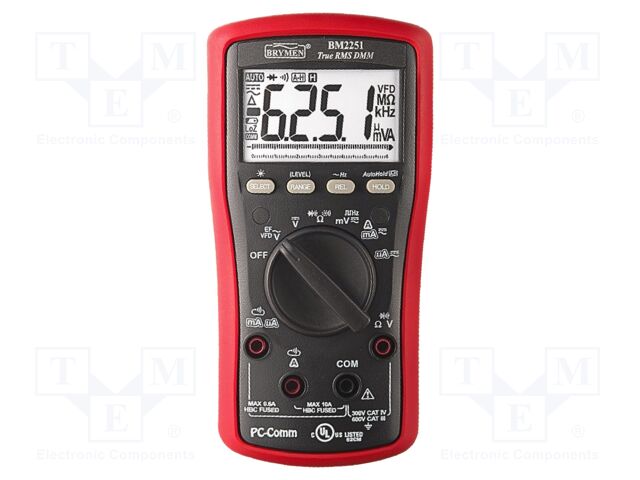

Виробник: BRYMEN
Category: Portable digital multimeters
Description: Digital multimeter; LCD; (6000); Bargraph: 60segm.40x/s; 5x/s
Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010
Type of meter: digital multimeter
Standard equipment: test leads; user's manual
Kind of display used: LCD
True effective value measurement: True RMS AC
Illumination: yes
Diode test: 0.3mA @3V
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
Frequency measuring accuracy: ±(0.03%+3 digit)
DC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V
AC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V
Dimensions (W x H x D): 80x161x50mm
DC voltage measuring accuracy: ±(0.2% + 3 digit) @600V; ±(0.3% + 4 digit) @60mV; ±(0.3% + 4 digit) @600mV; ±(0.3% + 4 digit) @6V; ±(0.4% + 3 digit) @60V
Resistance measuring accuracy: ±(0.5%+4 digit); ±(0.7%+4 digit)@(6MΩ); ±(2%+4 digit)@(60MΩ)
DC current measuring accuracy: ±(0.5% + 5 digit); ±(1% + 5 digit) @6A; ±(1% + 5 digit) @10A
AC voltage measuring accuracy: ±(0.7% + 3 digit); ±(1% + 3 digit)
AC current measuring accuracy: ±(1% + 5 digit)
Pollution degree: 2
Frequency measuring range: 10Hz...200kHz
Bargraph: 60 segm. 40x/s
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Sampling: 5x/s
Display parameters: (6000)
Related items: BMH-01; KITBRUA-20X
Measurement: AC current; AC voltage; DC current; DC voltage; frequency; resistance
Continuity test: acoustic indication; optical indication; 30Ω...480Ω
Measuring instrument features: Autocheck function - automatic selection LoZ DCV, LoZ ACV, i Ω; automatic power-off; contactless voltage detector; HOLD function; indicates incorrect connection of test leads
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Power supply: battery LR03 AAA 1,5V x2

Виробник: BRYMEN
Category: Portable digital multimeters
Description: Digital multimeter; LCD; (6000); Bargraph: 60segm.40x/s; 5x/s
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: (6000)
Illumination: yes
True effective value measurement: True RMS AC
DC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V
DC voltage measuring accuracy: ±(0.2% + 3 digit) @600V; ±(0.3% + 4 digit) @60mV; ±(0.3% + 4 digit) @600mV; ±(0.3% + 4 digit) @6V; ±(0.4% + 3 digit) @60V
AC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V
AC voltage measuring accuracy: ±(0.7% + 3 digit); ±(1% + 3 digit)
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
DC current measuring accuracy: ±(0.5% + 5 digit); ±(1% + 5 digit) @6A; ±(1% + 5 digit) @10A
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Resistance measuring accuracy: ±(0.5%+4 digit); ±(0.7%+4 digit)@(6MΩ); ±(2%+4 digit)@(60MΩ)
Capacitance measuring range: 20nF; 200nF; 2µF; 20µF; 200µF; 2mF; 10mF
Capacitance measuring accuracy: ±(1.5%+ 2 digit); ±(1.5%+8 digit) @ 20nF...200nF; ±(4.5%+10 digit) @ 10mF
Frequency measuring range: 10Hz...200kHz
Frequency measuring accuracy: ±(0.03%+3 digit)
Diode test: 0.3mA @3V
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Bargraph: 60 segm. 40x/s
Measuring instrument features: auto and manual ranging; Autocheck function - automatic selection LoZ DCV, LoZ ACV, i Ω; automatic power-off; contactless voltage detector; CREST: logging of extreme values MAX, MIN and MAX-MIN of voltage and current impulses > 0,8ms; HOLD function; indicates incorrect connection of test leads; logging of MAX, MIN; MIN/MAX/REL function
Standard equipment: K-type temperature probe; test leads; user's manual
Dimensions (W x H x D): 80x161x50mm
Temperature measurement accuracy: ±(0.3% + 3°C) @(100°C...1000°C); ±(1% + 1°C) @(-40°C...99.9°C)
AC current measuring accuracy: ±(1% + 5 digit)
Pollution degree: 2
Sampling: 5x/s
Related items: BMH-01; KITBRUA-20X
Continuity test: acoustic indication; optical indication; 30Ω...480Ω
Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Power supply: battery LR03 AAA 1,5V x2
Temperature measuring range: -40...99.9°C; 100...1000°C

Виробник: BRYMEN
Category: Portable digital multimeters
Description: Digital multimeter; LCD; (6000); 5x/s; VAC: 6V,60V,600V,1kV
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: (6000)
Illumination: yes
True effective value measurement: True RMS
DC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.3% + 2 digit)
AC voltage measuring range: 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(0.7% + 3 digit)
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
DC current measuring accuracy: ±(0.7% + 3 digit)
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Resistance measuring accuracy: ±(0.5%+3 digit)
Capacitance measuring range: 20nF; 200nF; 2µF; 20µF; 200µF; 2mF; 10mF
Diode test: 0.3mA @3V
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; resistance; temperature
Measuring instrument features: auto and manual ranging; Autocheck function - automatic selection LoZ DCV, LoZ ACV, i Ω; automatic power-off; contactless voltage detector; HOLD function; indicates incorrect connection of test leads; logging of MAX, MIN; MIN/MAX/REL function
Standard equipment: holster; K-type temperature probe; test leads
Dimensions (W x H x D): 80x161x50mm
Temperature measurement accuracy: ±(1% + 1°C)
AC current measuring accuracy: ±(1% + 3 digit)
Pollution degree: 2
Weight with battery: 334g
Sampling: 5x/s
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Continuity test: acoustic indication; 30Ω...480Ω
Conform to the norm: CAT II 1000V; CAT III 600V; CAT IV 300V; EN 61010
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Power supply: battery LR03 AAA 1,5V x2
Temperature measuring range: -40...400°C

Виробник: BRYMEN
Category: Car Multimeters
Description: Digital multimeter; LCD; (6000); VDC: 60mV,600mV,6V,60V,600V,1kV
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: (6000)
True effective value measurement: True RMS
DC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.3% + 2 digit)
AC voltage measuring range: 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(0.7% + 3 digit)
DC current measuring range: 6A; 10A
DC current measuring accuracy: ±(0.7% + 3 digit)
AC current measuring range: 6A; 10A
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Resistance measuring accuracy: ±(0.3%+3 digit)
Capacitance measuring range: 2µF; 20µF; 200µF; 2mF; 10mF
Capacitance measuring accuracy: ±(1.5%+ 2 digit)
Frequency measuring range: 10...1kHz
Frequency measuring accuracy: ±(0.03%+2 digit)
Diode test: 3V
Measurement: AC current; AC voltage; continuity; DC current; DC voltage; electric field; frequency; phase sequence; resistance; temperature
Measuring instrument features: auto and manual ranging; Autocheck function - automatic selection LoZ DCV, LoZ ACV, i Ω; automatic power-off; HOLD function; indicates phase sequence; MIN/MAX/AVG function
Standard equipment: crocodile clips; temperature probe; test leads; user's manual
Body dimensions: 80x50x161mm
Temperature measurement accuracy: ±(1% + 1°C)
AC current measuring accuracy: ±(1% + 3 digit)
Pollution degree: 2
Weight with battery: 334g
Sampling: 5x/s
Continuity test: acoustic indication; optical indication
Conform to the norm: CAT II 1000V; CAT III 600V; CAT IV 300V; EN 61010; EN 61326-1
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Power supply: battery LR03 AAA 1,5V x2
Temperature measuring range: -40...400°C

Виробник: BRYMEN
Category: Portable digital multimeters
Description: Digital multimeter; LCD; (6000); VDC: 6V,60V,600V; 10÷30kHz
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: (6000)
DC voltage measuring range: 6V; 60V; 600V
AC voltage measuring range: 6V; 60V; 600V
DC current measuring range: 0.4mA; 2mA
AC current measuring range: 0.4mA; 2mA
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ
Capacitance measuring range: 100nF; 1µF; 10µF; 100µF; 2mF
Frequency measuring range: 10...30kHz
Diode test: 0.48mA @1.6V
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance
Measuring instrument features: automatic power-off; autoranging; contactless voltage detector; permanently connected test leads
Standard equipment: fixed test leads; user's manual
Dimensions (W x H x D): 53x113x10.2mm
Continuity test: acoustic indication; 50Ω...300Ω
Conform to the norm: CAT II 600V; CAT III 300V; EN 61010
Battery/ rechargeable battery: battery CR2032 3V x1
Power supply: battery CR2032 3V x1

Виробник: BRYMEN
Category: Car Multimeters
Description: Digital multimeter; LCD; (6000),3 5/6 digits; True RMS
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: 3 5/6 digits; (6000)
Illumination: yes
True effective value measurement: True RMS
DC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.2% + 2 digit)
AC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(0.7% + 3 digit)
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
DC current measuring accuracy: ±(0.7% + 3 digit)
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Resistance measuring accuracy: ±(0.3%+3 digit)
Capacitance measuring range: 20nF; 200nF; 2µF; 20µF; 200µF; 2mF
Capacitance measuring accuracy: ±(1.5%+ 3 digit)
Frequency measuring range: 10...1000Hz
Frequency measuring accuracy: ±(0.03%+4 digit)
Diode test: 300mA @3V
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature
Measuring instrument features: automatic power-off; contactless voltage detector; CREST: logging of extreme values MAX; double-sided EMI shielding; HOLD function; indicates incorrect connection of test leads; MAX HOLD function; REL function; single-pole contact EF-detection for precise indications of live conductors
Standard equipment: K-type temperature probe; test leads; user's manual
Dimensions (W x H x D): 97x55x198mm
Temperature measurement accuracy: ±(1% + 1°C)
AC current measuring accuracy: ±(1% + 5 digit)
Pollution degree: 2
Sampling: 5x/s
Continuity test: acoustic indication; optical indication; 30Ω...480Ω
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Power supply: battery R03 AAA 1,5V x2
Temperature measuring range: -40...400°C

Виробник: BRYMEN
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 4-5/6 digits (60000); 5x/s; True RMS
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; duty cycle; frequency; resistance
Kind of display used: LCD
Display parameters: 4-5/6 digits (60000)
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.03% + 2 digit)
AC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(0.5% + 30 digit)
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
DC current measuring accuracy: ±(0.075% + 20 digit)
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
AC current measuring accuracy: ±(0.9% + 20 digit)
True effective value measurement: True RMS
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 10nF; 100nF; 1µF; 10µF; 1mF; 10mF
Capacitance measuring accuracy: ±(1%+ 2 digit)
Frequency measuring range: 5...1MHz
Frequency measuring accuracy: ±(0.002%+4 digit)
Resistance measuring accuracy: ±(0.085%+4 digit)
Diode test: 0.35mA @3V
Continuity test: acoustic indication; 100Ω...420Ω
Power supply: battery AAA 1,5V x3
Standard equipment: test leads
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Dimensions (W x H x D): 193x89x51mm
Measuring instrument features: automatic power-off; autoranging; contactless voltage detector; HOLD function; indicates incorrect connection of test leads; measures digital logic level frequencies and duty cycles; MIN/MAX/AVG function; REL function
Pollution degree: 2
Bandwidth for AC current measurements: 40Hz...3kHz
Bandwidth for AC voltage measurements: 50...7000Hz
Sampling: 5x/s
Manufacturer series: BM780
Bargraph: yes

Виробник: BRYMEN
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 4-5/6 digits (60000); 5x/s; True RMS
Power supply: battery AAA 1,5V x3
Manufacturer series: BM780
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Type of meter: digital multimeter
Standard equipment: K-type temperature probe; test leads
Kind of display used: LCD
True effective value measurement: True RMS
Bargraph: yes
Temperature measuring range: -200...1090°C
Capacitance measuring range: 10nF; 100nF; 1µF; 10µF; 1mF; 10mF
Diode test: 0.35mA @3V
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
Frequency measuring accuracy: ±(0.002%+4 digit)
DC voltage measuring accuracy: ±(0.03% + 2 digit)
DC current measuring accuracy: ±(0.075% + 20 digit)
Resistance measuring accuracy: ±(0.085%+4 digit)
Dimensions (W x H x D): 193x89x51mm
AC voltage measuring accuracy: ±(0.5% + 30 digit)
AC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
AC current measuring accuracy: ±(0.9% + 20 digit)
Temperature measurement accuracy: ±(1% + 1°C)
Capacitance measuring accuracy: ±(1%+ 2 digit)
Pollution degree: 2
Bandwidth for AC current measurements: 40Hz...3kHz
Bandwidth for AC voltage measurements: 50Hz...100kHz
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Display parameters: 4-5/6 digits (60000)
Frequency measuring range: 5...1MHz
Sampling: 5x/s
Measurement: AC current; AC voltage; capacitance; continuity; dBm; DC current; DC voltage; duty cycle; frequency; resistance; temperature
Continuity test: acoustic indication; 100Ω...420Ω
Measuring instrument features: automatic power-off; autoranging; contactless voltage detector; HOLD function; indicates incorrect connection of test leads; low input impedance function (LoZ); measures current loop signals 4-20mA; measures digital logic level frequencies and duty cycles; MIN/MAX/AVG function; REL function

Виробник: BRYMEN
Category: Accessories - Others
Description: Fuse; 11A
Type of test accessories: fuse
Current rating: 11A
Related items: BM817CFA

Виробник: BRYMEN
Category: Portable digital multimeters
Description: Digital multimeter; RS232; LCD; (5000); Bargraph: 52segm.60x/s
Interface: RS232
Battery/ rechargeable battery: battery 6LR61 9V x1
Power supply: battery 6LR61 9V x1
Type of meter: digital multimeter
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Kind of display used: LCD
True effective value measurement: True RMS
Bargraph: 52 segm. 60x/s
Illumination: yes
Temperature measuring range: -50...1000°C
Capacitance measuring range: 50nF; 500nF; 5µF; 50µF; 500µF; 9.999mF
AC current measuring range: 500µA; 5mA; 50mA; 0.5A; 5A; 10A
DC current measuring range: 0.5mA; 5mA; 50mA; 500mA; 5A; 10A
AC voltage measuring range: 50mV; 500mV; 5V; 50V; 500V; 1kV
DC voltage measuring range: 50mV; 500mV; 5V; 50V; 500V; 1kV
Diode test: 0.4mA @3.5V
Resistance measuring range: 50Ω; 500Ω; 5kΩ; 50kΩ; 500kΩ; 5MΩ; 50MΩ
Frequency measuring range: 10...125kHz
Frequency measuring accuracy: ±(0.01%+2 digit)
DC voltage measuring accuracy: ±(0.08% + 2 digit)
Resistance measuring accuracy: ±(0.1%+2 digit)
DC current measuring accuracy: ±(0.2% + 4 digit)
Dimensions (W x H x D): 98x198x55mm
Temperature measurement accuracy: ±(0.3% + 3 digit)
AC voltage measuring accuracy: ±(1% + 4 digit)
AC current measuring accuracy: ±(0.6% + 3 digit)
Capacitance measuring accuracy: ±(2.5%+ 3 digit)
Pollution degree: 2
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Sampling: 5x/s
Standard equipment: holster; temperature probe; test leads; user's manual
Display parameters: (5000)
Measuring instrument features: auto and manual ranging; automatic power-off; CREST: logging of extreme values MAX; HOLD function; MIN/MAX function
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Continuity test: acoustic indication; 20Ω...200Ω

Виробник: BRYMEN
Category: Car Multimeters
Description: Digital multimeter; LCD; (6000); Bargraph: 61segm.40x/s; True RMS
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: (6000)
Illumination: yes
True effective value measurement: True RMS
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.09% + 1 digit)
AC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(0.5% + 3 digit)
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
DC current measuring accuracy: ±(0.36% + 2 digit)
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 10A
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Resistance measuring accuracy: ±(0.3%+1 digit)
Capacitance measuring range: 20nF; 200nF; 2µF; 20µF; 200µF; 2mF; 20mF
Capacitance measuring accuracy: ±(1%+ 2 digit)
Frequency measuring range: 6...440kHz
Frequency measuring accuracy: ±(0.01%+4 digit)
Diode test: 2.7V
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance
Bargraph: 61 segm. 40x/s
Measuring instrument features: auto and manual ranging; CREST: logging of extreme values MAX/MIN; HOLD function; impact resistant holster; indicates incorrect connection of test leads; MIN/MAX function
Standard equipment: holster; test leads; user's manual
Body dimensions: 208x103x64.5mm
AC current measuring accuracy: ±(1.2% + 2 digit)
Weight with battery: 635g
Sampling: 5x/s
Continuity test: acoustic indication; optical indication
Conform to the norm: EN 61326-1
Battery/ rechargeable battery: battery LR6 AA 1,5V x4
Power supply: battery LR6 AA 1,5V x4

Виробник: BRYMEN
Category: Accessories - Others
Description: Fuse; 15A; 600V
Related items: BM338; BM837
Type of test accessories: fuse
Current rating: 15A
Rated voltage: 0.6kV

Виробник: BRYMEN
Category: Portable digital multimeters
Description: Digital multimeter; RS232; LCD; (50000); Bargraph: 42segm.60x/s
Interface: RS232
Battery/ rechargeable battery: battery 6LR61 9V x1
Power supply: battery 6LR61 9V x1
Type of meter: digital multimeter
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Kind of display used: LCD
True effective value measurement: True RMS
Bargraph: 42 segm. 60x/s
Measures 4-20mA current loop: 0...100%
Capacitance measuring range: 50nF; 500nF; 5µF; 50µF; 500µF; 9.999mF
AC current measuring range: 500µA; 5mA; 50mA; 0.5A; 5A; 10A; (20A <30s)
DC current measuring range: 0.5mA; 5mA; 50mA; 500mA; 5A; 10A; 20A < 30s
AC voltage measuring range: 500mV; 5V; 50V; 500V; 1kV
DC voltage measuring range: 500mV; 5V; 50V; 500V; 1kV
Diode test: 0.8mA @3.5V
Resistance measuring range: 500Ω; 5kΩ; 50kΩ; 500kΩ; 5MΩ; 50MΩ
Frequency measuring range: 5Hz...2MHz; 10...200kHz
Frequency measuring accuracy: ±(0.002%+4 digit)
Duty cycle factor: 0.1...99.9%
DC voltage measuring accuracy: ±(0.03% + 2 digit)
Resistance measuring accuracy: ±(0.1%+6 digit)
DC current measuring accuracy: ±(0.1% + 20 digit)
Dimensions (W x H x D): 97x198x55mm
AC voltage measuring accuracy: ±(0.8% + 40 digit)
AC current measuring accuracy: ±(1% + 40 digit)
Capacitance measuring accuracy: ±(2%+ 3 digit)
Weight with battery: 500g
Duty cycle factor measurement accuracy: 3d/kHz + 2 digits
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; duty cycle; frequency; resistance
Sampling: 5x/s
Standard equipment: holster; test leads
Display parameters: (50000)
Measuring instrument features: auto and manual ranging; automatic power-off; CREST: logging of extreme values MAX, MIN and MAX-MIN of voltage and current impulses > 0,8ms; HOLD function; impact resistant holster; indicates incorrect connection of test leads; logging of MAX, MIN, MAX-MIN values; mains filter 50/60Hz; MIN/MAX/REL function; overload protection; test of 4-20mA current loops in control systems
Optional equipment: KITBRUA-85XA software
Continuity test: acoustic indication; 20Ω...200Ω

Виробник: BRYMEN
Category: Portable digital multimeters
Description: Digital multimeter; RS232; LCD; (50000); Bargraph: 42segm.60x/s
Interface: RS232
Battery/ rechargeable battery: battery 6F22 9V x1
Power supply: battery 6F22 9V x1
Type of meter: digital multimeter
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Kind of display used: LCD
True effective value measurement: True RMS
Bargraph: 42 segm. 60x/s
Measures 4-20mA current loop: 0...100%
Capacitance measuring range: 50nF; 500nF; 5µF; 50µF; 500µF; 9.999mF
AC current measuring range: 500µA; 5mA; 50mA; 0.5A; 5A; 10A; (20A <30s)
DC current measuring range: 0.5mA; 5mA; 50mA; 500mA; 5A; 10A; 20A < 30s
AC voltage measuring range: 500mV; 5V; 50V; 500V; 1kV
DC voltage measuring range: 500mV; 5V; 50V; 500V; 1kV
Diode test: 0.8mA @3.5V
Resistance measuring range: 500Ω; 5kΩ; 50kΩ; 500kΩ; 5MΩ; 50MΩ
Frequency measuring range: 5Hz...2MHz; 10...200kHz
Frequency measuring accuracy: ±(0.002%+4 digit)
Duty cycle factor: 0.1...99.9%
DC voltage measuring accuracy: ±(0.03% + 2 digit)
Resistance measuring accuracy: ±(0.1%+6 digit)
DC current measuring accuracy: ±(0.1% + 20 digit)
Dimensions (W x H x D): 97x198x55mm
AC voltage measuring accuracy: ±(0.8% + 40 digit)
AC current measuring accuracy: ±(1% + 40 digit)
Capacitance measuring accuracy: ±(2%+ 3 digit)
Weight with battery: 500g
Duty cycle factor measurement accuracy: 3d/kHz + 2 digits
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; duty cycle; frequency; resistance
Sampling: 5x/s
Standard equipment: holster; test leads
Display parameters: (50000)
Measuring instrument features: auto and manual ranging; automatic power-off; CREST: logging of extreme values MAX, MIN and MAX-MIN of voltage and current impulses > 0,8ms; HOLD function; impact resistant holster; indicates incorrect connection of test leads; logging of MAX, MIN, MAX-MIN values; mains filter 50/60Hz; MIN/MAX/REL function; overload protection; test of 4-20mA current loops in control systems
Optional equipment: KITBRUA-85XA software
Continuity test: acoustic indication; 20Ω...200Ω

Виробник: BRYMEN
Category: Portable digital multimeters
Description: Digital multimeter; RS232; LCD; (50000); Bargraph: 42segm.60x/s
Interface: RS232
Protection: anti-overload OPP
Battery/ rechargeable battery: battery 6LR61 9V x1
Power supply: battery 6LR61 9V x1
Type of meter: digital multimeter
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Kind of display used: LCD
True effective value measurement: True RMS AC
Bargraph: 42 segm. 60x/s
Temperature measuring range: -50...1000°C
Measures dBm: -11.76...54.25dBm
Measures 4-20mA current loop: 0...100%
Capacitance measuring range: 10pF...50nF; 500nF; 5µF; 50µF; 500µF; 9.999mF
AC current measuring range: 0.01...500µA; 5mA; 50mA; 0.5A; 5A; 10A; (20A <30s)
DC current measuring range: 10nA...500µA; 5mA; 50mA; 500mA; 5A; 10A; 20A < 30s
AC voltage measuring range: 0.001...500mV; 5V; 50V; 500V; 1kV
DC voltage measuring range: 0.001...500mV; 5V; 50V; 500V; 1kV
Diode test: 0.8mA @3.5V
Resistance measuring range: 10mΩ...500Ω; 5kΩ; 50kΩ; 500kΩ; 5MΩ; 50MΩ
Frequency measuring range: 5Hz...2MHz; 10...200kHz
Frequency measuring accuracy: ±(0.002%+4 digit)
Duty cycle factor: 0.1...99.9%
DC voltage measuring accuracy: ±(0.04% + 2 digit)
Resistance measuring accuracy: ±(0.07%+2 digit)
DC current measuring accuracy: ±(0.1% + 20 digit)
Dimensions (W x H x D): 97x198x55mm
Temperature measurement accuracy: ±(0.3% + 1 digit)
AC voltage measuring accuracy: ±(0.8% + 20 digit)
AC current measuring accuracy: ±(0.7% + 50 digit)
Capacitance measuring accuracy: ±(0.8%+ 3 digit)
Weight with battery: 260g
Duty cycle factor measurement accuracy: 3d/kHz + 2 digits
Measurement: 4-20mA current loop; AC current; AC voltage; capacitance; DC current; DC voltage; differential temperature; duty cycle; frequency; resistance; temperature
Sampling: 5x/s
Standard equipment: holster; temperature probe; test leads
Display parameters: (50000)
Measuring instrument features: automatic power-off; HOLD function; holster and splashproof enclosure made of non-flammable plastic; MIN/MAX, MAX-MIN, MEAN function; REL function
Optional equipment: KITBRUA-85XA software
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Continuity test: acoustic indication; <20Ω

Виробник: BRYMEN
Category: Portable digital multimeters
Description: Digital multimeter; USB; LCD; Bargraph: 41segm.60x/s; 5x/s
Interface: USB
Battery/ rechargeable battery: battery 6LR61 9V x1
Power supply: battery 6LR61 9V x1
Type of meter: digital multimeter
Conform to the norm: CAT IV 1000V; EN 61010
Kind of display used: LCD
True effective value measurement: True RMS AC; True RMS AC+DC
Kind of output connector: USB A plug
Bargraph: 41 segm. 60x/s
Illumination: yes
Measures 4-20mA current loop: 0...100%
Capacitance measuring range: 10pF...50nF; 500nF; 5µF; 50µF; 500µF; 5mF; 25mF
AC current measuring range: 0.01...500µA; 5mA; 50mA; 0.5A; 5A; 10A
DC current measuring range: 10nA...500µA; 5mA; 50mA; 500mA; 5A; 10A
AC voltage measuring range: 10µV...500mV; 5V; 50V; 500V; 1kV
DC voltage measuring range: 10µV...500mV; 5V; 50V; 500V; 1kV
Diode test: 0.4mA @2V
Resistance measuring range: 10mΩ...500Ω; 5kΩ; 50kΩ; 500kΩ; 5MΩ; 50MΩ
Frequency measuring range: 10...200kHz
Frequency measuring accuracy: ±(0.02%+4 digit)
Duty cycle factor: 0.1...99.99%
DC voltage measuring accuracy: ±(0.03% + 2 digit)
Resistance measuring accuracy: ±(0.1%+6 digit)
DC current measuring accuracy: ±(0.1% + 20 digit)
Dimensions (W x H x D): 103x208x64.5mm
AC voltage measuring accuracy: ±(0.8% + 60 digit)
AC current measuring accuracy: ±(1% + 40 digit)
Capacitance measuring accuracy: ±(2.5%+ 3 digit)
Pollution degree: 2
Weight with battery: 635g
Measurement: AC current; AC voltage; capacitance; conductance; dBm; DC current; DC voltage; frequency; relative; resistance
Sampling: 5x/s
Standard equipment: holster; test leads
Measuring instrument features: auto and manual ranging; automatic power-off; CREST: logging of extreme values MAX, MIN and MAX-MIN of voltage and current impulses > 0,8ms; HOLD function; indicates incorrect connection of test leads; logging of MAX, MIN, AVG
Optional equipment: KITBU-86X software
Continuity test: acoustic indication; 20Ω...200Ω

Виробник: BRYMEN
Category: Portable digital multimeters
Description: Digital multimeter; USB; LCD; Bargraph: 41segm.60x/s; 5x/s
Interface: USB
Battery/ rechargeable battery: battery 6LR61 9V x1
Power supply: battery 6LR61 9V x1
Type of meter: digital multimeter
Conform to the norm: CAT IV 1000V; EN 61010
Kind of display used: LCD
True effective value measurement: True RMS AC; True RMS AC+DC
Kind of output connector: USB A plug
Bargraph: 41 segm. 60x/s
Illumination: yes
Temperature measuring range: -50...1000°C
Measures 4-20mA current loop: 0...100%
Capacitance measuring range: 10pF...50nF; 500nF; 5µF; 50µF; 500µF; 5mF; 25mF
AC current measuring range: 0.01...500µA; 5mA; 50mA; 0.5A; 5A; 10A
DC current measuring range: 10nA...500µA; 5mA; 50mA; 500mA; 5A; 10A
AC voltage measuring range: 10µV...500mV; 5V; 50V; 500V; 1kV
DC voltage measuring range: 10µV...500mV; 5V; 50V; 500V; 1kV
Diode test: 0.4mA @2V
Resistance measuring range: 10mΩ...500Ω; 5kΩ; 50kΩ; 500kΩ; 5MΩ; 50MΩ
Frequency measuring range: 10...200kHz
Frequency measuring accuracy: ±(0.02%+4 digit)
Duty cycle factor: 0.1...99.99%
DC voltage measuring accuracy: ±(0.02% + 2 digit)
Resistance measuring accuracy: ±(0.1%+2 digit)
DC current measuring accuracy: ±(0.1% + 20 digit)
Dimensions (W x H x D): 103x208x64.5mm
Temperature measurement accuracy: ±(0.3% + 1.5°C)
AC voltage measuring accuracy: ±(0.4% + 30 digit)
AC current measuring accuracy: ±(0.7% + 50 digit)
Capacitance measuring accuracy: ±(2.5%+ 3 digit)
Pollution degree: 2
Weight with battery: 635g
Measurement: AC current; AC voltage; capacitance; conductance; dBm; DC current; DC voltage; frequency; relative; resistance; temperature
Sampling: 5x/s
Standard equipment: drop-like K-type probe with banana clips; holster; test leads
Measuring instrument features: AC VFD feature provides measurement of AC voltage and frequency at the same time; auto and manual ranging; automatic power-off; CREST: logging of extreme values MAX, MIN and MAX-MIN of voltage and current impulses > 0,8ms; HOLD function; indicates incorrect connection of test leads; logging of MAX, MIN, AVG
Optional equipment: KITBU-86X software
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Continuity test: acoustic indication; 20Ω...200Ω

Виробник: BRYMEN
Category: Accessories - Others
Description: Magnetic hold
Type of test accessories: magnetic hold
Related items: BM257; BM525; BM829; BM867; BM869

Виробник: BRYMEN
Category: Accessories - Others
Description: Magnetic holder; black
Type of test accessories: magnetic holder
Related items: BM785; BM789
Colour: black

Виробник: BRYMEN
Category: Bags & Soft Cases
Description: Cover; 210x115x50mm; black,red
Type of test accessories: cover
Related items: BM785; BM789
Dimensions: 210x115x50mm
Colour: black; red
